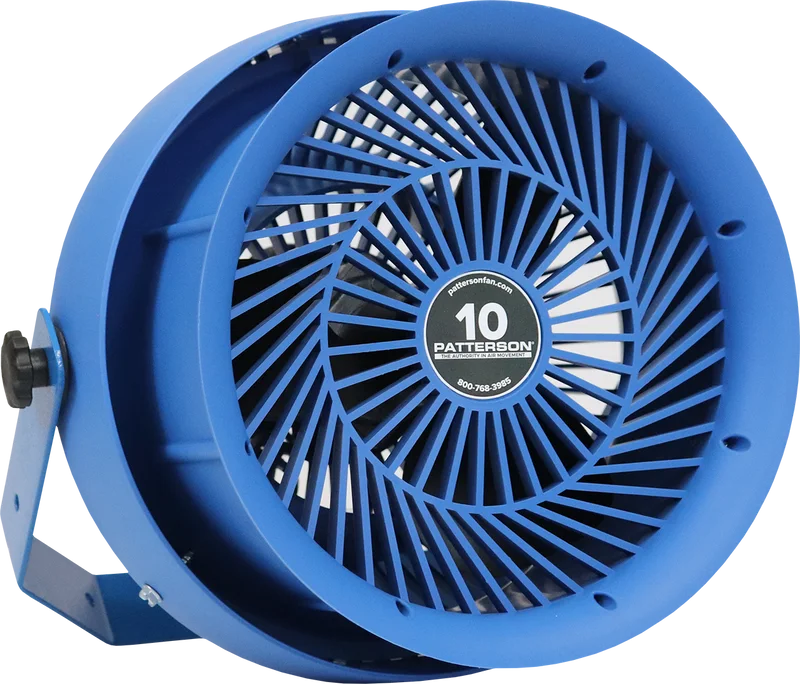

Patterson F10A 10" high-velocity workstation fan
A compact 10" Patterson fan on a standard 115V outlet. The totally enclosed 2-speed motor throws air about 40 ft, which suits trim and processing stations, drying-room corners and short racks where a full-size fan would be too much.
- 40 ft
- Air throw
- 5 ft
- Air throw width
- 115V
- Single phase, 9 ft cord
- 2-speed
- Totally enclosed motor
- 1 year
- Warranty
F10A specifications
| Model | F10A |
|---|---|
| Propeller | 10" diameter |
| Input | 115V single phase |
| Rated amps | 0.8 A high / 0.7 A low |
| Motor | 2-speed, totally enclosed |
| Air throw | 40 ft long × 5 ft wide |
| Sound | 56.5 dB high / 55.7 dB low @ 20 ft |
| Dimensions | 15.625" W × 13" D |
| Inlet / outlet | High-impact polypropylene |
| Finger guards | OSHA compliant |
| Power cord | 9 ft |
| Duty cycle | Continuous |
| Shipping weight | 12 lbs (yoke mount) |
| Warranty | 1 year |
Mounts that fit
- RM 10Rack mount, 12" arm, for hanging the F10A from racking or shelving.
Where the F10A works best
- Trim, packing and processing stations
- Corners of drying and curing rooms
- Short racks and shelving with the RM 10 rack mount
Common questions
Does the F10A need special wiring?
No. It runs on 115V single phase from a standard outlet on its 9 ft cord, drawing 0.8 A on high and 0.7 A on low.
Can it hang from a rack?
Yes. The RM 10 rack mount hangs it from racking or shelving with a 12" arm. The yoke mount ships standard.
When should I step up to a bigger fan?
When you need air to travel more than about 40 ft or cover a full room. The 14" high-velocity fan throws 60 ft and covers about 1,800 ft².
Documentation
Specifications from Patterson Fan Co. and subject to change by the manufacturer.
