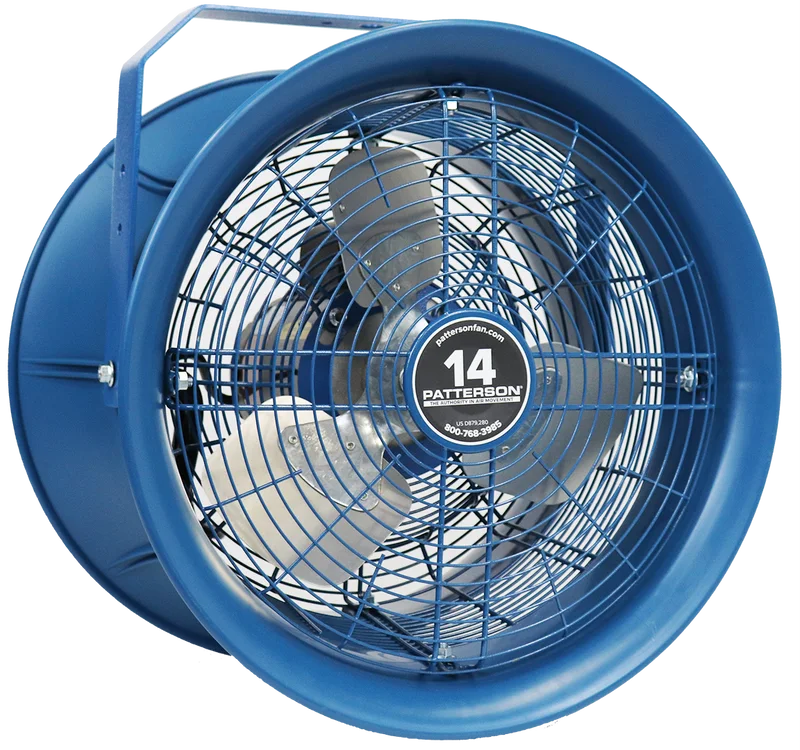

14" High-Velocity
2,600 CFM · 60 ft throw · ~1,800 ft²
- H14A
- H14B
- H14B-INV
Home / Automation System, Climate & Air Quality / Patterson Fans

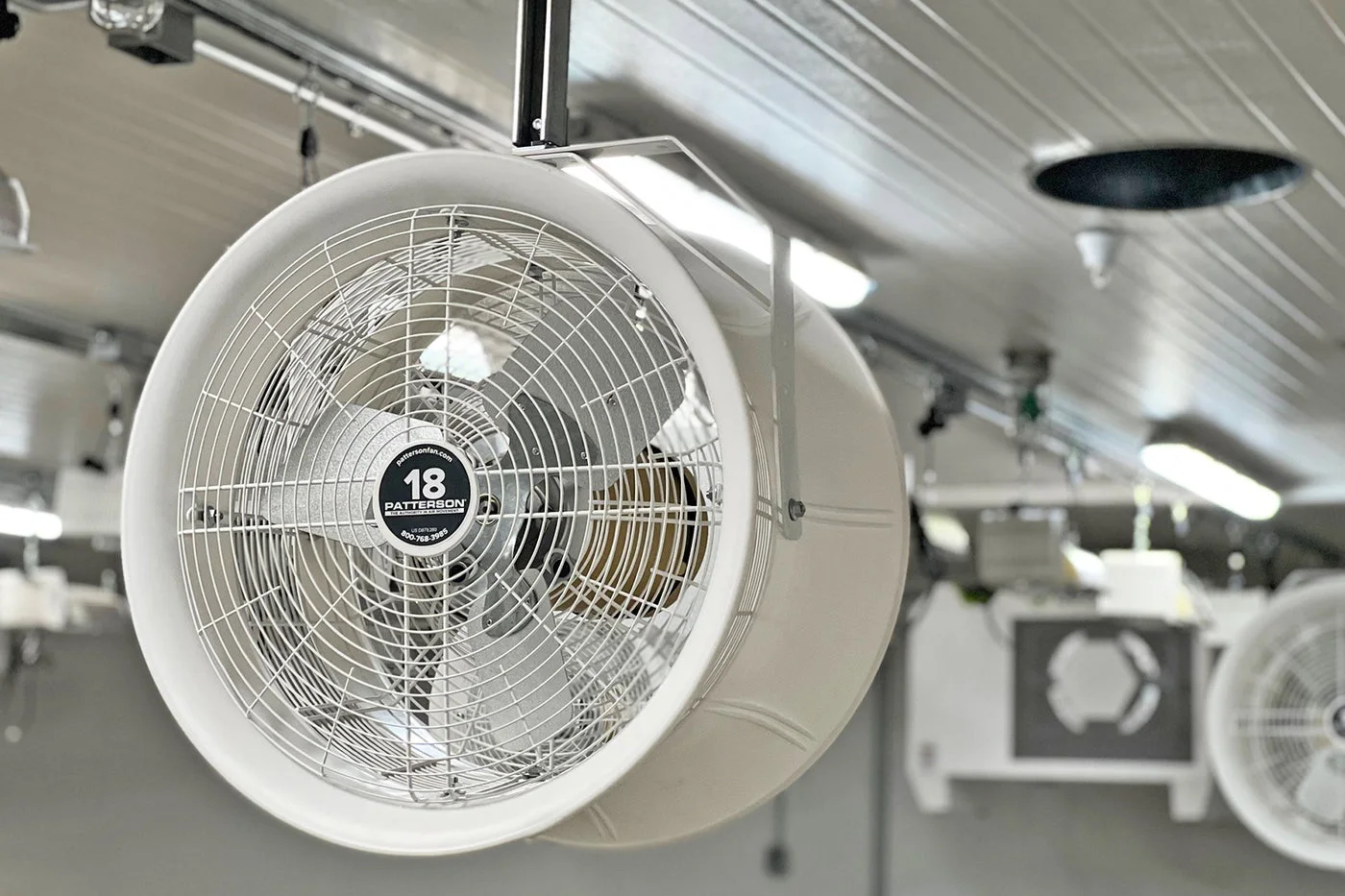

Air movement that reaches every bench in the room.
Patterson high-velocity fans push a tight column of air across the canopy, through the rows and under the racks, so a grow room holds even temperature and humidity instead of pockets of still, wet air. Hydro Supply Co. carries the indoor-grow line: high-velocity fans from 10" to 30", EC variable-speed fans, inverter-duty fans with VFDs, and the mounts to hang them where the air is needed.
- 2,600–12,000
- CFM per fan, 14" to 30"
- Up to 200 ft
- Air throw distance
- 1,800–12,000 ft²
- Coverage per fan
- 115–277V
- EC motors adapt to line voltage
- 2 years
- Warranty, 14"–30" fans
Pick the throw, then the motor.
Every high-velocity fan ships with the standard yoke mount, a galvanized aluminum propeller, OSHA-compliant spiral-wound steel guards and a totally enclosed, air-over motor rated for continuous duty. Size sets the reach; the motor sets the power supply and speed control.

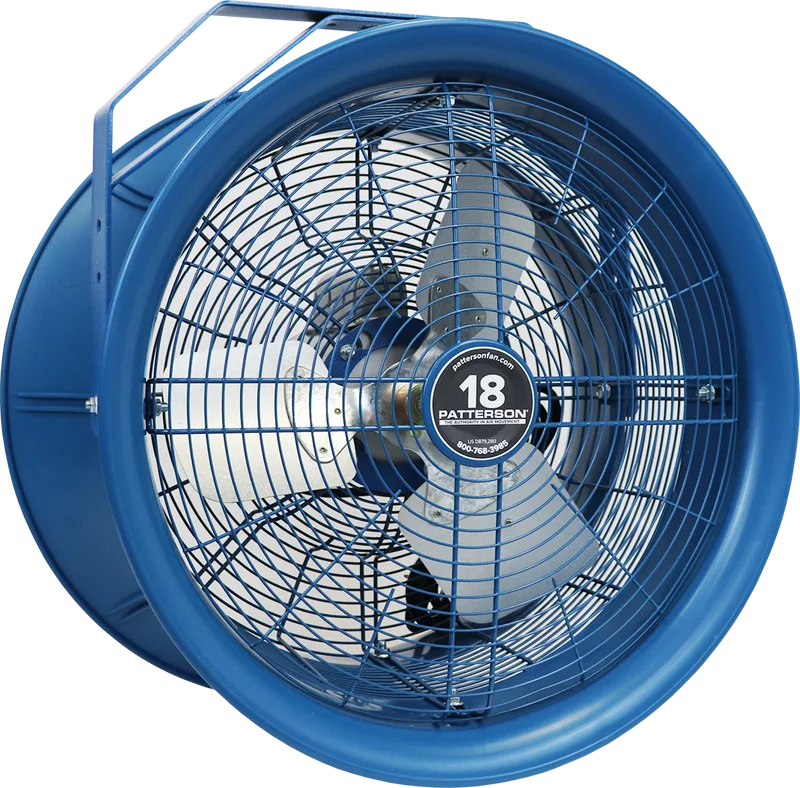

18" High-Velocity
3,800 CFM · 80 ft throw · ~2,700 ft²
- H18A
- H18B
- H18B-INV

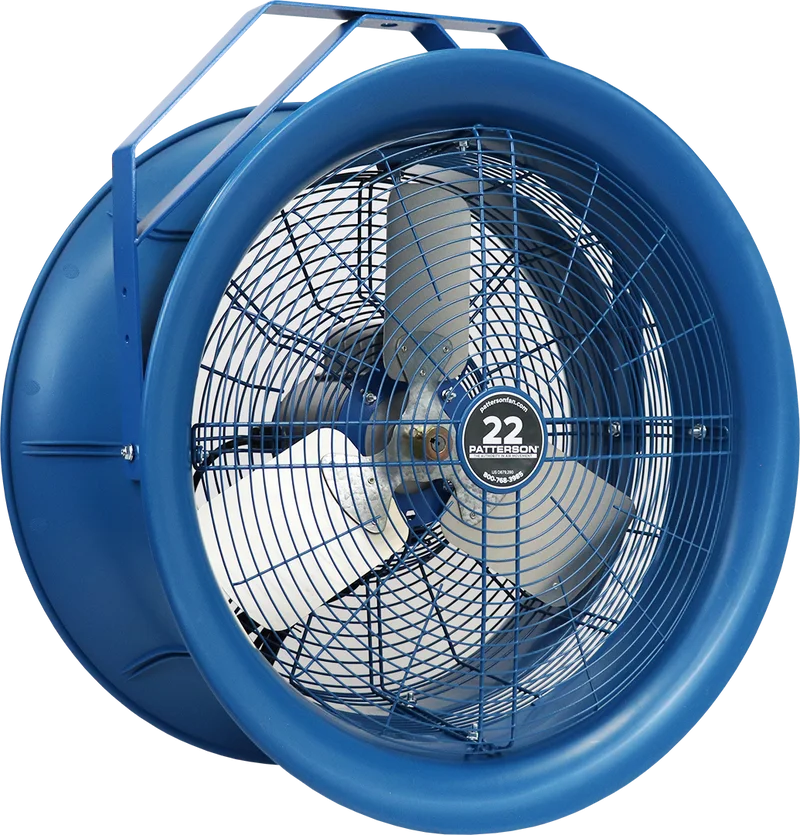

22" High-Velocity
5,570 CFM · 100 ft throw · ~3,600 ft²
- H22A
- H22B
- H22B-INV

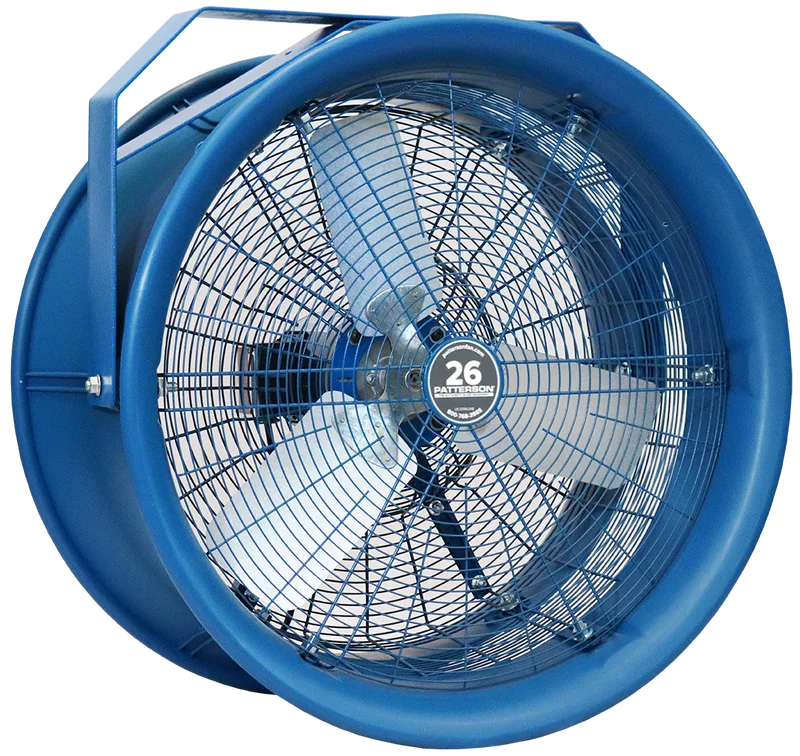

26" High-Velocity
7,650 CFM · 150 ft throw · ~6,100 ft²
- H26B-INV

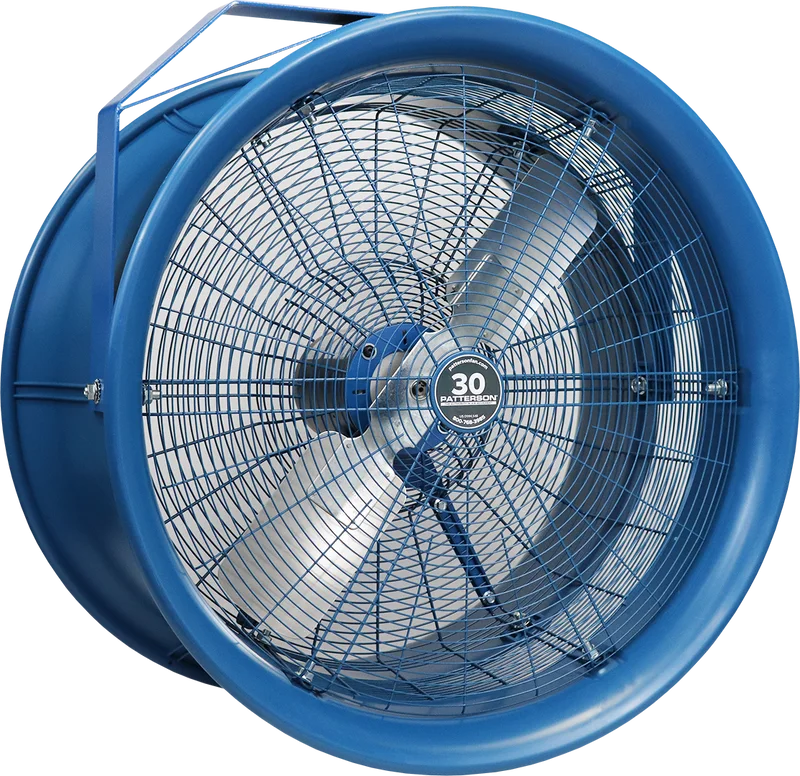

30" High-Velocity
12,000 CFM · 200 ft throw · ~12,000 ft²
- H30B-INV-W
A
Single phase, corded
115V or 208–230V single phase with a 12 ft cord. 1/4 HP on the 14", 1/2 HP on the 18" and 22". Plug in and run.
B
Three phase, hard-wired
208–230V or 460V three phase for rooms wired for commercial power. 1/4 HP on the 14", 1/2 HP on the 18" and 22".
INV
Inverter-duty, three phase
230/460V three-phase motors built to run from a variable frequency drive, so a whole bank of fans can be slowed or sped up together. 1/2 HP on 14"–22", 1 HP on 26" and 30".
| Size | CFM | Throw | Coverage | RPM | Sound @ 20 ft | Ship weight |
|---|---|---|---|---|---|---|
| 14" | 2,600 | 60 ft | 1,800 ft² | 1,725 | 63.1 dB | 35 lbs |
| 18" | 3,800 | 80 ft | 2,700 ft² | 1,725 | 65.1 dB | 44 lbs |
| 22" | 5,570 | 100 ft | 3,600 ft² | 1,725 | 66.5 dB | 49 lbs |
| 26" | 7,650 | 150 ft | 6,100 ft² | 1,800 | 80.8 dB | 85 lbs |
| 30" | 12,000 | 200 ft | 12,000 ft² | 1,800 | 82.2 dB | 99 lbs |
EC Variable-Speed Fans · White
Set the airspeed to the crop, not the motor.
The same 14", 18" and 22" high-velocity fans with an electronically commutated (EC) motor and a white finish. Speed runs anywhere from 300 to 1,800 RPM, so you can run gentle air over clones and young plants and turn it up as the canopy fills in.
- Auto-adapts to 115–277V single phase, 50/60 Hz
- Speed control by potentiometer, 0–10 VDC, 4–20 mA, PWM or MODBUS
- Built-in protection: over-current, thermal, locked rotor, over- and under-voltage
- Integrated drive, no separate control panel needed
- Pair with the Symax controller (12060) for a simple speed dial
E14S-W-9010 14" · 2,600 CFM
E18-W-9010 18" · 3,800 CFM
E22-W-9010 22" · 5,570 CFM

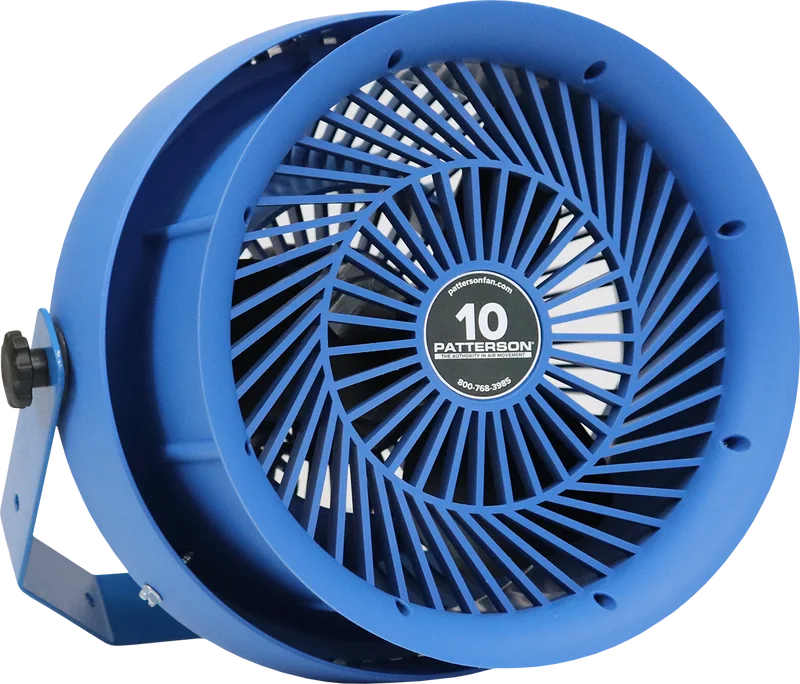

Workstation Fan
F10A — 10" high-velocity, 2-speed
A compact 115V fan with a totally enclosed 2-speed motor and a 40 ft air throw. Sized for trim and processing stations, drying-room corners and short racks where a full-size fan would be too much.
- 115V single phase, 0.8/0.7 A (high/low)
- Yoke mount standard; rack mount RM 10 available
- 1-year warranty
Hang the fan where the air needs to go.

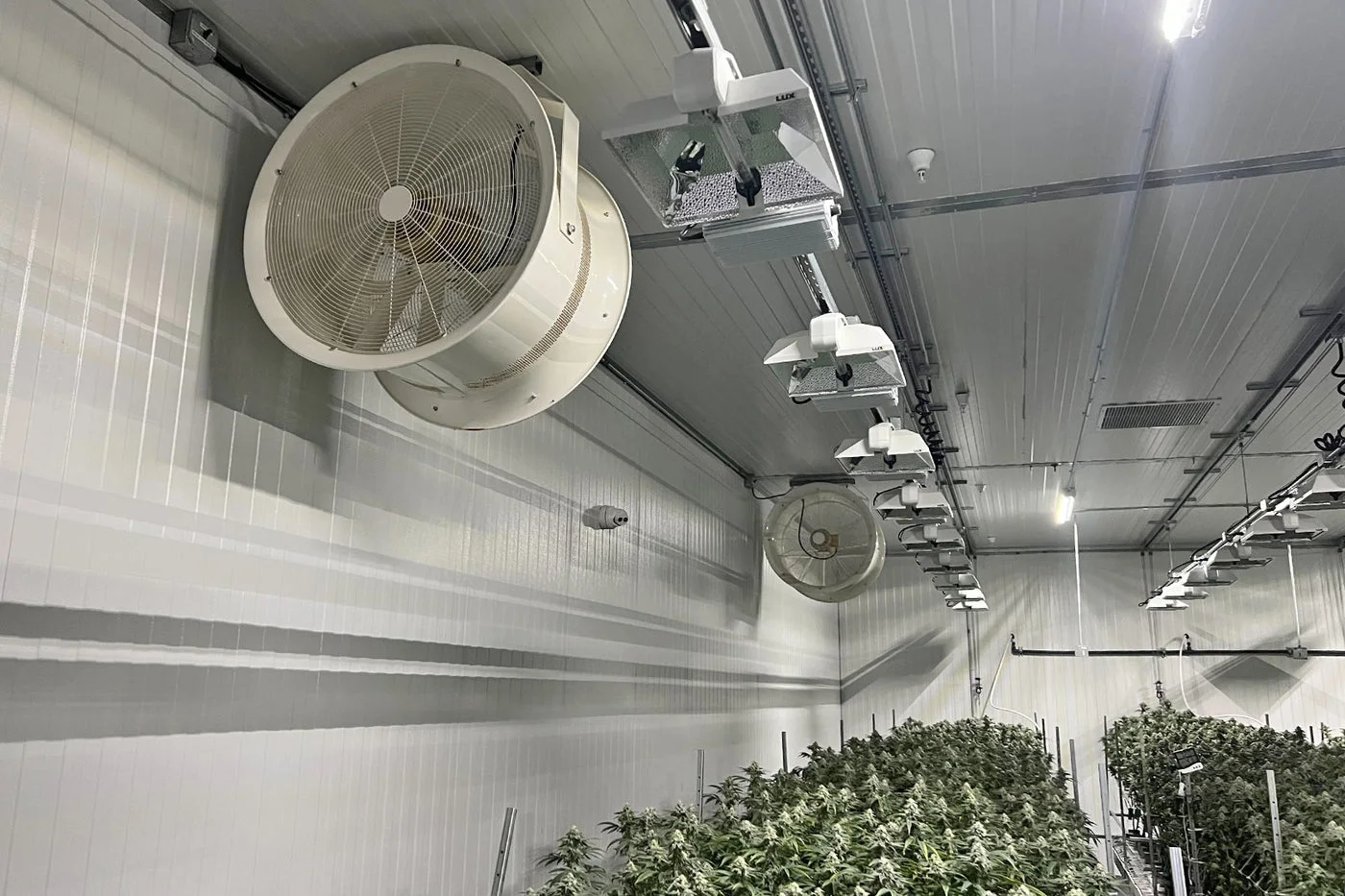

The yoke ships with every fan. Rack mounts hang a fan off racking or shelving to clear the canopy; the beam clamp grips a structural beam or truss without drilling.

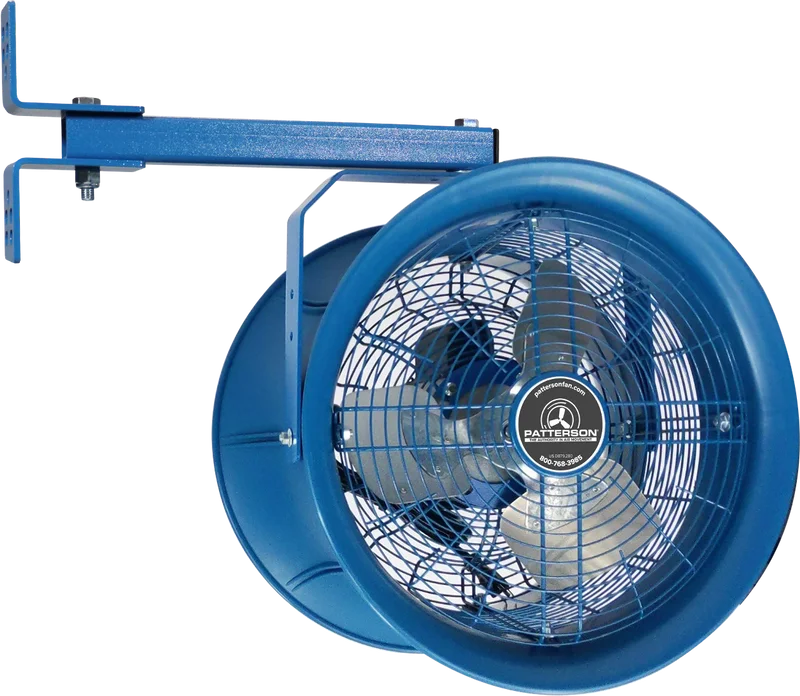

Rack Mounts
Arm lengths matched to the fan size.
- RM 10 10" fans · 12" arm
- RM 14 14" fans · 14½" arm
- RM 18-22 WHITE 18"–22" fans · 19" arm, white
- RM 26-30 WHITE 26"–30" fans · 21" arm
- RM DB DB low-profile fan · 21" arm

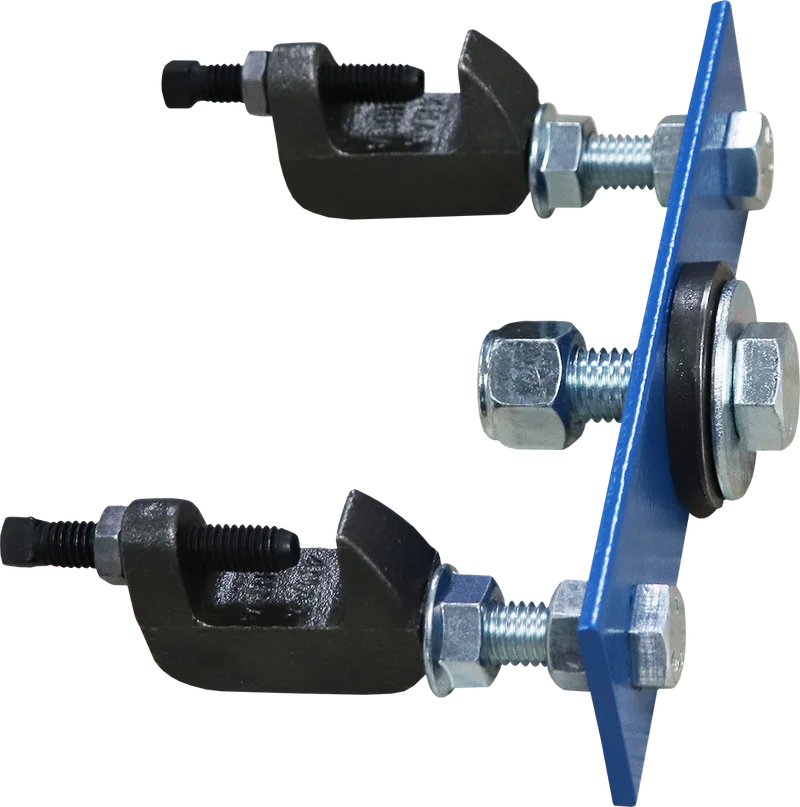

Beam Clamp · BC
Clamps 14"–30" fans to beams and trusses.
Mounting Pole · POLE 1'
1 ft mounting pole for dropping a fan below a beam or ceiling mount.
All mounting options (PDF) →Speed control for the whole room.
EC fans take the Symax controller. Inverter-duty (INV) fans run from a variable frequency drive, sized to the total horsepower on the drive and to the facility's input power.
| SKU | Product | Input power | Use with |
|---|---|---|---|
| 12060 | Symax speed controller | — | EC variable-speed fans |
| 12043 | VFD 3 HP · E510-403-H3N4-U | 460V, 3-phase | INV fans |
| 12043-2 | VFD 3 HP · E510-203-HN4R-U | 230V, 1- or 3-phase | INV fans |
| 12044 | VFD 5 HP · E510-405-H3N4-U | 460V, 3-phase | INV fans |
| 12044-2 | VFD 5 HP · E510-205-H3N4-U | 230V, 3-phase | INV fans |
| 12045 | VFD 8 HP · E510-408-H3N4-U | 460V, 3-phase | INV fans |
| 12045-2 | VFD 8 HP · E510-208-H3N4-U | 230V, 3-phase | INV fans |
Not sure which drive fits your layout? Send us the fan count and your room's power and we'll size it.
All 29 Patterson SKUs we carry
Pricing is shown to account holders in the Hydro Supply portal, where every SKU below can be ordered.
| SKU | Description | Group |
|---|---|---|
| F10A | 10" high-velocity fan, yoke, 115V 1-phase, 2-speed | Workstation |
| H14A | 14" high-velocity fan, yoke, 1/4 HP, 115/220V 1-phase | High-velocity |
| H14B | 14" high-velocity fan, yoke, 1/4 HP, 230/460V 3-phase | High-velocity |
| H14B-INV | 14" high-velocity fan, yoke, 1/2 HP inverter-duty, 230/460V 3-phase | High-velocity |
| E14S-W-9010 | 14" EC variable-speed fan, yoke, 115–277V 1-phase, white | EC variable-speed |
| H18A | 18" high-velocity fan, yoke, 1/2 HP, 115/220V 1-phase | High-velocity |
| H18B | 18" high-velocity fan, yoke, 1/2 HP, 230/460V 3-phase | High-velocity |
| H18B-INV | 18" high-velocity fan, yoke, 1/2 HP inverter-duty, 230/460V 3-phase | High-velocity |
| E18-W-9010 | 18" EC variable-speed fan, yoke, 115–277V 1-phase, white | EC variable-speed |
| H22A | 22" high-velocity fan, yoke, 1/2 HP, 115/220V 1-phase | High-velocity |
| H22B | 22" high-velocity fan, yoke, 1/2 HP, 230/460V 3-phase | High-velocity |
| H22B-INV | 22" high-velocity fan, yoke, 1/2 HP inverter-duty, 230/460V 3-phase | High-velocity |
| E22-W-9010 | 22" EC variable-speed fan, yoke, 115–277V 1-phase, white | EC variable-speed |
| H26B-INV | 26" high-velocity fan, yoke, 1 HP inverter-duty, 230/460V 3-phase | High-velocity |
| H30B-INV-W | 30" high-velocity fan, yoke, 1 HP inverter-duty, 230/460V 3-phase | High-velocity |
| RM 10 | Rack mount, 10" fans, 12" arm | Mount |
| RM 14 | Rack mount, 14" fans, 14½" arm | Mount |
| RM 18-22 WHITE | Rack mount, 18"–22" fans, 19" arm, white | Mount |
| RM 26-30 WHITE | Rack mount, 26"–30" fans, 21" arm | Mount |
| RM DB | Rack mount, DB low-profile fan, 21" arm | Mount |
| POLE 1' | Mounting pole, 1 ft | Mount |
| BC | Beam clamp mount assembly | Mount |
| 12060 | Symax speed controller | Control |
| 12043 | VFD 3 HP, 460V 3-phase input | Control |
| 12043-2 | VFD 3 HP, 230V 1- or 3-phase input | Control |
| 12044 | VFD 5 HP, 460V 3-phase input | Control |
| 12044-2 | VFD 5 HP, 230V 3-phase input | Control |
| 12045 | VFD 8 HP, 460V 3-phase input | Control |
| 12045-2 | VFD 8 HP, 230V 3-phase input | Control |
Patterson documentation
High-Velocity Product GuideAll sizes, motors and mounts
10" High-Velocity FanSpec sheet · F10A
14" High-Velocity FanSpec sheet
18" High-Velocity FanSpec sheet
22" High-Velocity FanSpec sheet
26" High-Velocity FanSpec sheet
30" High-Velocity FanSpec sheet
EC Variable-Speed FansSpec sheet · 14"–22"
EC Motor Wiring GuideSpeed-control wiring
Rack Mount FansDimensions & throw
Mounting OptionsYoke, rack, column-wall and more
Beam Clamp AssemblyInstall instructions
High-Velocity Fan ManualInstall, operation, safety
WarrantyHigh-velocity fans
Specifications from Patterson Fan Co. and subject to change by the manufacturer.
Quotes & Ordering
See your Patterson pricing in your account
Every Patterson SKU on this page is in the Hydro Supply portal. Sign in to see the price for your account and order, or send us your room layout and we'll spec the fan count, sizes and mounts.
