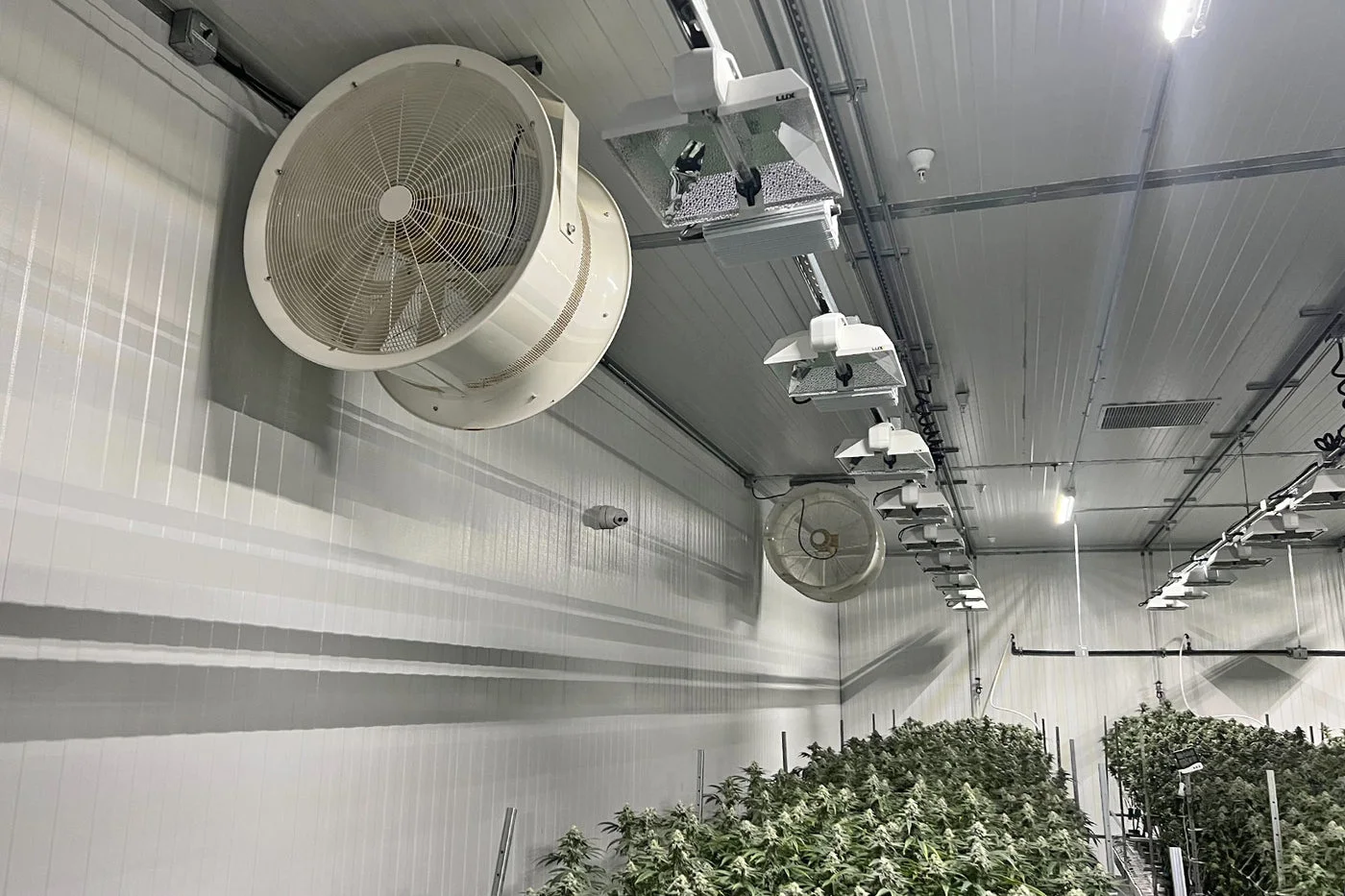

Patterson EC Variable-Speed Fans 14", 18" and 22"
Patterson's 14", 18" and 22" high-velocity fans with an electronically commutated (EC) motor and a white finish. Speed is adjustable from 300 to 1,800 RPM, so the same fan can run gentle air over young plants and full air through a filled-in canopy. One motor auto-adapts to any single-phase supply from 115V to 277V.
- 300–1,800
- RPM, variable
- 115–277V
- Auto-adapts, 1-phase, 50/60 Hz
- 2,600–5,570
- CFM at full speed
- 1/2 HP
- EC motor, all sizes
- 2 years
- Warranty
Three sizes, one motor
All three sizes use the same 1/2 HP EC motor. Airflow figures are at full speed.
| SKU | Size | CFM | Throw | Coverage | Sound @ 20 ft | W × D | Ship weight |
|---|---|---|---|---|---|---|---|
| E14S-W-9010 | 14" | 2,600 | 60 ft | 1,800 ft² | 63.1 dB | 20" × 16" | 35 lbs |
| E18-W-9010 | 18" | 3,800 | 80 ft | 2,700 ft² | 65.1 dB | 24" × 16" | 44 lbs |
| E22-W-9010 | 22" | 5,570 | 100 ft | 3,600 ft² | 66.5 dB | 29" × 16" | 49 lbs |
EC motor and fan specifications
| Speed | 300–1,800 RPM variable |
|---|---|
| Motor | 1/2 HP EC, NEMA 48/56 frame |
| Input | 115V, 208–230V or 277V single phase, 50/60 Hz (auto-adapting) |
| Rated amps | 8.0 / 4.4 / 3.8 A at 115 / 230 / 277V |
| Speed control inputs | Potentiometer, 0–10 VDC, 4–20 mA, PWM, MODBUS (RS485) |
| Configurable I/O | 4 digital inputs, 1 digital output, 1 relay |
| Built-in protection | Over-current, thermal, locked rotor, no-load, over- and under-voltage, failure to start |
| Propeller | 3-blade galvanized aluminum |
| Power cord | 12 ft, three-prong 115V plug standard |
| Speed knob wiring | Shielded 22-gauge 3-conductor (signal/alarm) wire |
| Warranty | 2 years |
Mounts that fit
- RM 14Rack mount for the 14", 14½" arm.
- RM 18-22 WHITERack mount for the 18" and 22", 19" arm, white.
- BCBeam clamp for structural beams and trusses.
- 12060Symax speed controller.
Where the EC Variable-Speed fan works best
- Rooms that run different airspeeds through the crop cycle
- Facilities with mixed 115V, 208–230V and 277V circuits: one SKU per size covers all of them
- Speed control from a dial (Symax 12060) or from a controller over 0–10 VDC, 4–20 mA, PWM or MODBUS
Common questions
What does EC mean?
Electronically commutated. The motor has its drive built in, so speed can be set anywhere from 300 to 1,800 RPM without a separate VFD, and one motor runs on any single-phase supply from 115V to 277V.
How do I control the speed?
The simplest option is the Symax speed controller (SKU 12060), a dial wired with shielded 22-gauge 3-conductor signal wire. For automation, the motor also accepts 0–10 VDC, 4–20 mA, PWM or MODBUS over RS485. See the EC motor wiring guide below.
Documentation
Specifications from Patterson Fan Co. and subject to change by the manufacturer.
