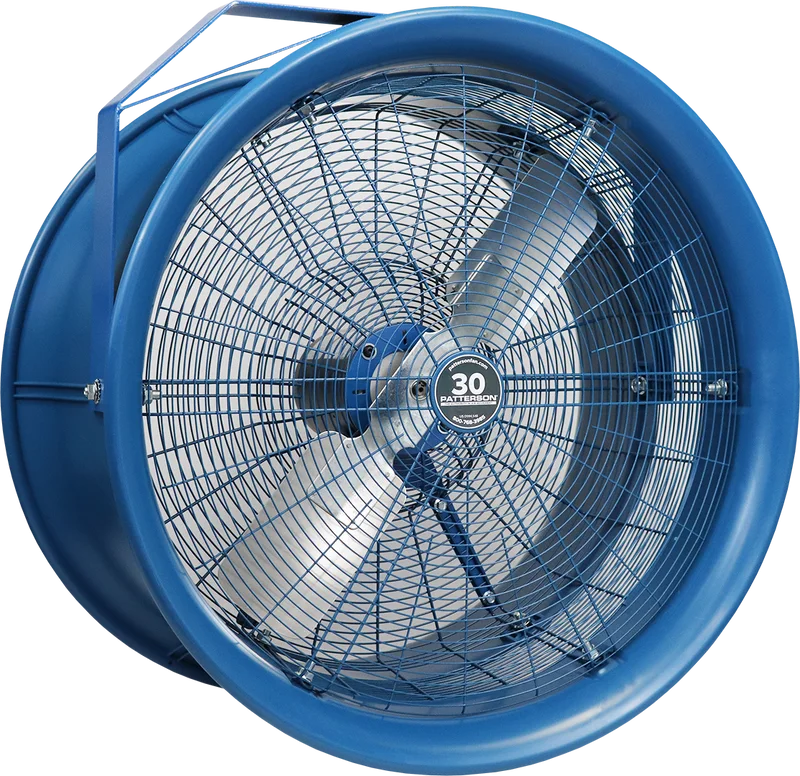

Patterson 30" high-velocity fan
Patterson's largest high-velocity fan: 12,000 CFM and a 200 ft throw from a 1 HP inverter-duty motor. Built for greenhouses, warehouse-scale flower halls and drying spaces where a few fans have to move the air in the whole building.
- 12,000
- CFM
- 200 ft
- Air throw
- 12,000 ft²
- Coverage per fan
- 1,800
- RPM
- 2 years
- Warranty
Inverter-duty motor
We carry this size with the inverter-duty three-phase motor, built to run from a variable frequency drive so a whole row of fans can be slowed or sped up together.
| SKU | Motor | Voltage | HP | Rated amps | Best for |
|---|---|---|---|---|---|
| H30B-INV-W | Inverter-duty three phase, for VFD speed control | 230V / 460V, 3-phase | 1 | — | Greenhouses and large halls on a VFD |
Rated amps from Patterson's spec sheet. Rated amps for inverter-duty motors are not listed on Patterson's spec sheet; the VFD is sized to total fan horsepower.
30" fan specifications
| Air delivery | 12,000 CFM |
|---|---|
| Air throw | 200 ft |
| Coverage | 12,000 ft² |
| Propeller | 30" diameter, 2-blade galvanized aluminum, 15° pitch |
| Speed | 1,800 RPM |
| Sound | 82.2 dB @ 20 ft · 85.5 dB @ 3 ft |
| Dimensions | 37" W × 22" D |
| Inlet ID | 30.875" |
| Motor frame | 56 |
| Shipping weight | 99 lbs (yoke mount) |
| Fan inlet / outlet | High-impact polypropylene |
| Finger guards | OSHA compliant, spiral-wound steel |
| Mount | Yoke mount standard |
| Enclosure | TEAO (totally enclosed, air over) |
| Ambient rating | 104°F |
| Duty cycle | Continuous |
| Warranty | 2 years |
Mounts that fit
- RM 26-30 WHITERack mount, 21" arm. 43" W × 44" H with the fan installed, 109 lbs shipping.
- BCBeam clamp for structural beams and trusses.
- POLE 1'1 ft pole to drop the fan below a beam or ceiling mount.
Where the 30" High-Velocity fan works best
- Greenhouses and warehouse-scale rooms, roughly 12,000 ft² per fan
- Long throws of up to 200 ft down a greenhouse range
- Room-wide speed control from a VFD
Common questions
How is speed controlled on the INV model?
Inverter-duty fans run from a variable frequency drive (VFD). One drive can run a bank of fans; it is sized to the total horsepower on it and to the facility's input power. We carry E510 drives from 3 to 8 HP in 230V and 460V versions. See Patterson controls and VFDs.
How is it mounted?
Every fan ships with a yoke mount for walls, posts and ceilings. Rack mounts hang it from pallet racking or shelving to clear the canopy, and the beam clamp grips a structural beam or truss without drilling.
Can it run at lower speed?
Yes, through the VFD. Turning down the drive slows every fan on it, which lowers airspeed and noise when full speed isn't needed.
Documentation
Specifications from Patterson Fan Co. and subject to change by the manufacturer.
