REHEAT · 3 ton · high static

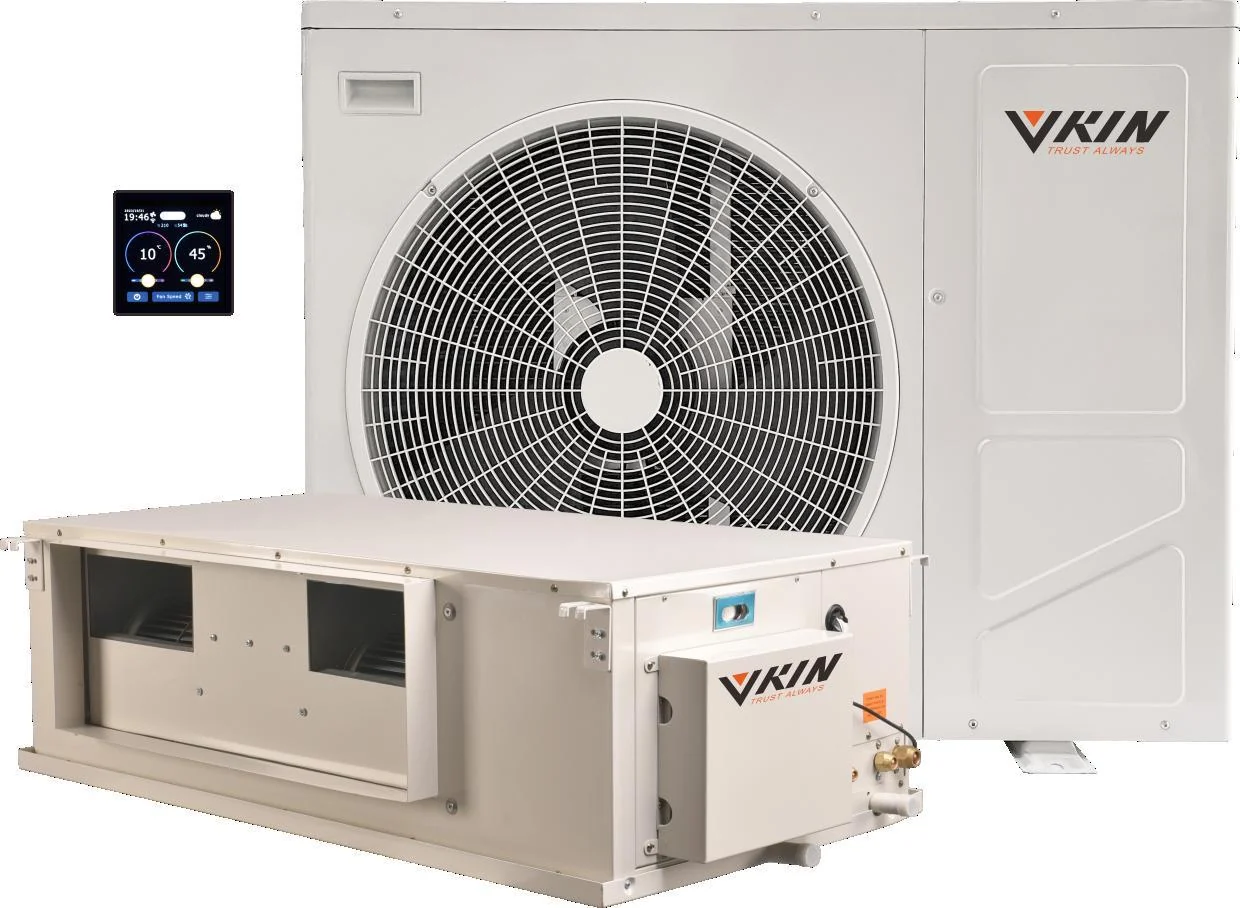

VKIN UCHA-36TDC 3-ton high-static REHEAT heat pump for long duct runs
Where the range switches to a high-static concealed chassis — airflow can be pushed down long duct runs, so one unit can serve a room it isn't sitting inside. Adds MERV-13 filtration and the highest efficiency in the line at EER2 12.20.
Where it fits
Built for these rooms.
High-static concealed chassis pushes air through up to 0.8 in W.C., so one unit can serve a room it isn’t sitting inside.
36,000 Btu/h with three-pipe hot-gas reheat, holding temperature and humidity through lights-on and lights-off.
MERV-13 filtration on the indoor unit. Pair with an external humidifier where the room needs water added.
Hot-gas reheat
Dry the room, not the plants.
- Cool & dehumidify
The main indoor coil pulls water out of the air until the room hits its humidity setpoint (30–90% RH).
- Recover the heat
Hot refrigerant gas runs through a second indoor coil, so the heat the compressor already made warms the dried air back up.
- Hold temperature
Supply air leaves at your setpoint, so lights-off dehumidification doesn’t chill the canopy, and there’s no electric strip reheat.
Manufacturer data
UCHA-36TDC specifications
| Nominal capacity | 3 ton |
|---|---|
| Cooling capacity | 36,000 Btu/h (17,500–41,000) |
| EER2 / SEER2 | 12.20 / 16.30 Btu·h/W·h |
| Cooling @ 5°F | 37,532 Btu/h · EER2 22.2 |
| Heating capacity | 36,000 Btu/h (19,600–42,600) |
| COP / HSPF2 | 3.20 · 10.9 / 8.2 |
| Heating @ 5°F | 23,542 Btu/h · COP 2.15 |
| Dehumidification — cooling mode | 273.8 pints/day (DB 80.6°F, RH 60%) |
| Dehumidification — constant temp | 367.7 pints/day (DB 80.6°F, RH 80%) |
| Humidification | External humidifier |
| Filtration | MERV-13 |
| Indoor airflow | 1,176 / 941 / 705 CFM |
| External static pressure | Rated 0.51 · range 0–0.8 in W.C. |
| Indoor unit | 42.3″ × 31.5″ × 16.1″ · 36–52 dB(A) |
| Outdoor unit | 36.2″ × 49.4″ × 15.2″ · ≤56 dB(A) |
| Refrigerant piping | 3/8 – 1/2 – 5/8″ (liquid/gas/reheat) |
| Refrigerant | R454B |
| Throttle | EEV ×2 indoor |
| Operating range | Indoor 50–88°F · Ambient 5–118°F |
| Humidity setting | 30–90% RH |
| Power supply | 208–277V · 1Ph · 50/60Hz |
| Power input | 2,950 W (1,100–4,400) |
| Rated current | 12.8 A (4.7–19.1) |
| Heating input | 3,268 W (1,200–4,500) · 14.2 A |
| Electric aux heat | 1.80 kW |
| HSPF2 IV / V | 10.90 / 8.20 Btu·h/W·h |
| Indoor fan motor | DC |
| Outdoor fan motor | DC |
| Compressor | Rotary |
| Drain connection | 3/4″ external thread |
| Max. allowable pressure | 609 psi |
Specifications are from the manufacturer datasheet and may change without notice. The unit rating plate governs.
Questions
UCHA-36TDC FAQ
How much water does the UCHA-36TDC remove?
About 274 pints per day (11.41 pints/hour) in cooling mode at 80.6°F and 60% RH, and about 368 pints per day in constant-temperature mode at 80.6°F and 80% RH.
What does high static mean for my install?
The fan can push air against up to 0.8 in. W.C. of duct resistance (rated 0.51), so the unit can sit in a mechanical space and duct air to the room. The 18TDC and 24TDC are limited to 0.12 in. W.C.
Does the UCHA-36TDC humidify?
Not on its own. Unlike the 18TDC and 24TDC, it doesn’t have a built-in humidifier, so pair it with an external humidifier if the room runs dry.
What power does it need?
Single-phase 208–277V, 50/60 Hz. Rated cooling input is 2,950 W at 12.8 A.
