Split dehumidifier · 350 pints/day

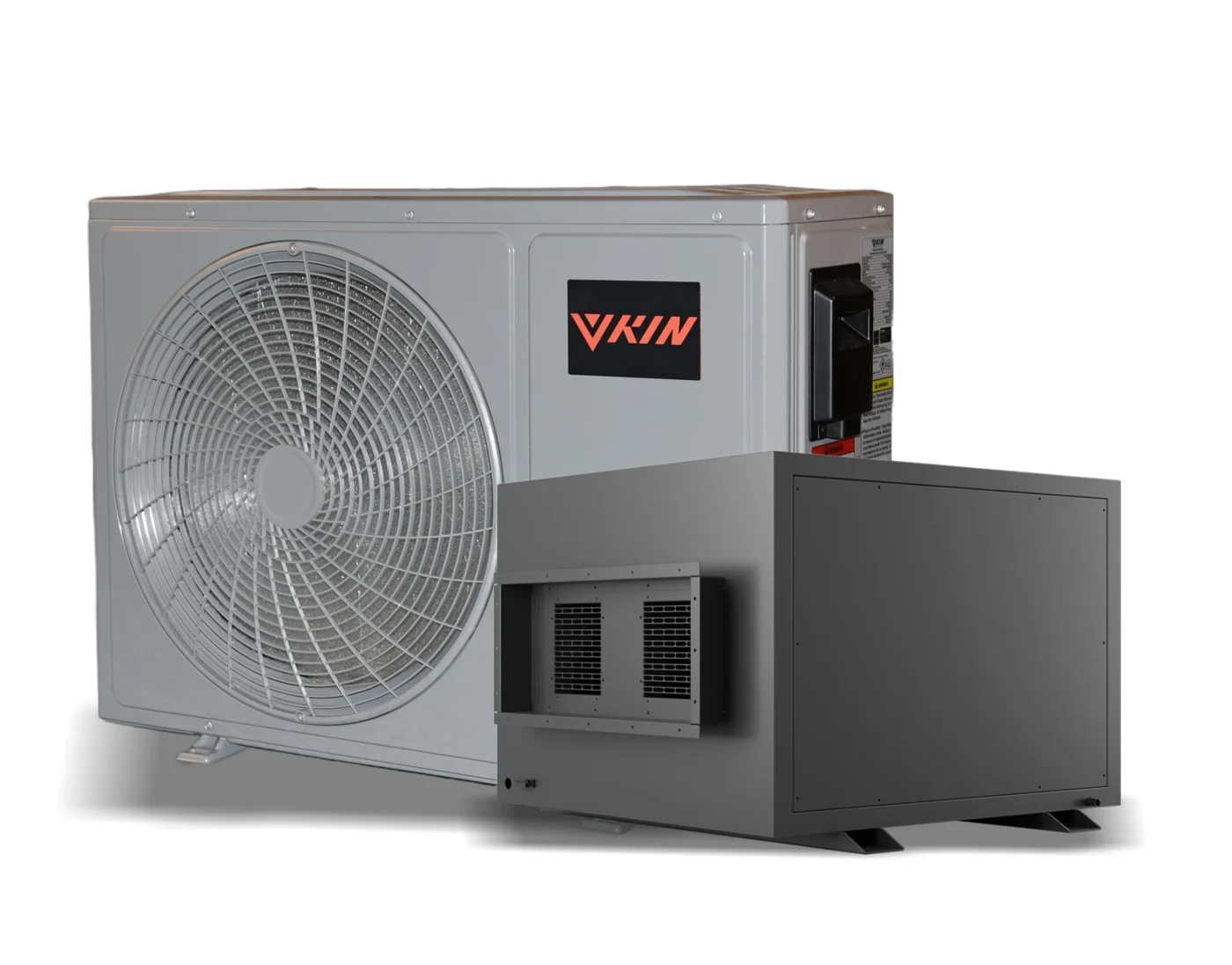

VKIN UCDA-D360DCT Ducted split dehumidifier that keeps compressor heat out of the room
A ducted split dehumidifier with three-pipe heat recovery. Because the indoor and outdoor units are separated, 100% of the compressor heat stays outside the room — the reason a split beats a portable once the latent load gets serious. Runs a constant-temperature mode that pulls 360 pints/day while holding temperature, and complies with California Title 24.
Where it fits
Built for these rooms.
Adds dedicated moisture removal when plant transpiration outruns what your cooling system pulls.
Runs from its wired controller or a standard 24V thermostat, alongside the cooling you already have.
Because the compressor sits outdoors, removing water doesn’t dump heat into the room the way a portable or stand-alone dehumidifier does.
Split design
Water out. Heat outside.
- Pull water out indoors
The ducted indoor cabinet draws room air across its coil and condenses the moisture out.
- Keep the heat outside
The compressor and condenser sit in the outdoor unit, so their heat is rejected outdoors, not into your flower room.
- Hold the room
Three-pipe heat recovery and a constant-temperature mode remove water without swinging room temperature.
Manufacturer data
UCDA-D360DCT specifications
| Water removal | 350 pints/day · 14.6 pint/h (DB 80°F, RH 60%) |
|---|---|
| Constant-temp mode | 360 pints/day · 15 pint/h (DB 80°F, RH 60%) |
| Water removal @ 75°F | 224 pints/day (RH 50%) · 12,800 Btu/h |
| Water removal @ 65°F | 105 pints/day (RH 50%) · 8,000 Btu/h |
| Cooling capacity | 20,000 Btu/h |
| Power input | 1,700 W · 7.54 A |
| Efficiency | 8.6 pints/kWh · EF 4.1 L/kWh |
| Constant-temp efficiency | 8.7 pints/kWh · EF 4.1 L/kWh |
| Indoor airflow | 800 / 650 / 500 CFM |
| External static pressure | Rated 0 · range 0–0.8 in W.C. |
| Indoor unit | 33″ × 27″ × 18″ · 46/37/28 dB(A) |
| Outdoor unit | 33.2″ × 27.8″ × 13.3″ · 51 dB(A) |
| Drain connection | 1/2″ OD |
| Refrigerant piping | 1/4 – 3/8 – 1/2″ · max 100 ft · 33 ft level difference |
| Refrigerant / throttle | R454B · EEV |
| Max. allowable pressure | 609 psi |
| Filtration | MERV-13 |
| Control | Wired controller / 24V thermostat |
| Operating range | Indoor 41–88°F · Outdoor 5–118°F |
| Compliance | California Title 24 |
| Power supply | 208–277V · 1Ph · 60Hz |
Specifications are from the manufacturer datasheet and may change without notice. The unit rating plate governs.
Questions
UCDA-D360DCT FAQ
How much water does the UCDA-D360DCT remove?
350 pints per day (14.6 pints/hour) at 80°F and 60% RH, 224 pints per day at 75°F and 50% RH, and 105 pints per day at 65°F and 50% RH. Constant-temperature mode removes 360 pints per day at 80°F and 60% RH.
Why a split dehumidifier instead of a portable?
A portable unit rejects its compressor heat into the room, which the AC then has to remove. The D360DCT’s compressor is in the outdoor unit, so that heat stays outside.
What power and line set does it need?
Single-phase 208–277V, 60 Hz, drawing 1,700 W at 7.54 A. Refrigerant lines are 1/4″, 3/8″ and 1/2″, up to 100 ft long with 33 ft of vertical difference.
How is it controlled?
With the included wired controller, or with a 24V thermostat or humidistat signal.
