Advanced Spectrum Control — 2 Independent Channels
A plug-and-play RJ12 controller with 2 independent channels for Far Red, UV, and Full Spectrum management. 7 dimming levels with custom presets and scheduling. Controls up to 100 fixtures via RS-485 or 80 via 0-10V.
Two independent channels with 7 precision dimming levels give you complete control over spectrum composition, intensity, and scheduling across your entire facility.

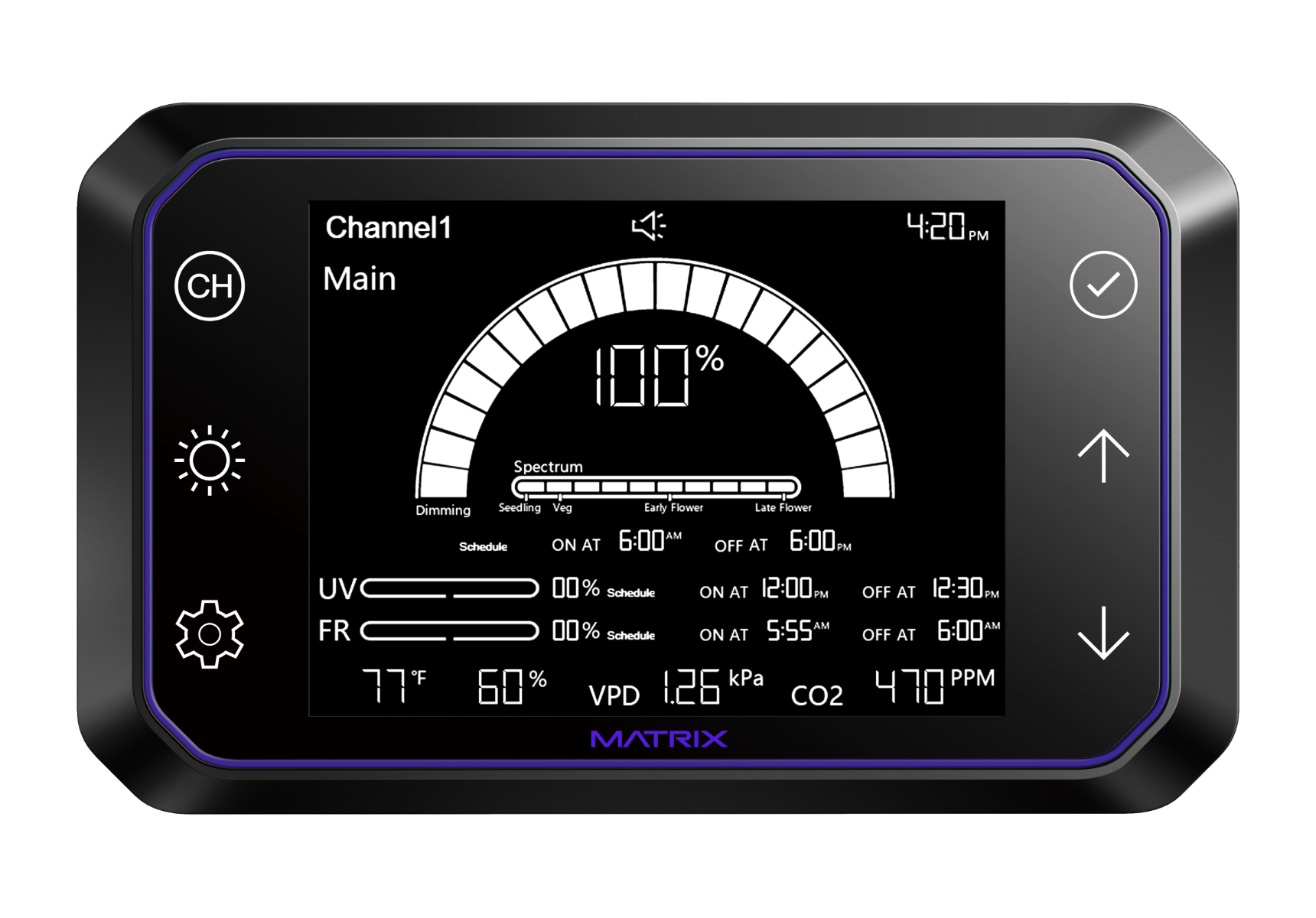

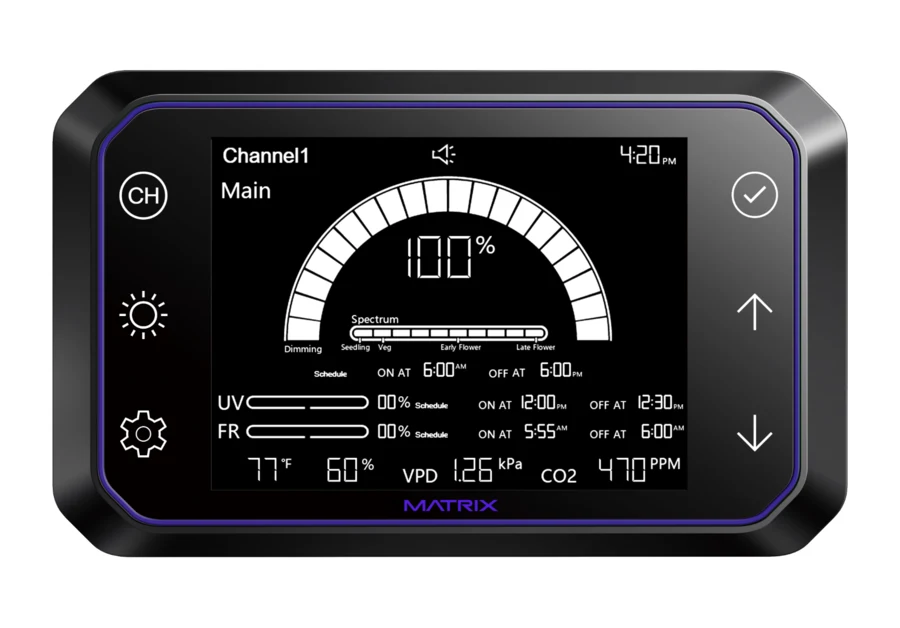

Separate control over Full Spectrum and supplemental channels (Far Red, UV) for precise spectrum recipes at every growth stage.
Program automated light schedules with per-channel dimming presets. Set sunrise/sunset ramps and photoperiod transitions.
Organize fixtures into logical groups and zones. Apply dimming and scheduling profiles to entire sections simultaneously.

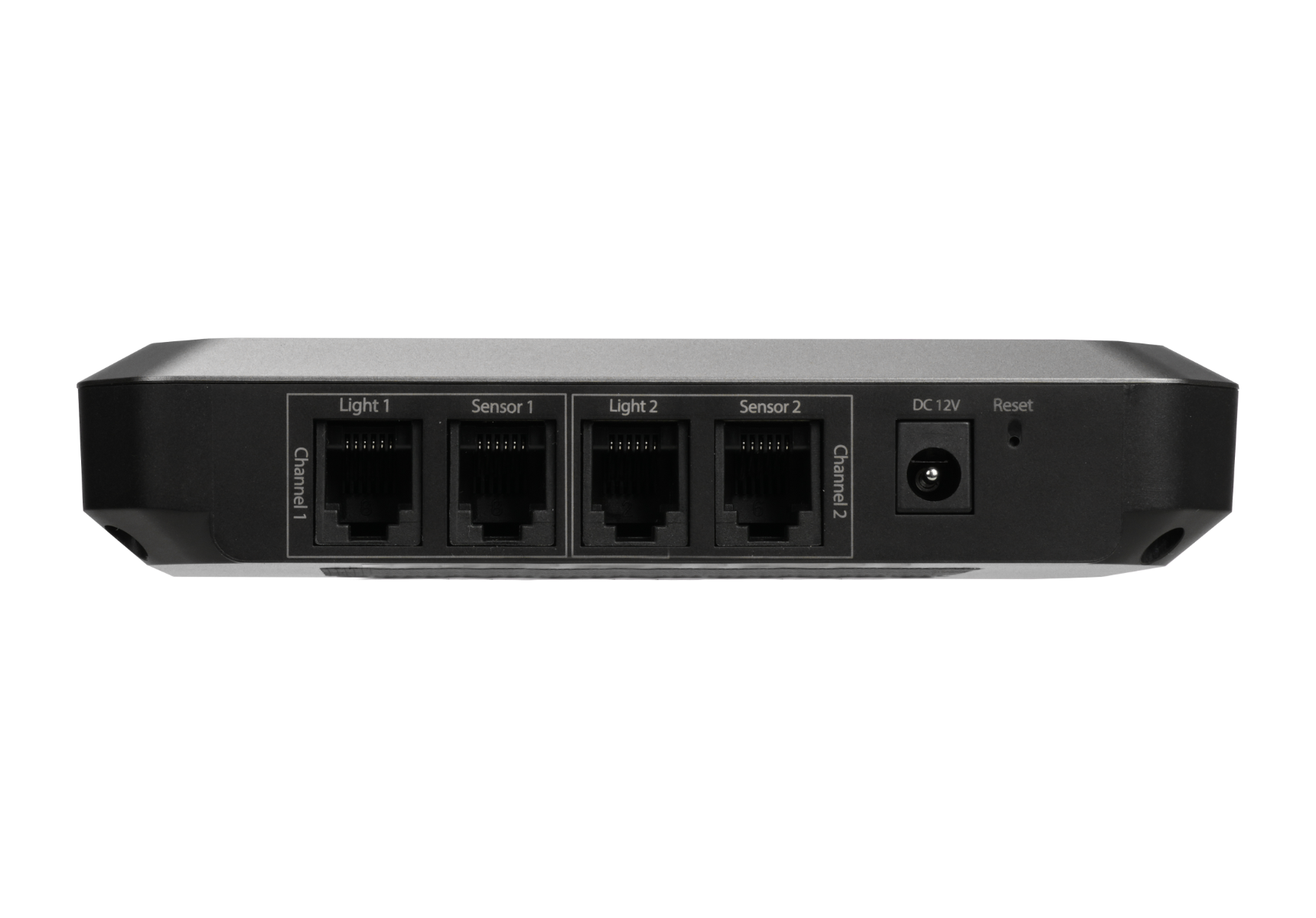

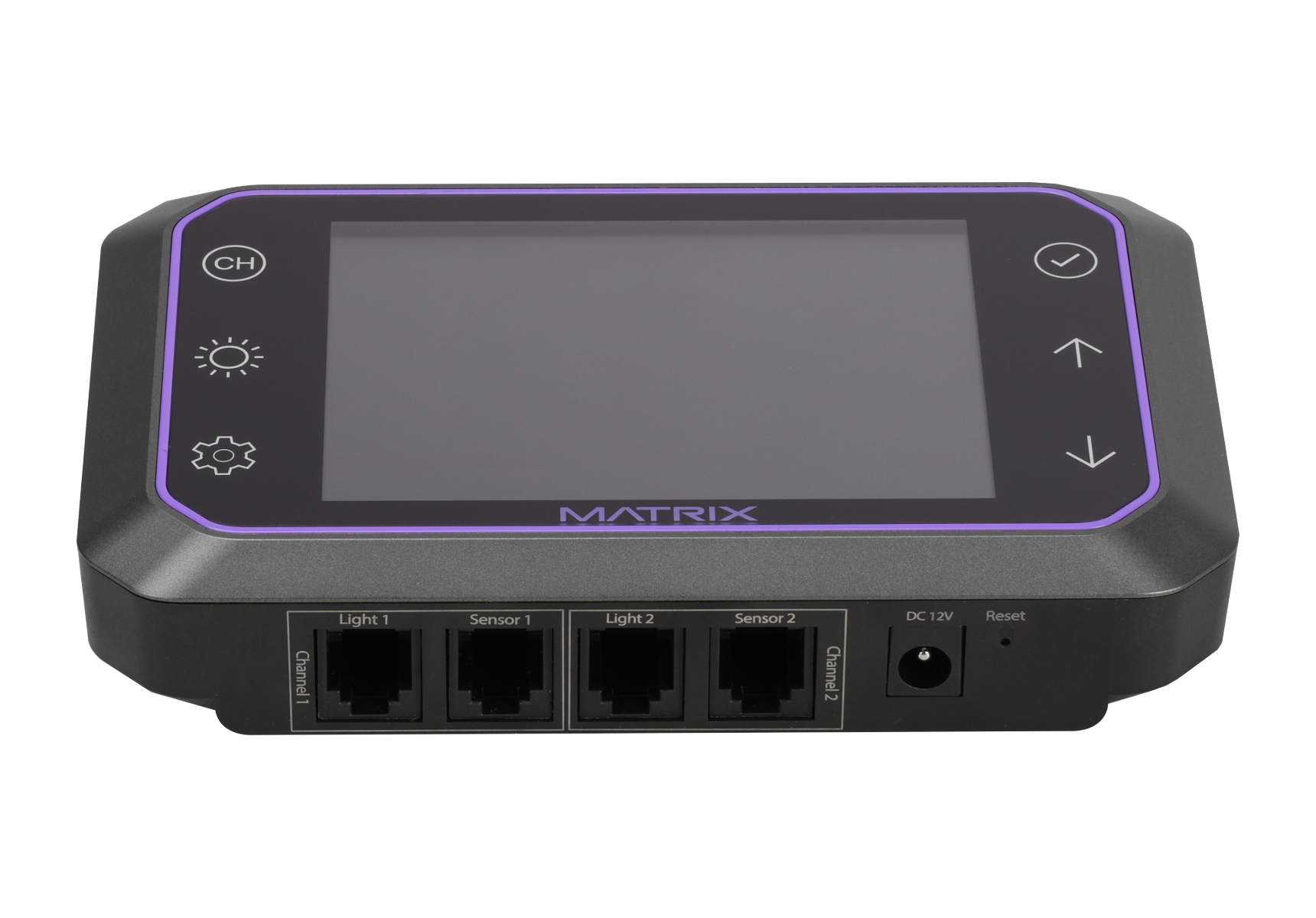

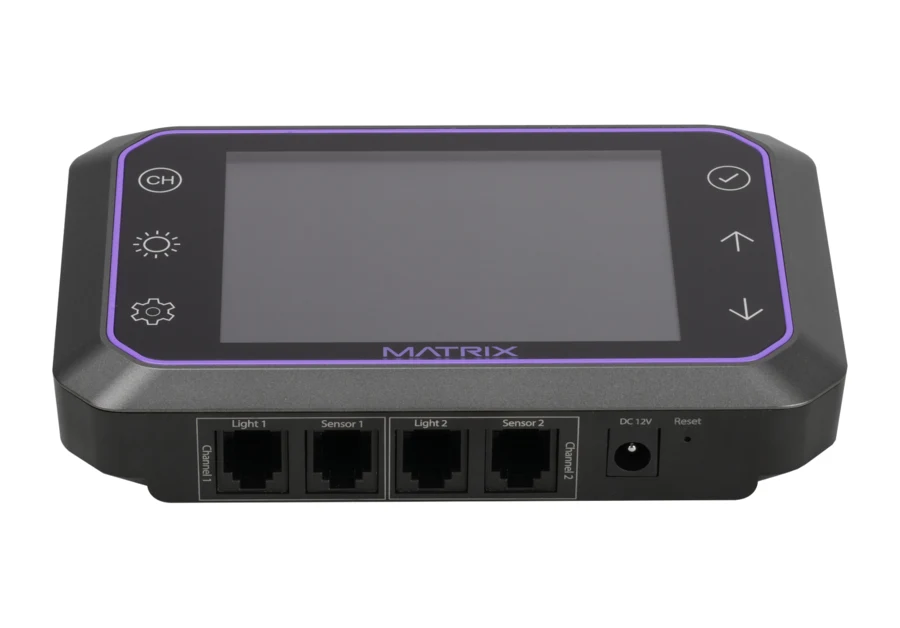

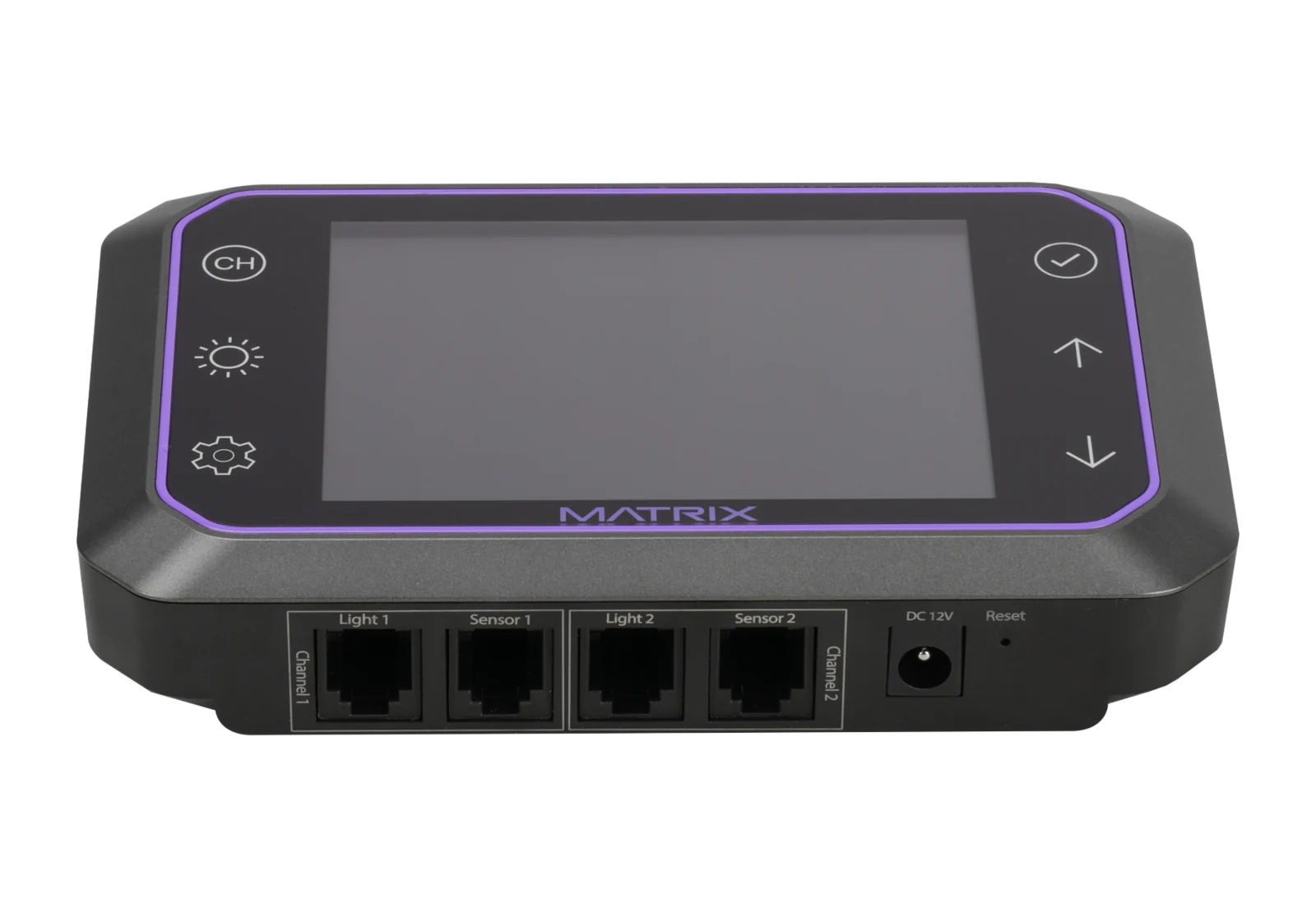

Simple RJ12 connectivity for instant setup. No complex wiring or configuration required. Connect and control in minutes.
| Input Voltage | 100–240V AC |
| Controller Output | 12V / 1A |
| Channels | 2 Independent Channels |
| Dimming Levels | OFF / 25% / 40% / 50% / 60% / 80% / 100% |
| Max Fixtures (0-10V) | 80 Fixtures |
| Max Fixtures (RS-485) | 100 Fixtures |
| Connectivity | RJ12 Plug-and-Play |
| Operating Temperature | -20°C to 80°C |
| Spectrum Control | Far Red, UV, Full Spectrum (per channel) |
| Features | Custom Presets, Scheduling, Grouped Control |
Unlock precision spectrum management with the MC2 Controller. Get custom pricing and expert consultation today.
