TrolMaster (Hong Kong) is the dominant brand in commercial cannabis environmental controls. Their modular IoT platform lets growers start with a single controller and expand as needed — adding sensors, device stations, and control modules across rooms and facilities. Every system connects to the free TM+ Pro smartphone app for remote monitoring, real-time alerts, and data logging from anywhere.
Six product series cover every aspect of cultivation control: Hydro-X for full-room climate management, Aqua-X for irrigation and fertigation automation, Carbon-X for CO₂ safety monitoring, Green-X for greenhouse operations, Tent-X for smaller grows, and Aero-Fan for intelligent ventilation. All ETL/FCC certified with RJ12 bus architecture supporting up to 1,000m device range. Distributed through Hydrofarm nationwide.
Start with one controller, add modules as you grow. Sensors, device stations, lighting adapters, and irrigation boards snap into the RJ12 bus. Low entry cost, unlimited expansion.
TM+ Pro app (iOS & Android) provides remote monitoring, real-time push alerts, and data visualization from anywhere. Web-based software for Pro controllers enables desktop management.
Environment, irrigation, CO₂ safety, lighting control, and ventilation — all from one integrated platform. Calendar-based crop “recipes” automate every variable through each growth stage.
RJ12 bus architecture supports devices up to 1,000 meters from the controller. Multi-room, multi-zone, and multi-facility deployments on a single network.
10+ lighting adapters support virtually every commercial grow light brand. 0-10V, digital, and group control with DLI management, spectrum tuning, and sunrise/sunset simulation.
Critical CO₂ monitoring for up to 13 zones. High/low level alerts, automatic shutoff, fire department interface, and ventilation fan control. Required for compliance in many jurisdictions.

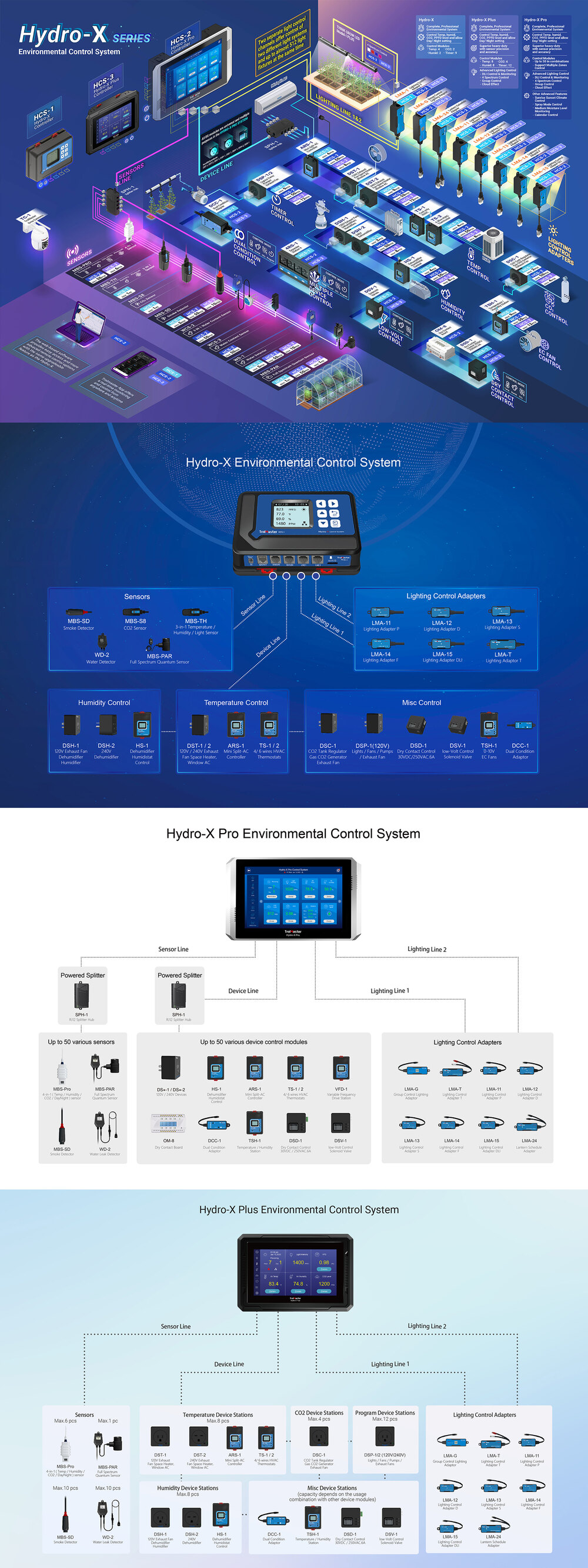

Modular, RJ12 daisy-chain architecture — one ecosystem for environment, irrigation, and CO₂ safety. See the full system diagrams below.

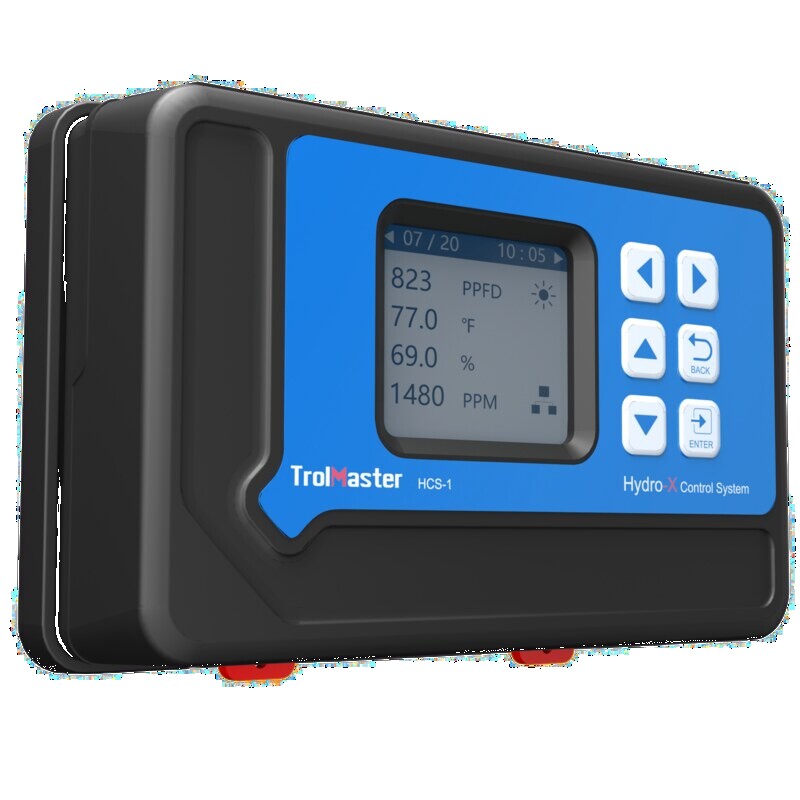

Hydro-X controllers automate HVAC, mini-split AC, dehumidifiers, humidifiers, CO₂, fans, and timers from 3-in-1 / 4-in-1 sensors. Temperature, humidity, CO₂, and lighting device stations daisy-chain over standard RJ12 cable to a single controller — Hydro-X (HCS-1), Hydro-X Plus (HCS-3), or Hydro-X Pro (HCS-2).

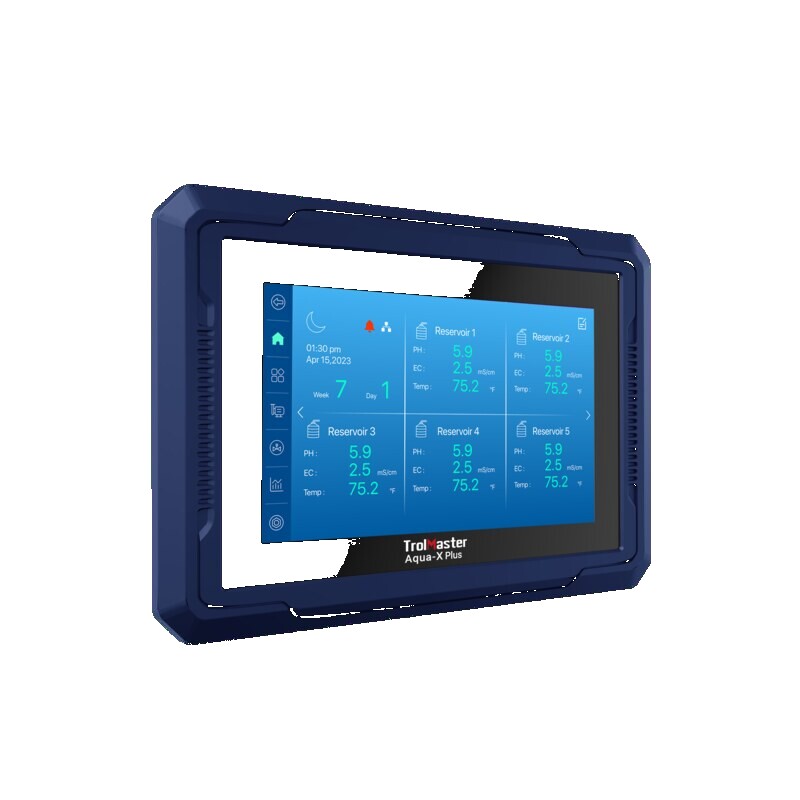

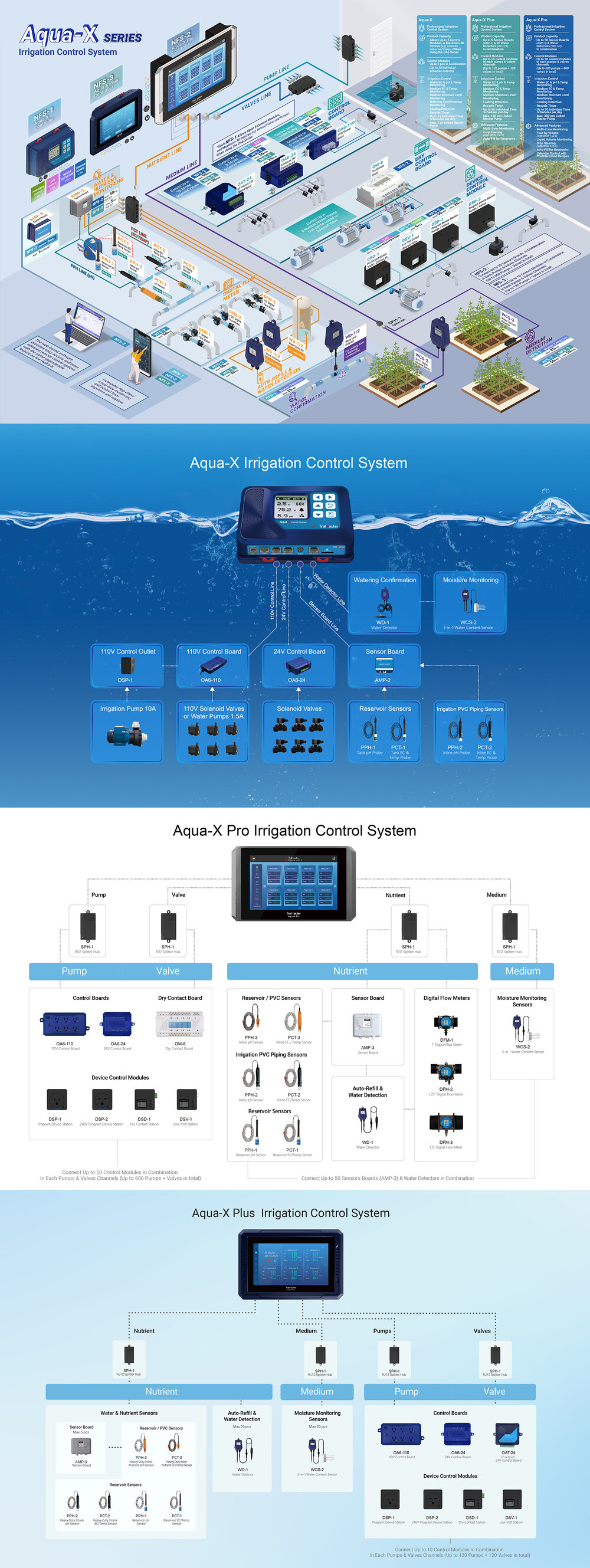

Aqua-X (NFS) controllers run both time-based and demand-based irrigation across multiple zones. 24V / 110V control boards drive solenoid valves and pumps, while up to 50 pH, EC, moisture, and flow sensors trigger and monitor feeding — enabling flow-meter feeding, moisture-triggered irrigation, and multi-zone fertigation.

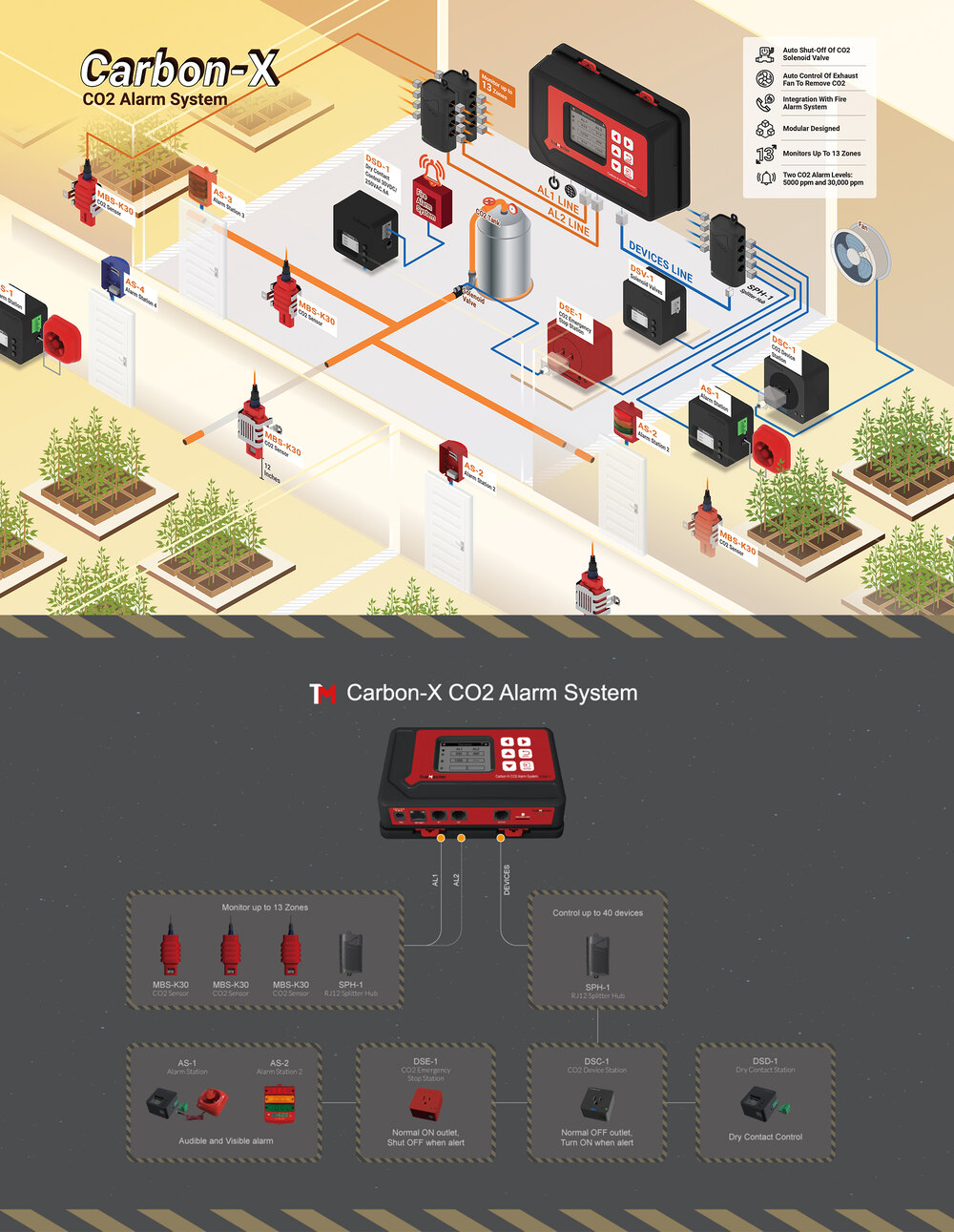

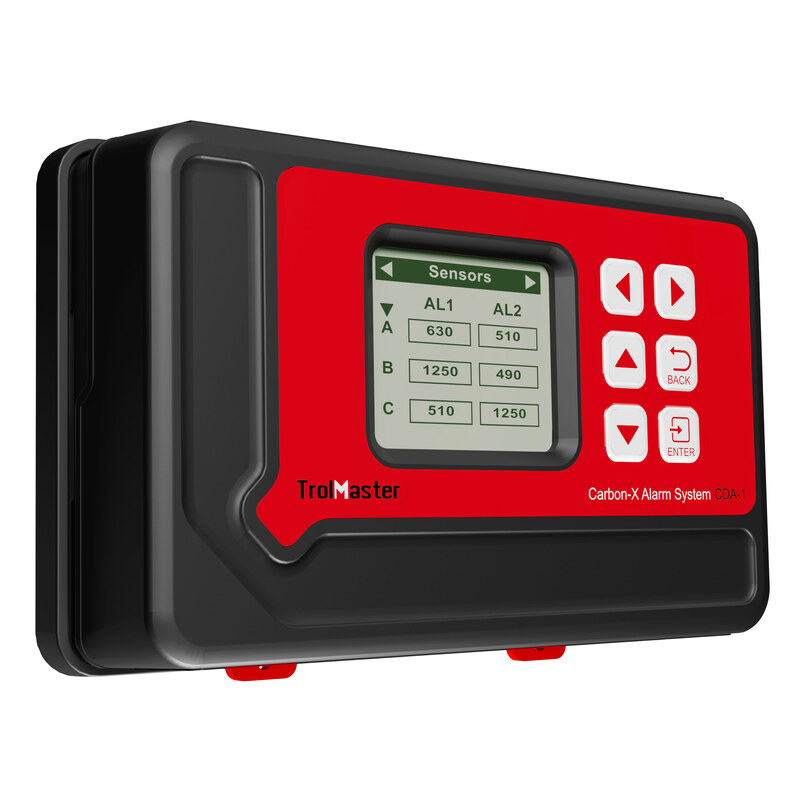

The Carbon-X CDA-1 monitors up to 13 CO₂ sensor zones (MBS-K30) and drives up to 40 outputs across five device types — alarm stations (AS-1–5), an emergency-stop that cuts the CO₂ solenoid (DSE-1), exhaust-fan and dry-contact stations, and fire-panel signaling — with high/low alerts and remote smartphone & email notifications.
Every sensor, station, board, cabinet, adapter and cable we carry. Most of these are specified around a controller — tell us the room and the equipment you are automating and we will build the parts list.

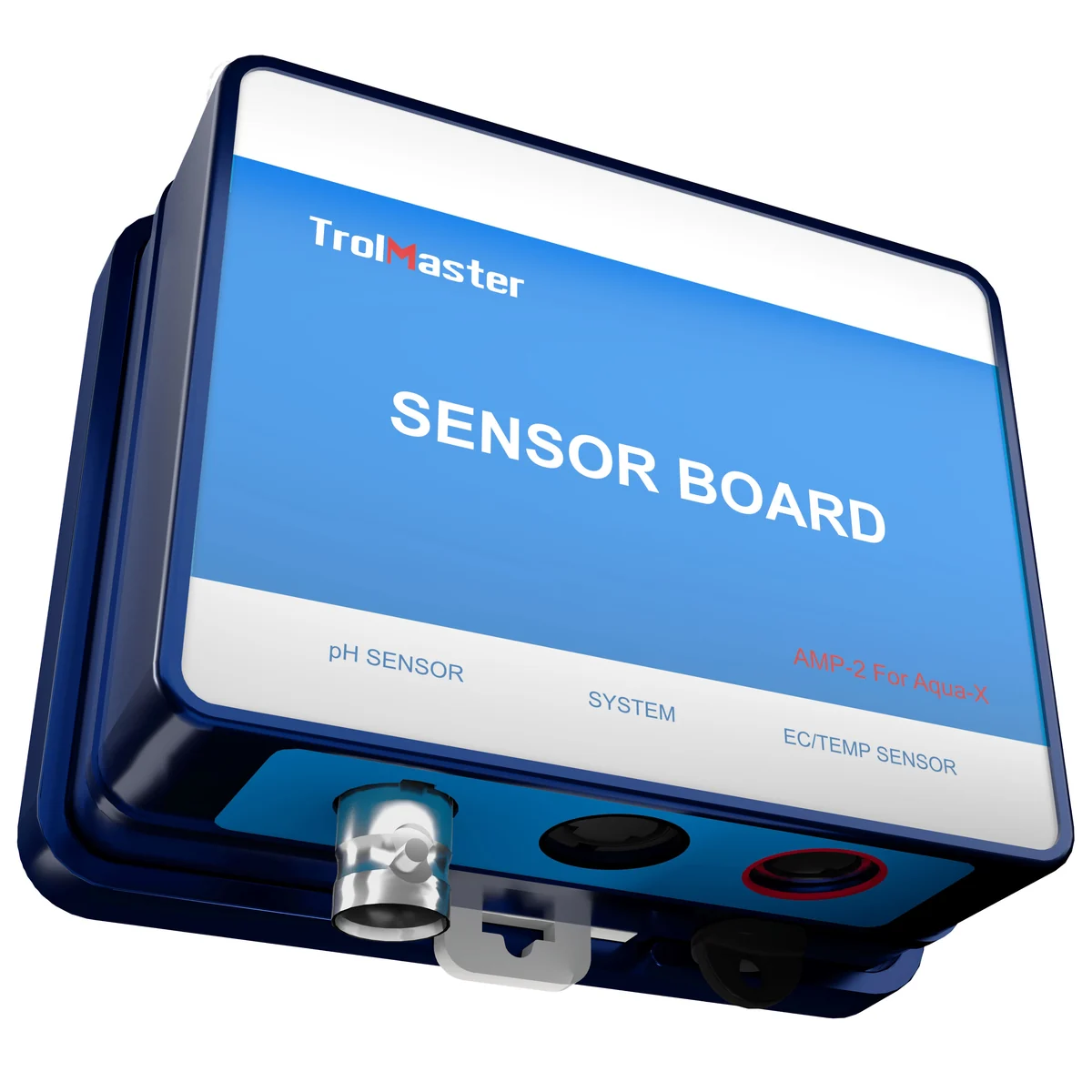

AMP-2Sensor Board to connect sensors to NFS-1 controller

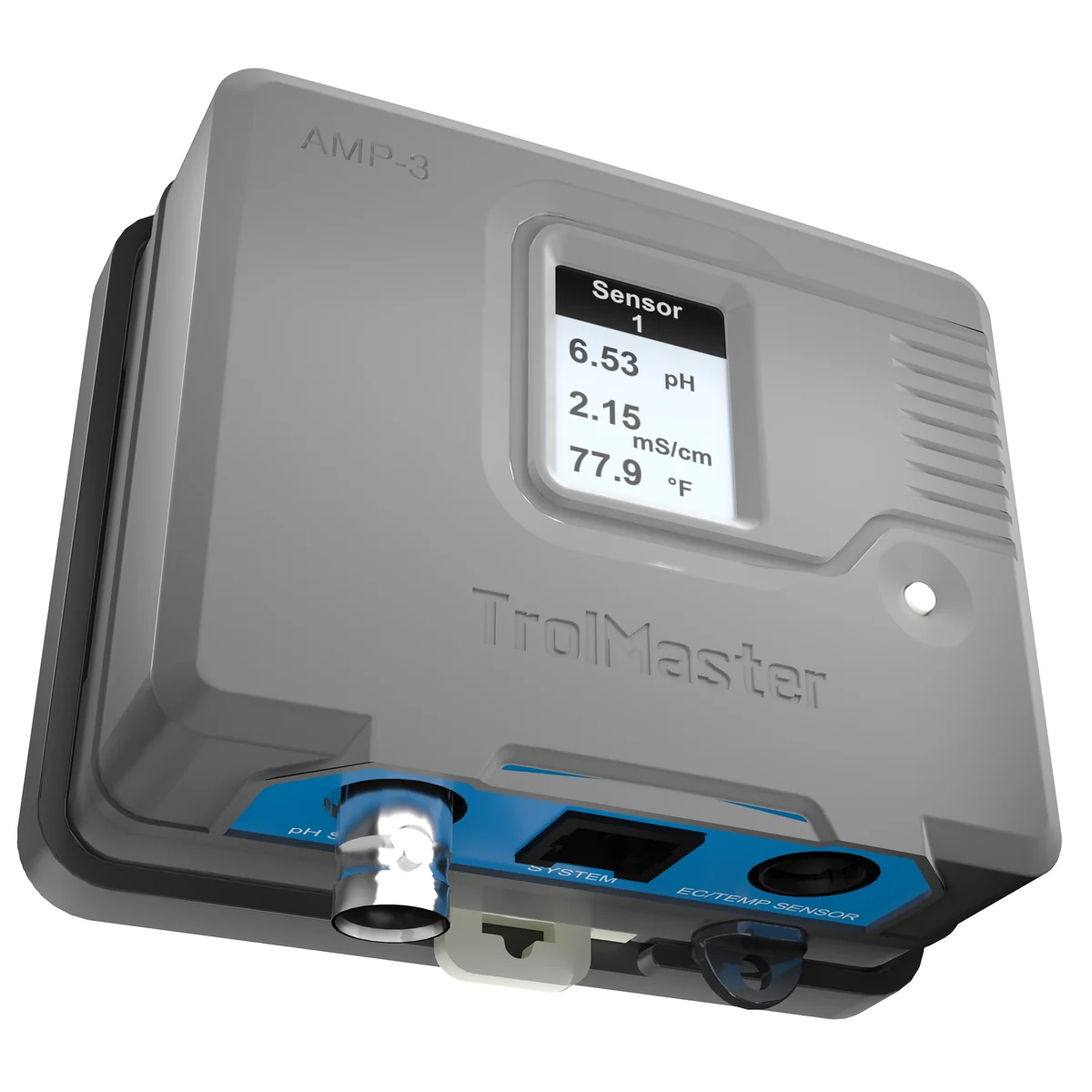

AMP-3Sensor Board to connect sensors to NFS-2 controller with LCD display

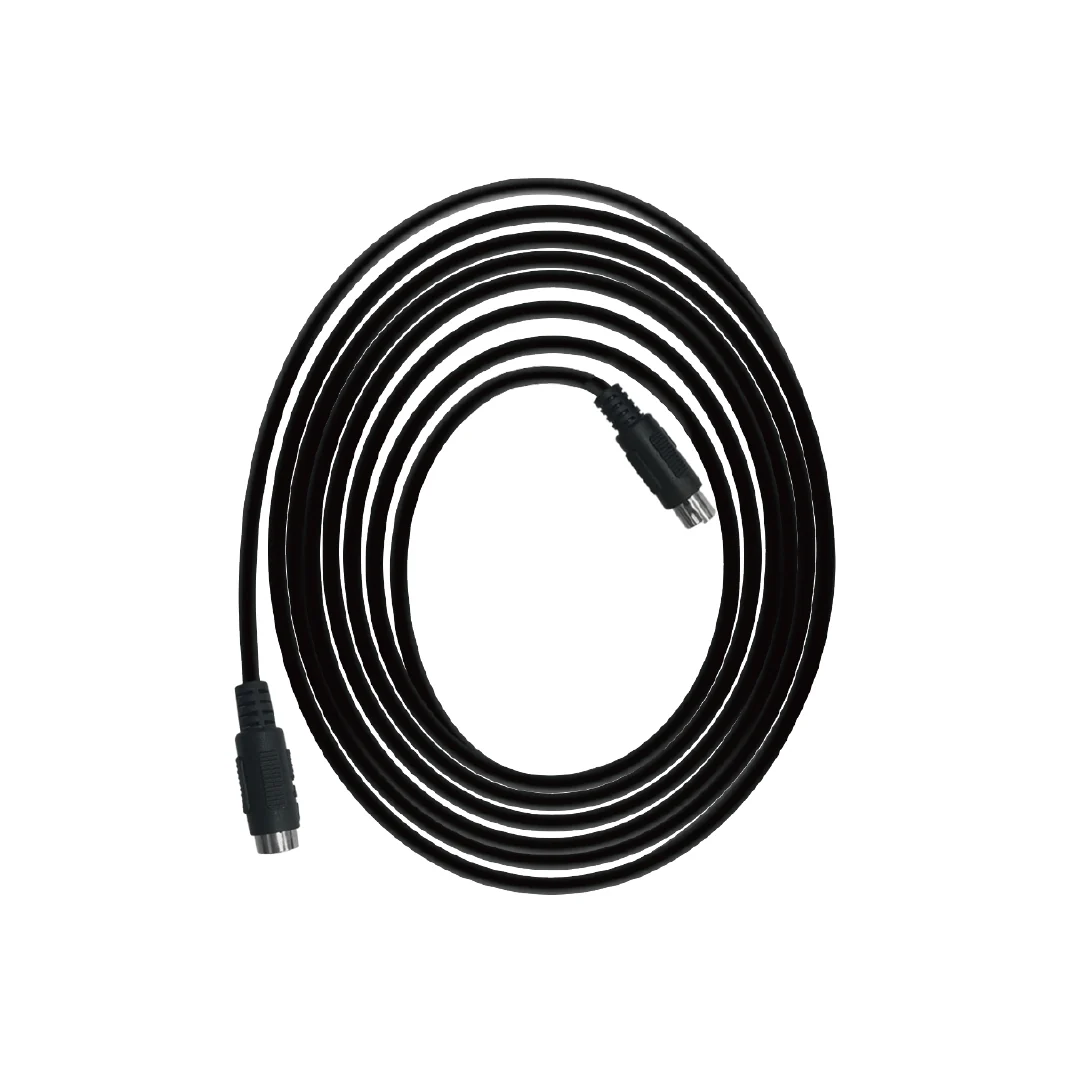

ECS-416' (4.88m) Extension Cable for Sensor Board AMP-2

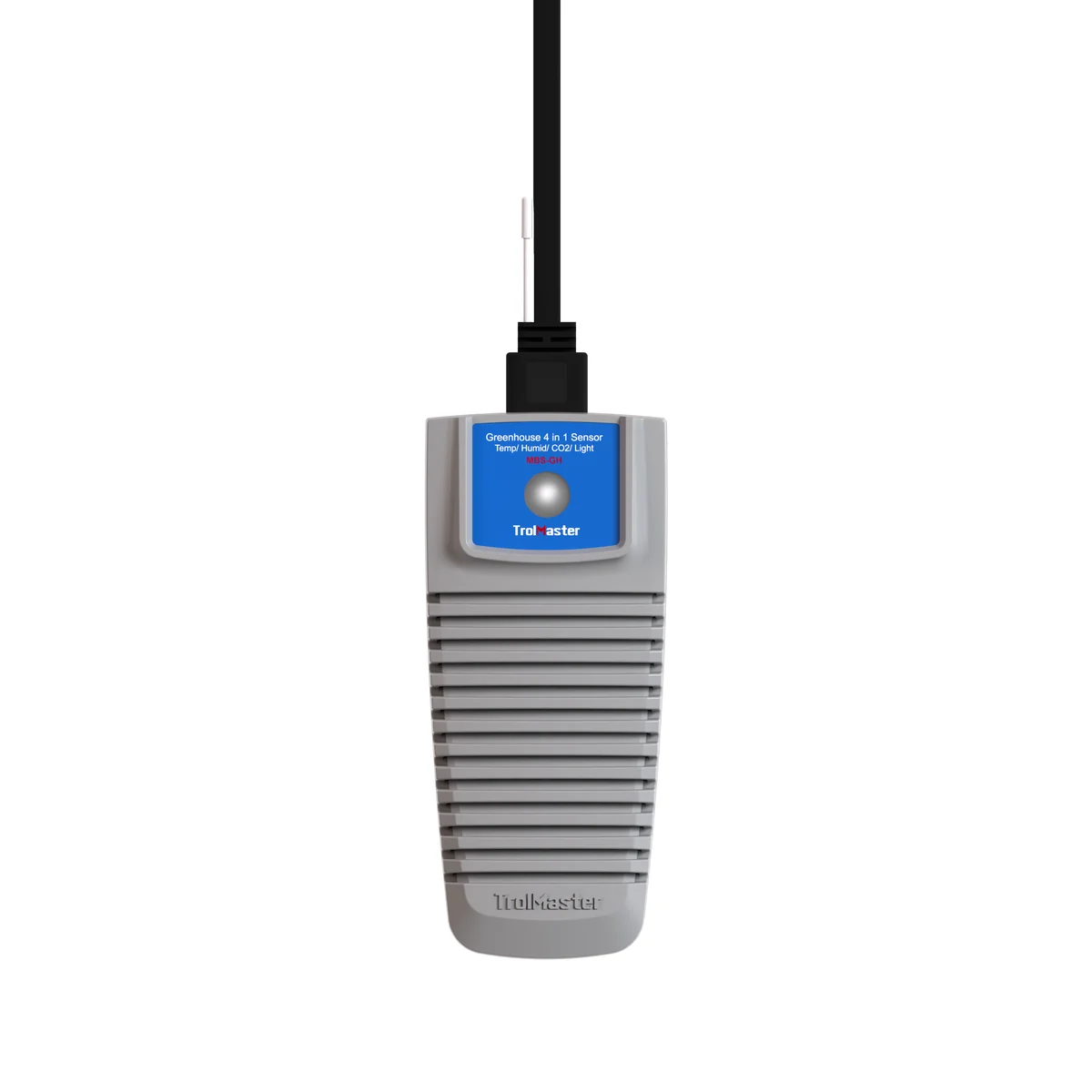

MBS-GHReplacement 4-in-1 Sensor for Green-X Controller jas

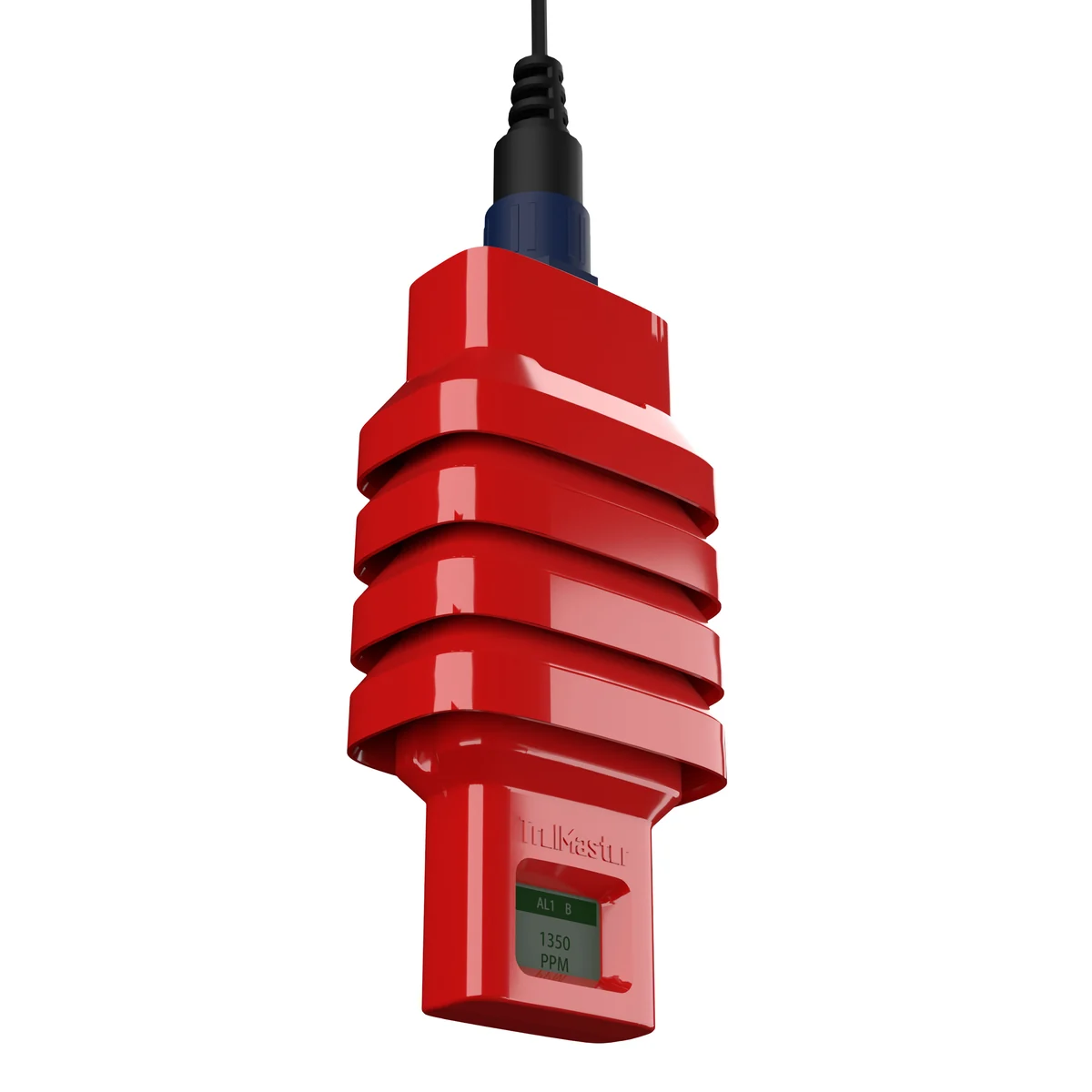

MBS-K30CO2 sensor for Carbon-X with cable set

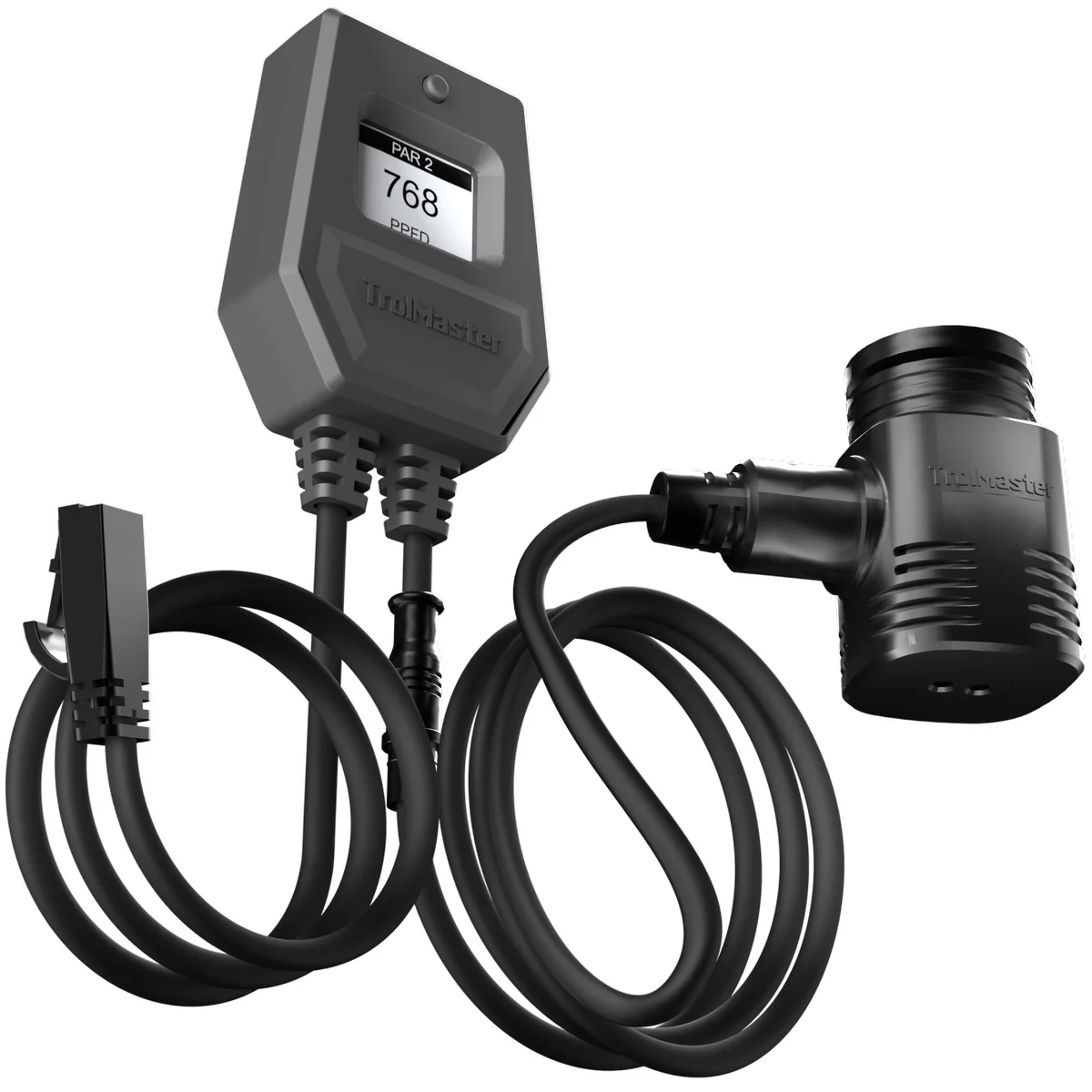

MBS-PARFull Spectrum Quantum Sensor

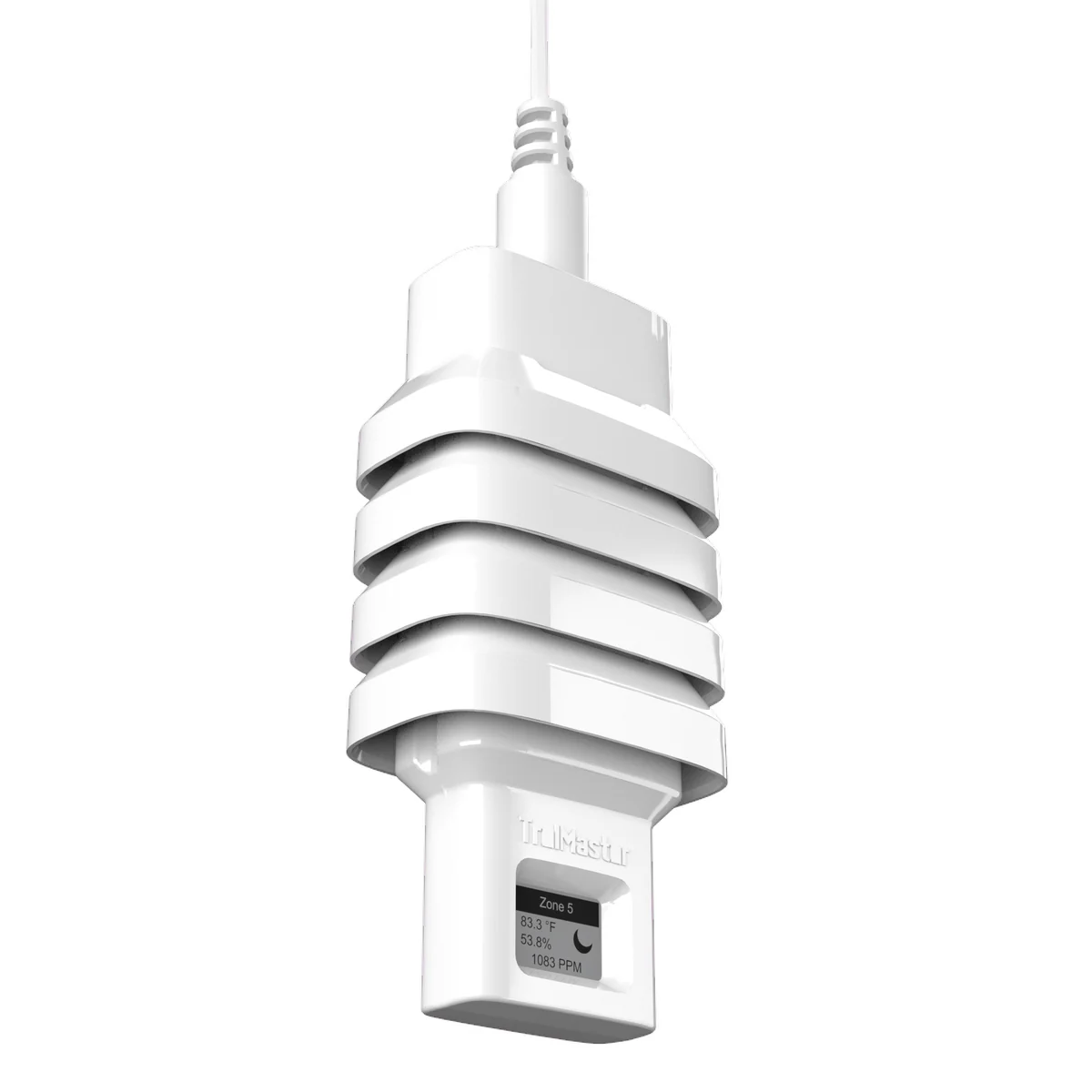

MBS-PROTemp/Humid/CO2/Light 4-in-1 Sensor for Hydro-X Pro and Hydro-X Plus

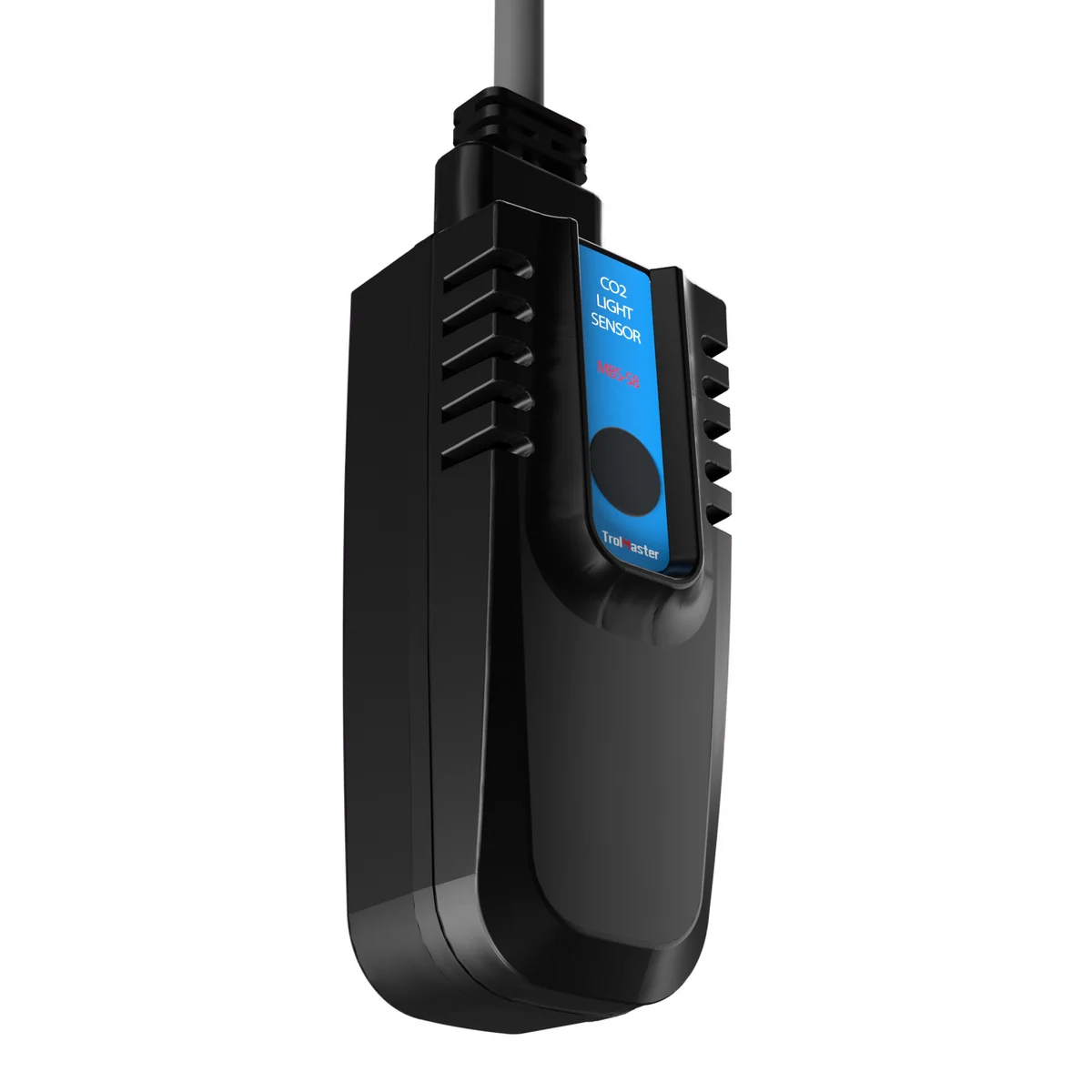

MBS-S8CO2 Sensor for Hydro-X with cable set

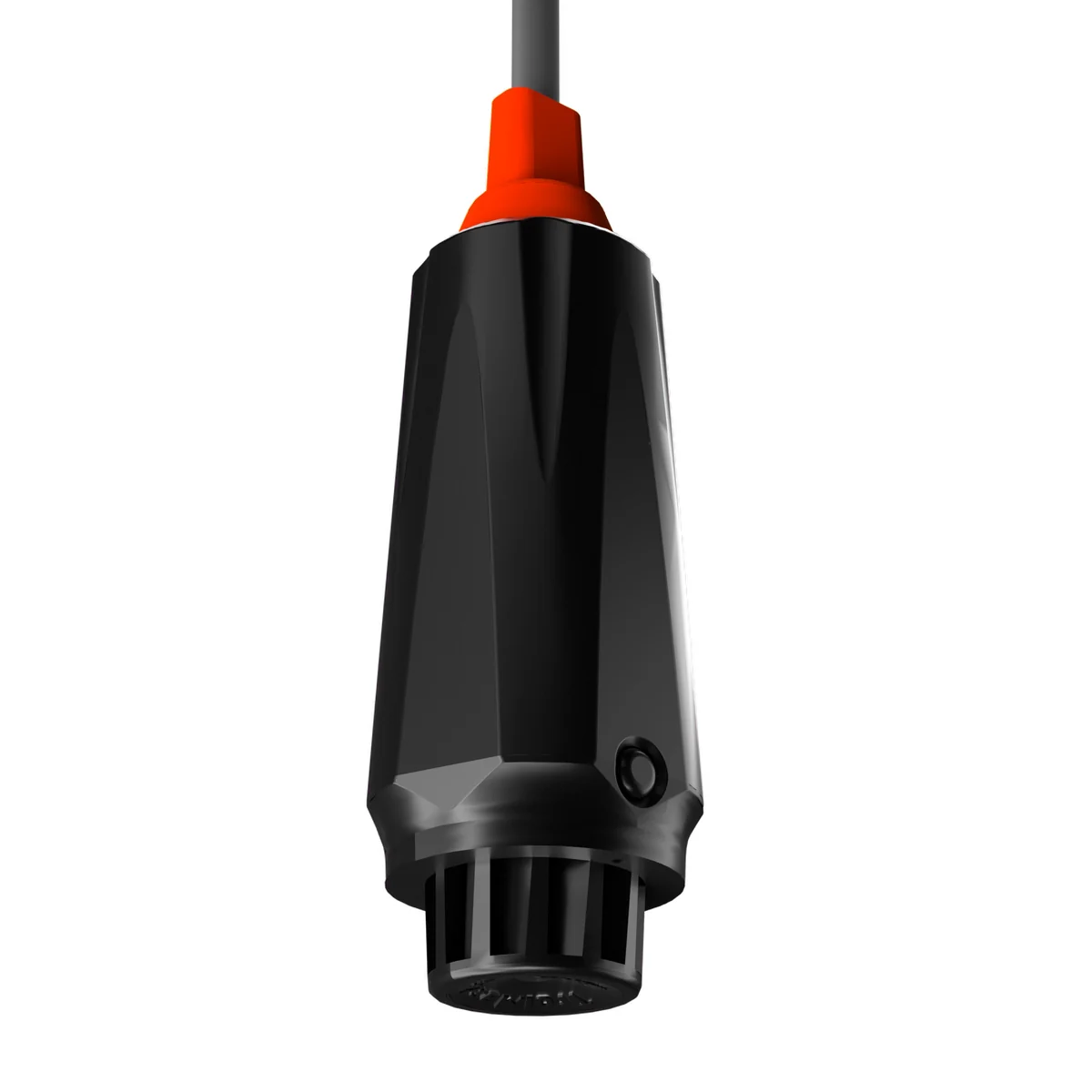

MBS-SDSmoke Detector for Hydro-X with cable set

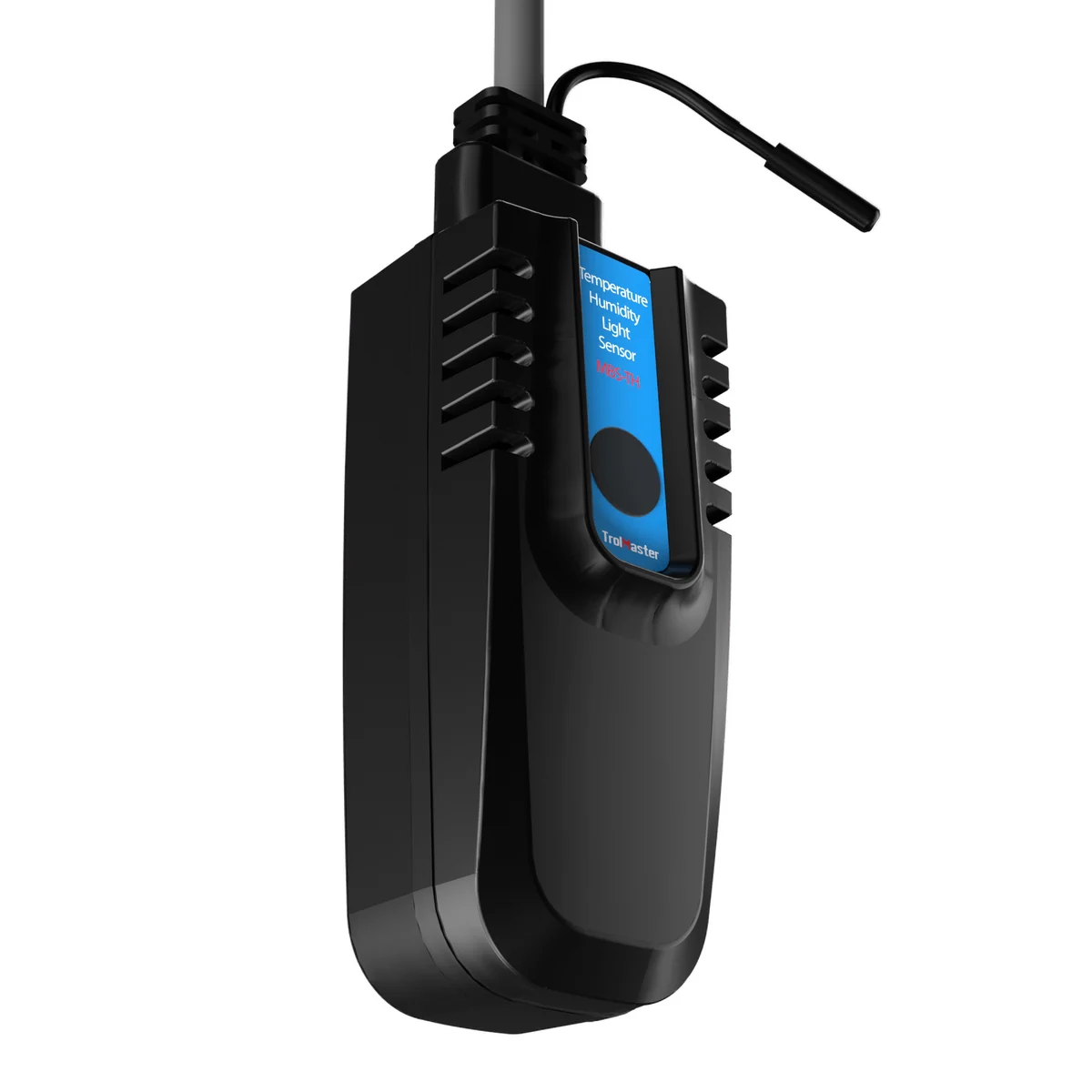

MBS-THReplacement and Backup Temp / Humidity / Light Sensor for Hydro-X

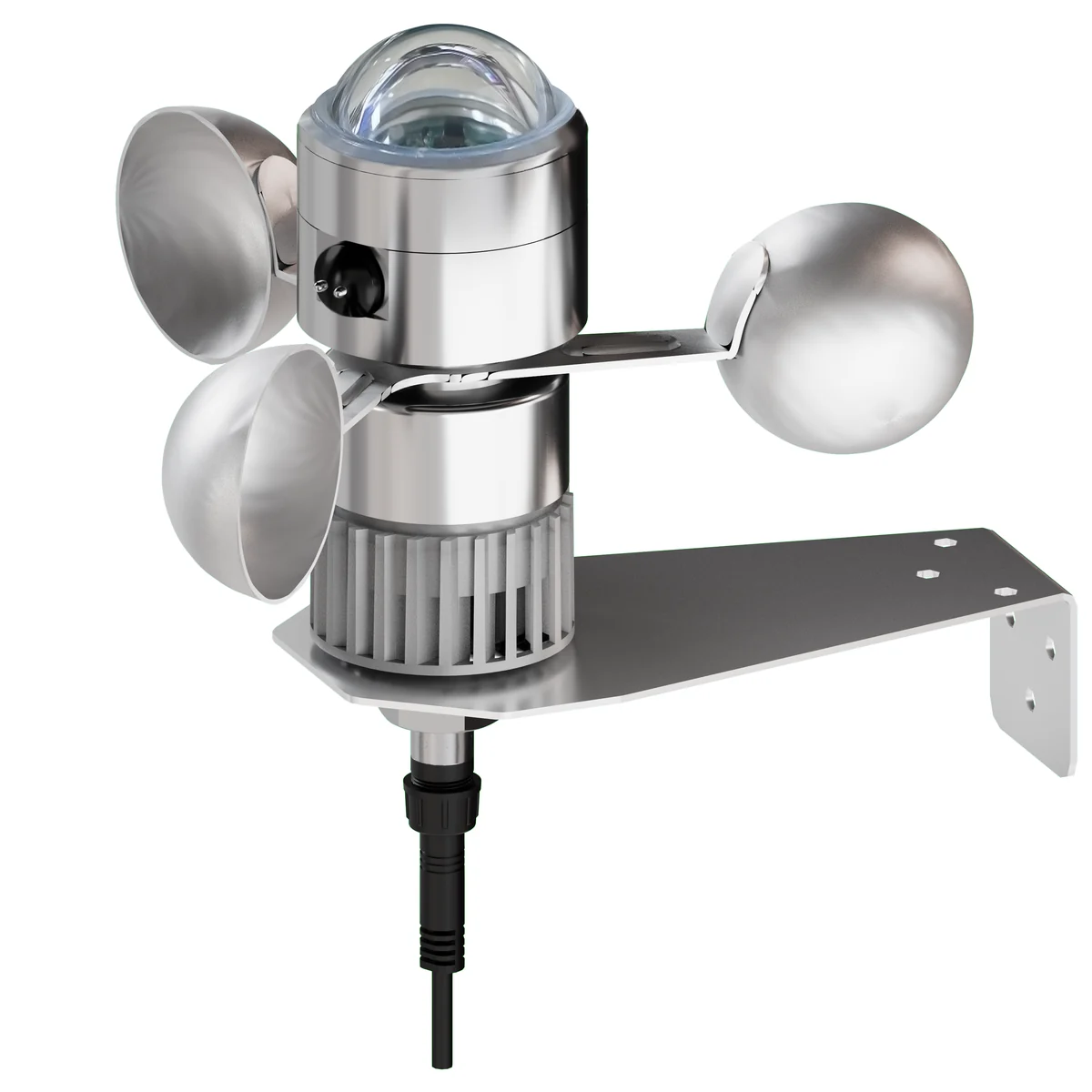

MBS-WSWeather Station Sensor for Green-X Controller jas

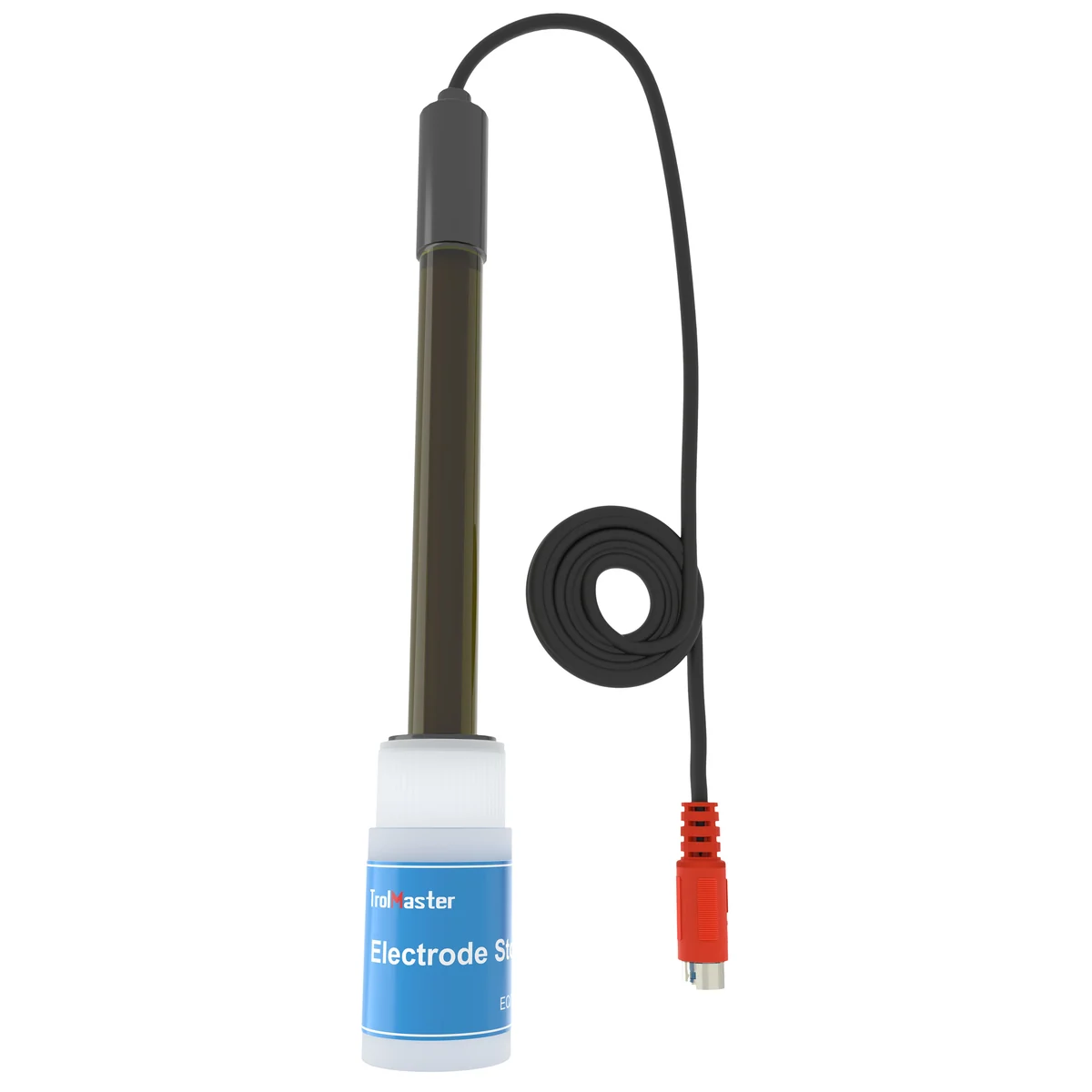

PCT-12-in-1 EC + Temp Sensor for Reservoir

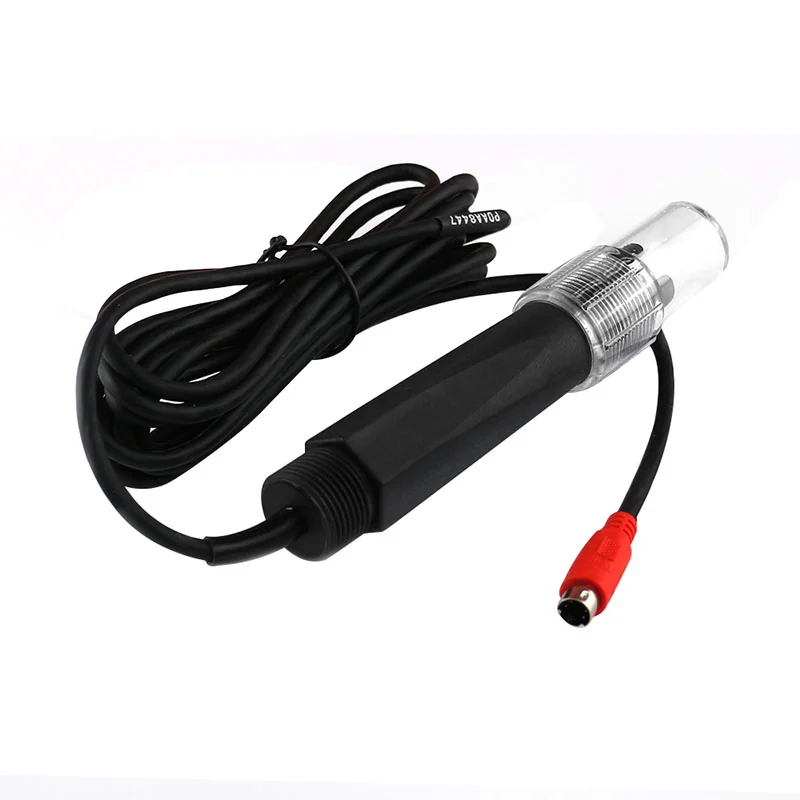

PCT-2Inline EC+Temp Sensor, Heavy Duty

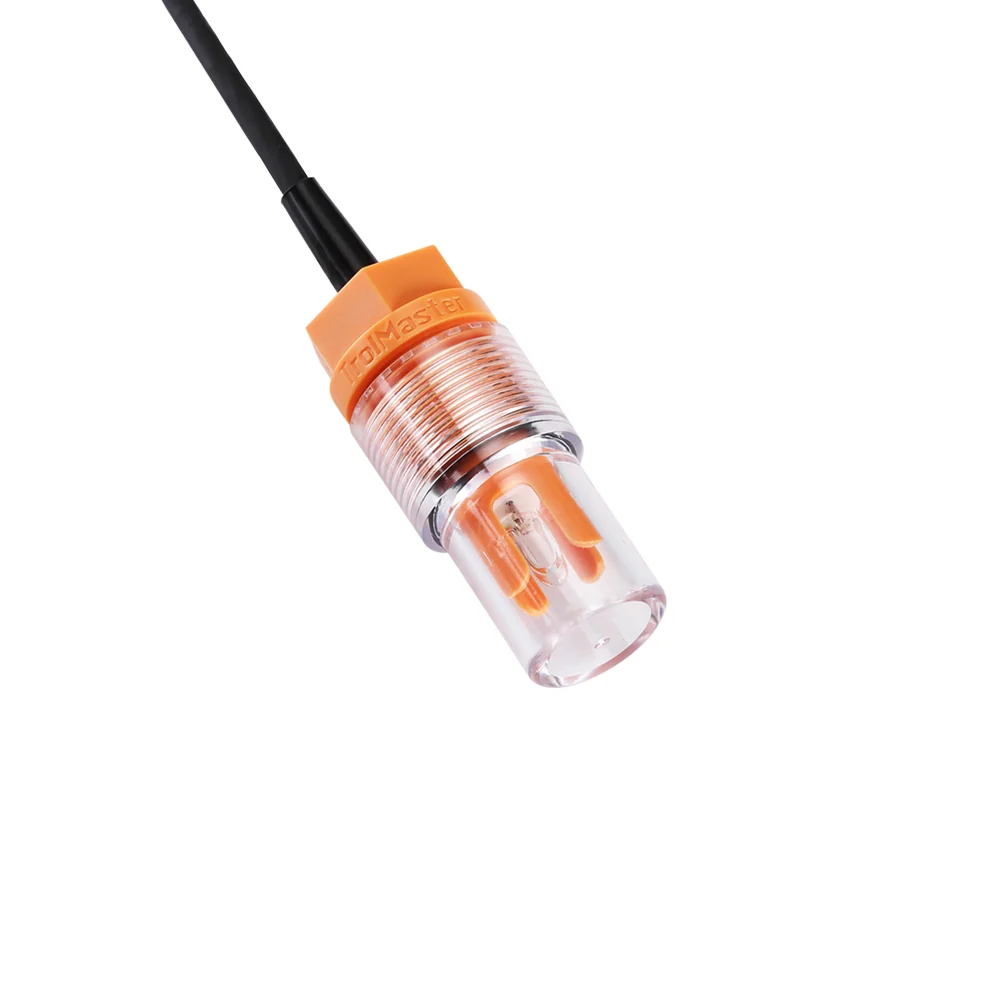

PCT-3Heavy Duty Nutrient EC+Temp Sensor, drop-in/in-line compatible

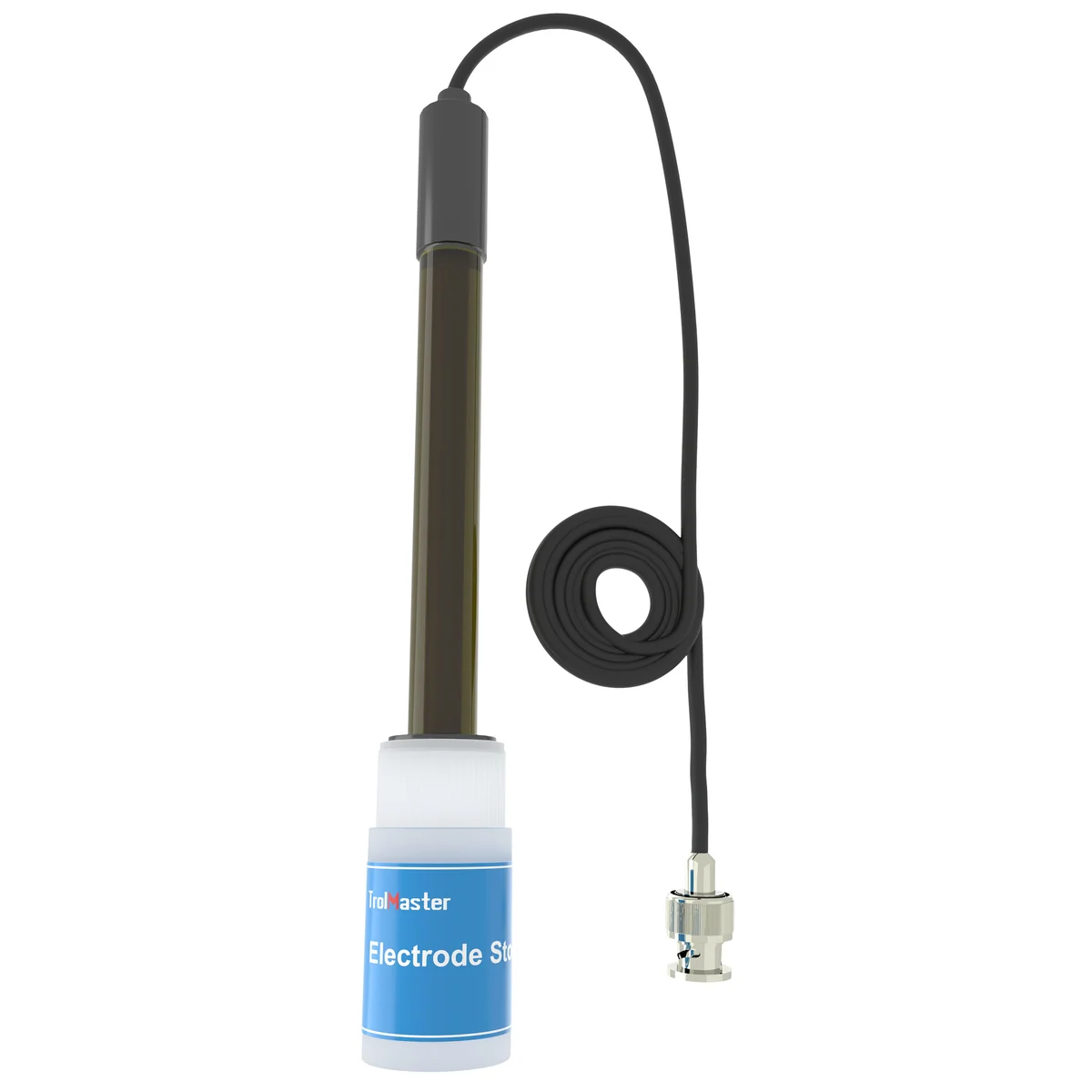

PPH-1pH Sensor for Reservoir

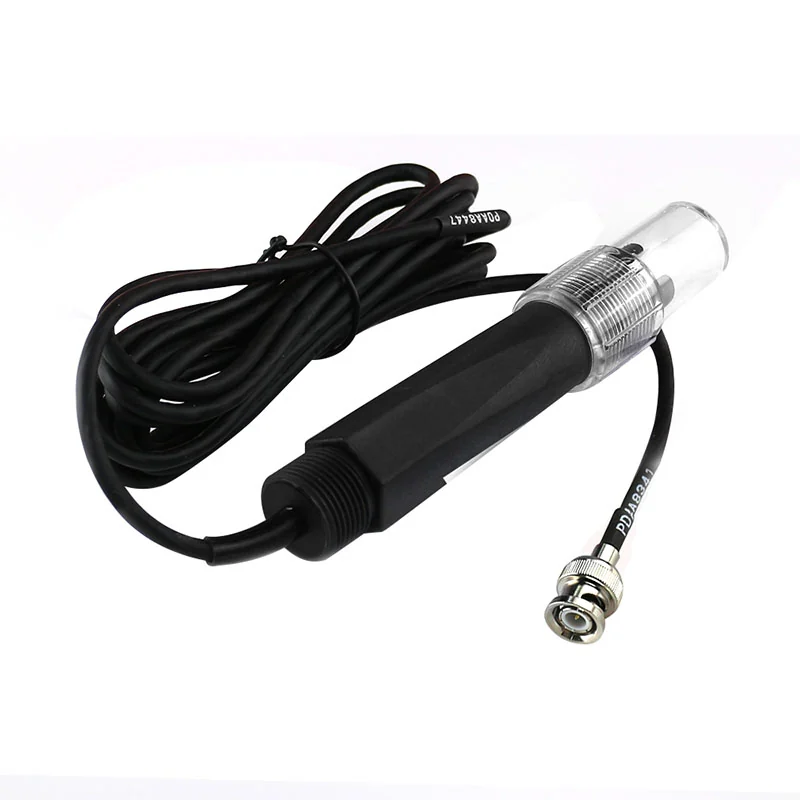

PPH-2Inline pH Sensor, Heavy Duty

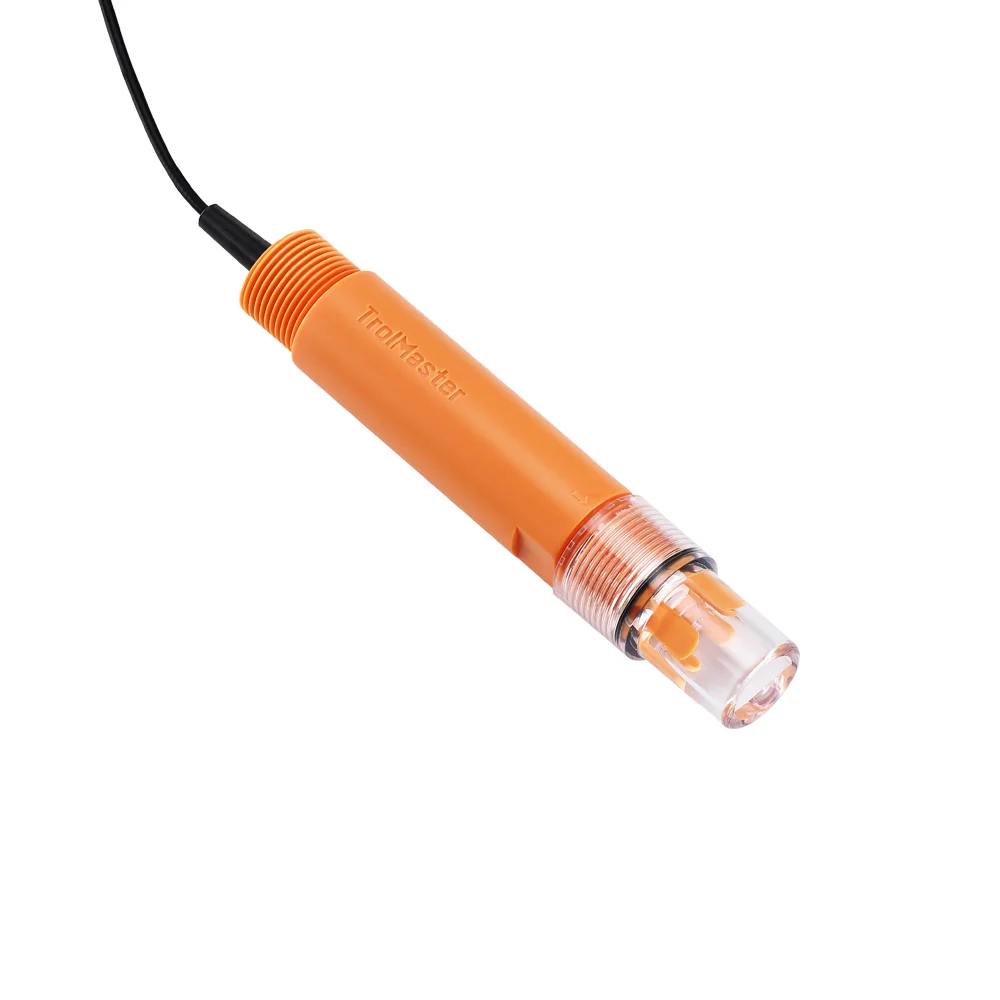

PPH-3Heavy Duty Nutrient pH Sensor, drop-in/in-line compatible
TSB-1TrolMaster Sensor Bracket

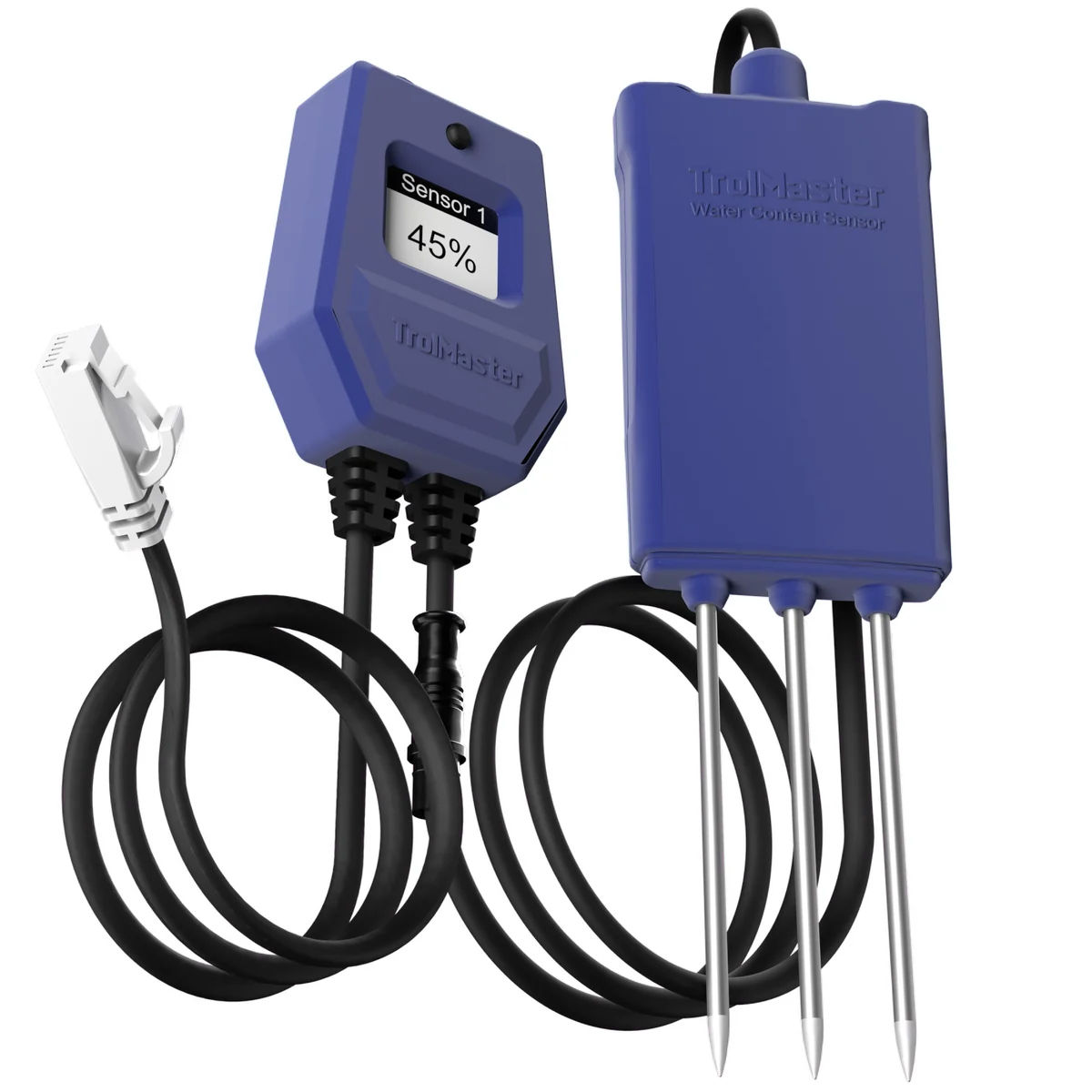

WCS-1Water Content Sensor with Cable Set

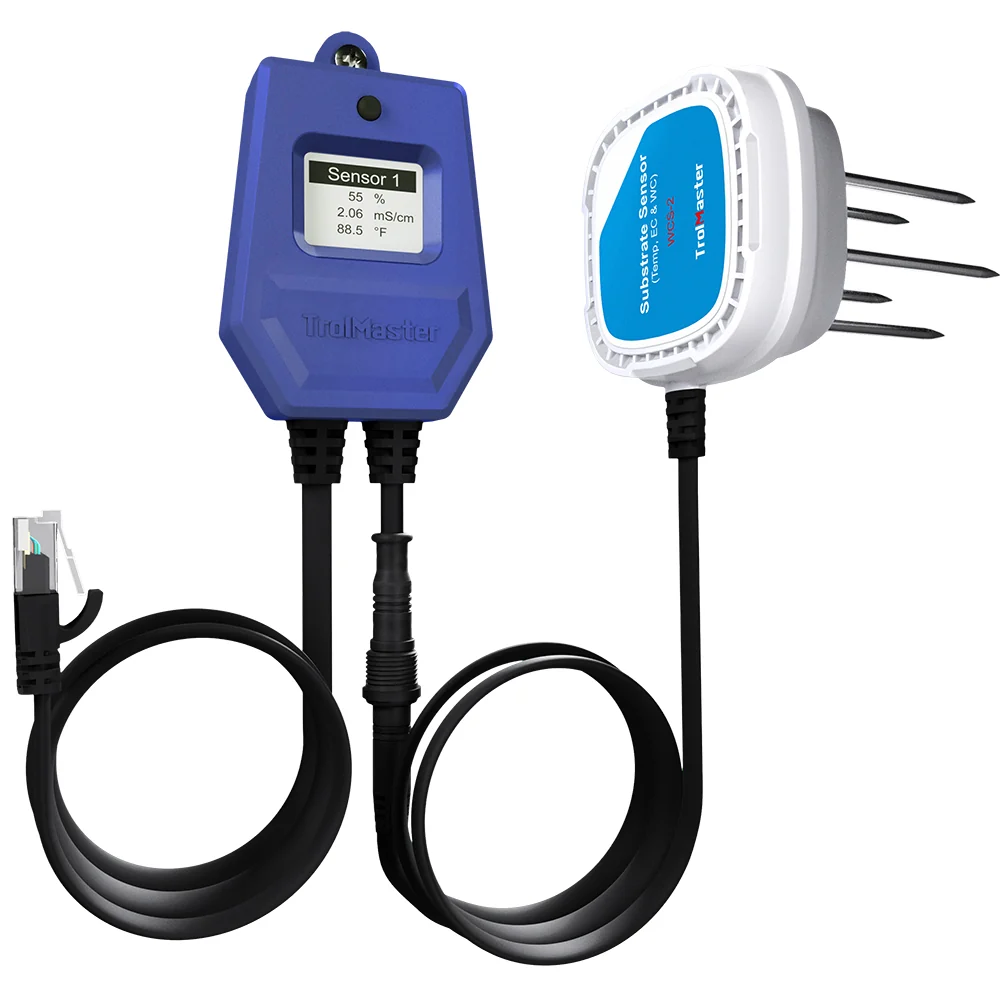

WCS-2Soil Moisture, Temp and EC 3-in-1 Sensor with cable set

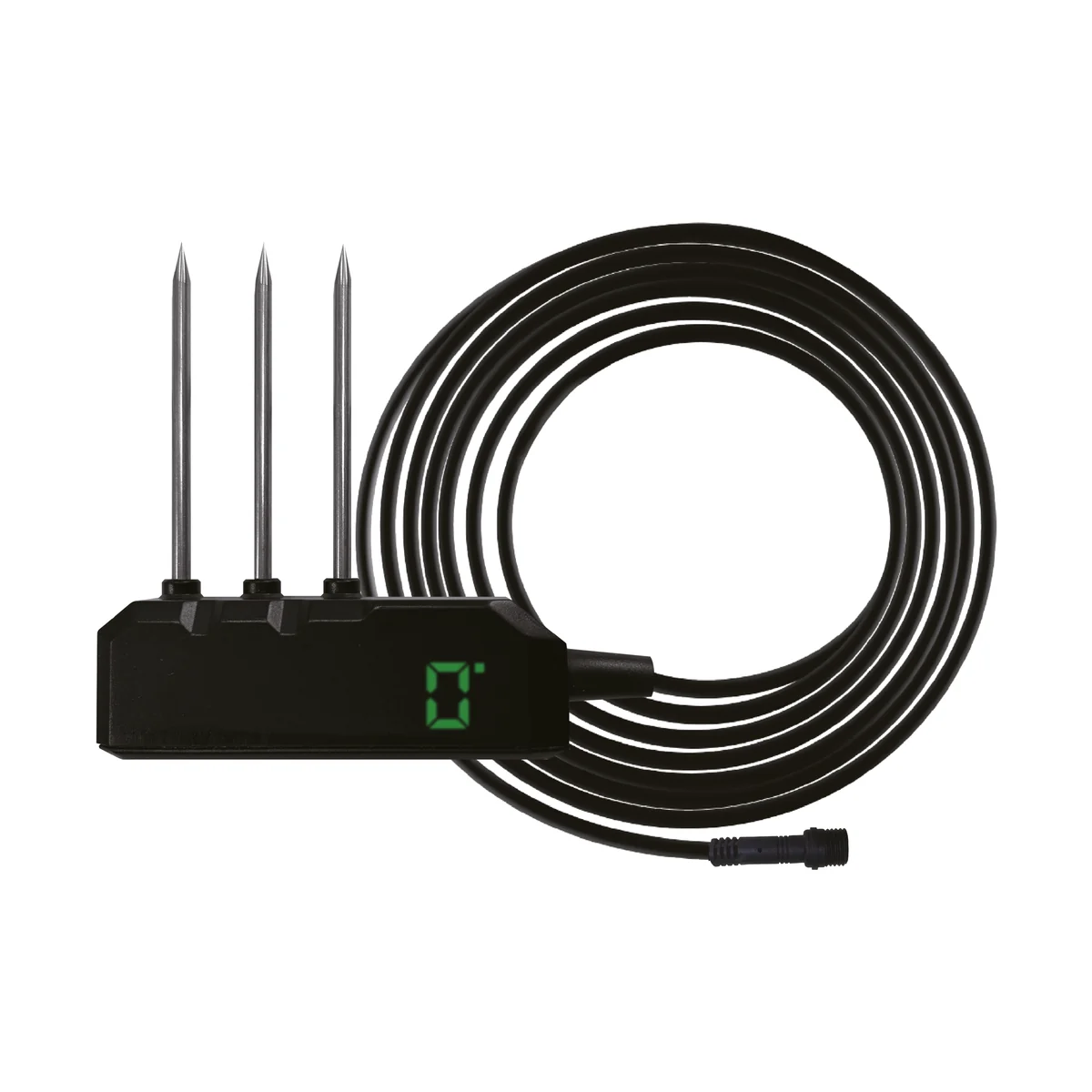

WCS-3Water Content Sensor 3 with splitter cable set

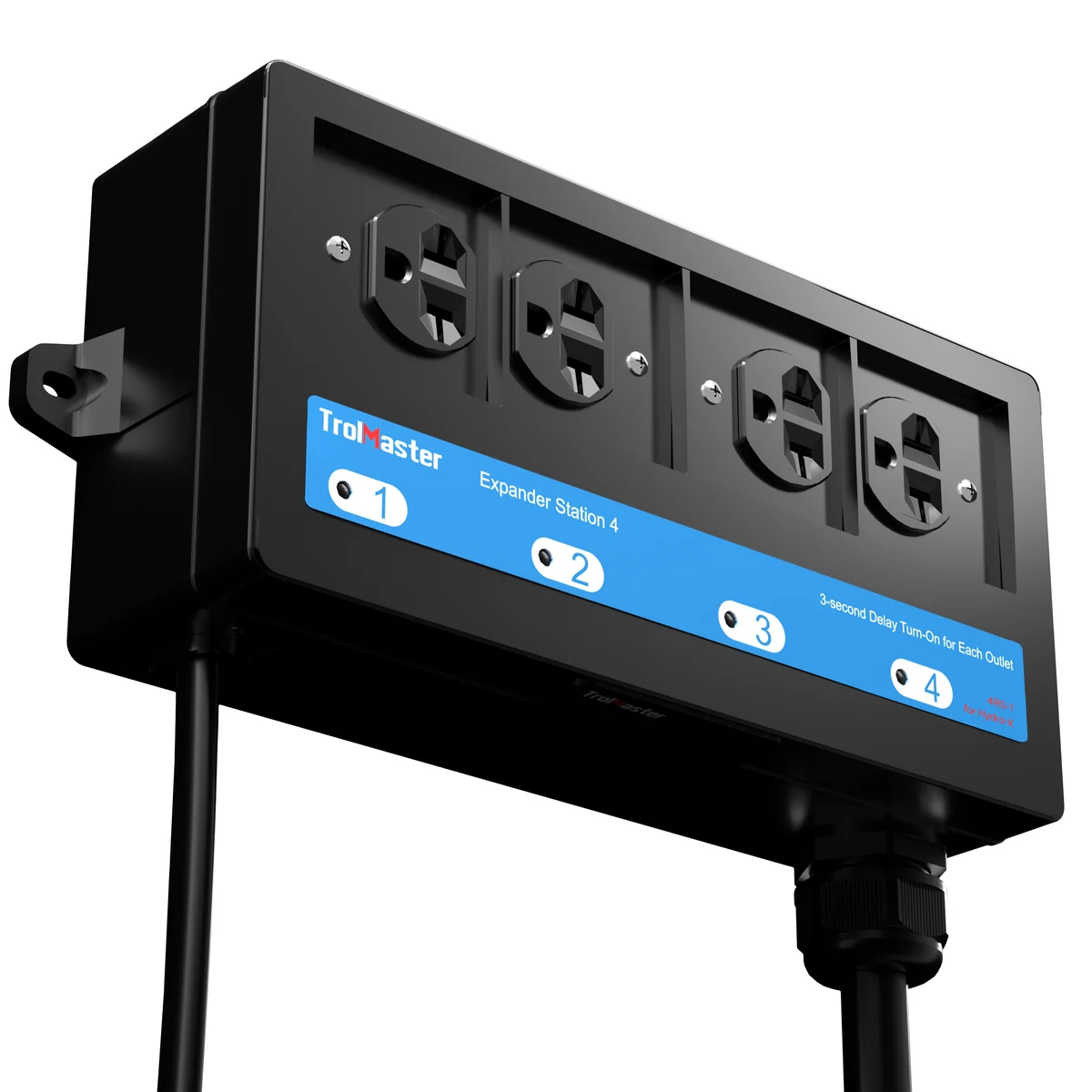

4RS-14 outlet expander station with trigger cable for multiple devices control

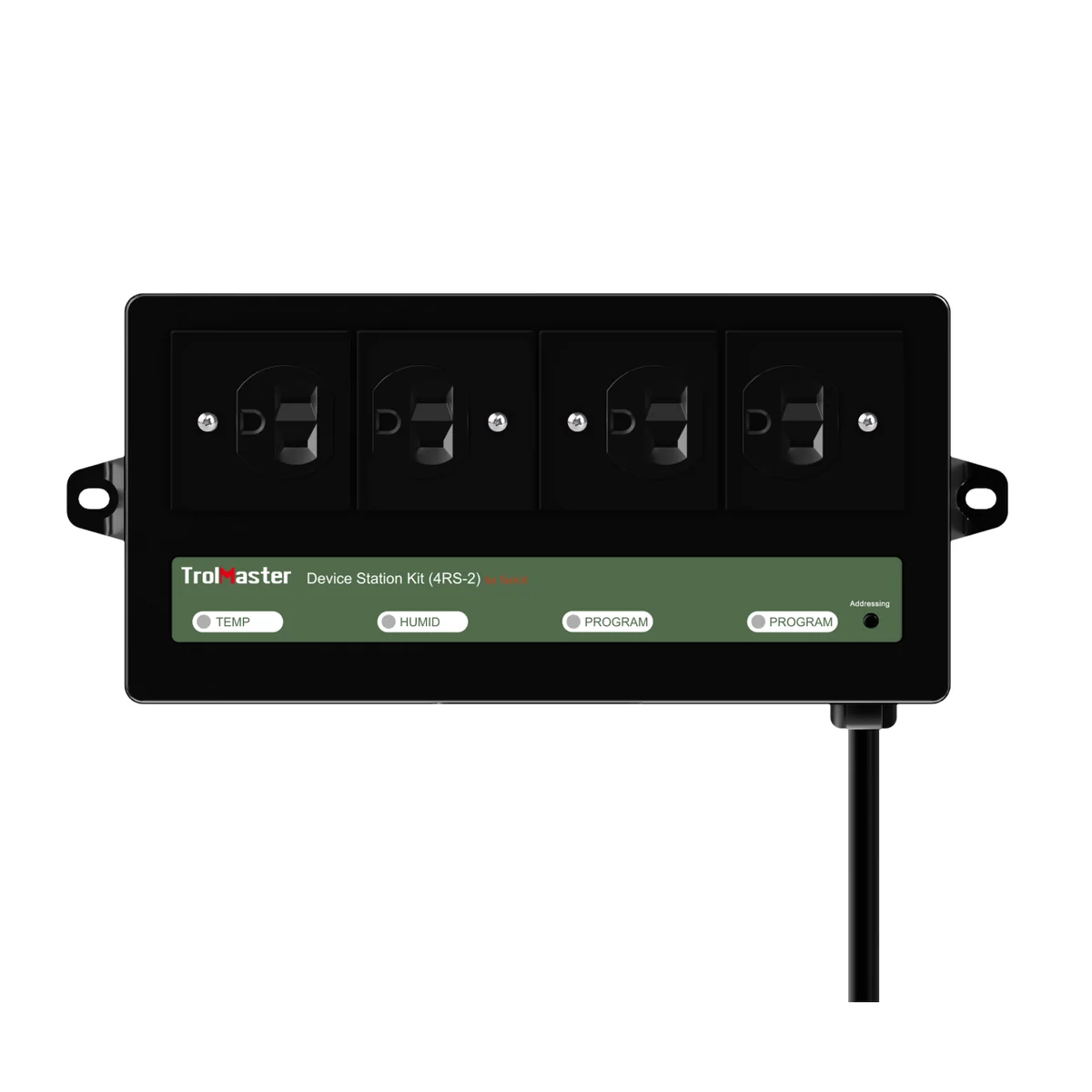

4RS-2Device Station Kit with 4 control outlets including 1x DST, 1x DSH and 2x DSP

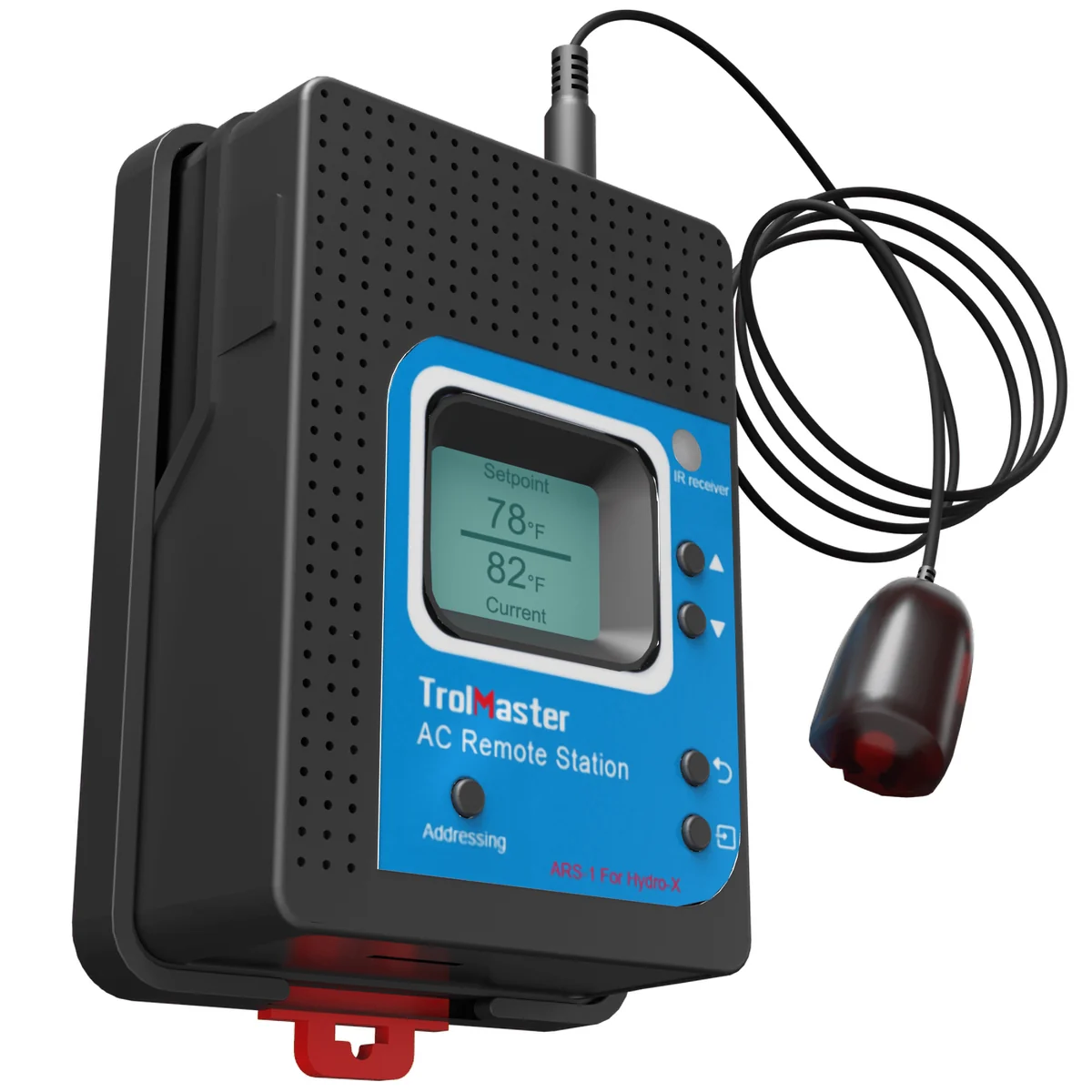

ARS-1AC Remote Station, Universal Remote Control for any remote controlled AC such …

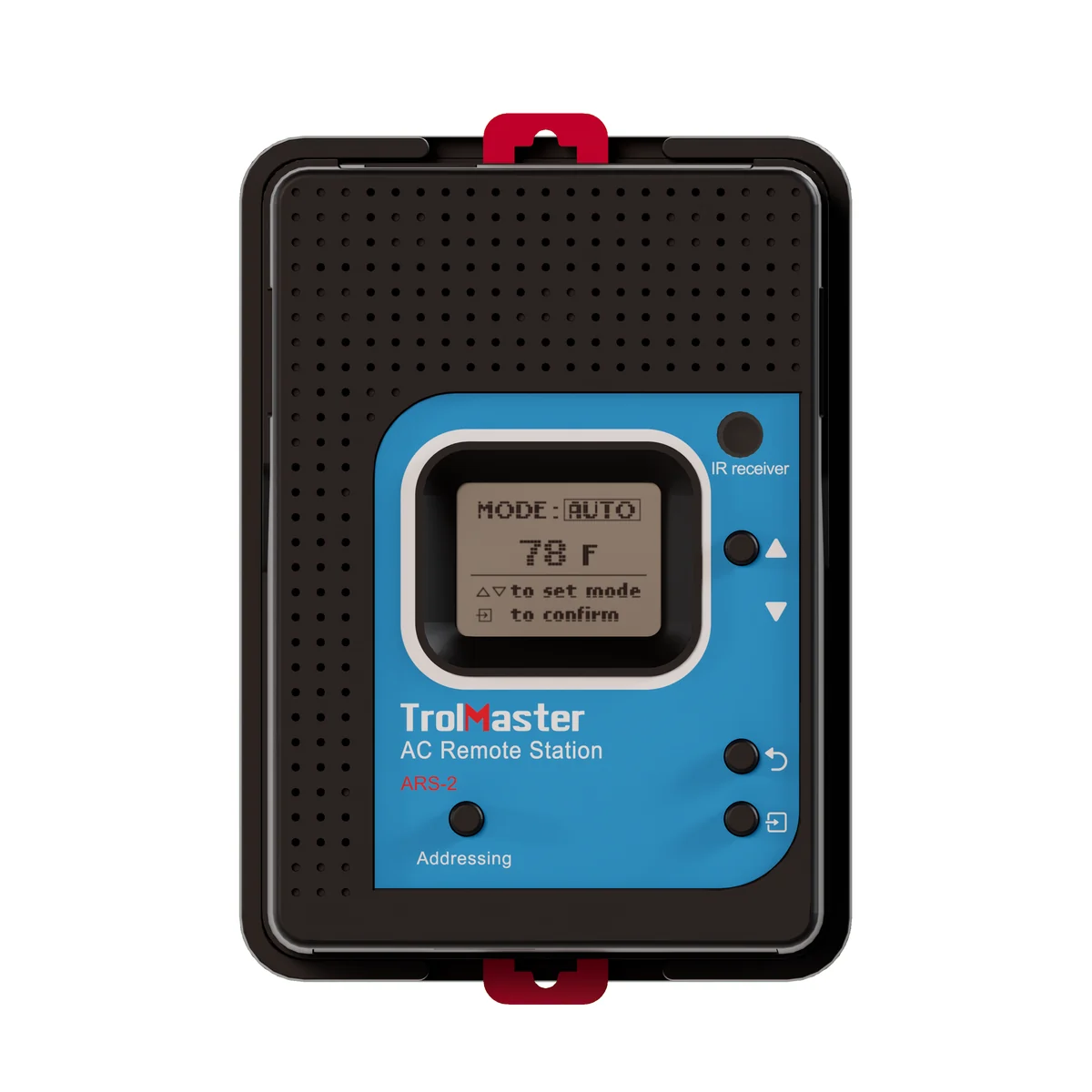

ARS-2AC Remote Station, Universal Remote Control for any remote controlled Heat & C…

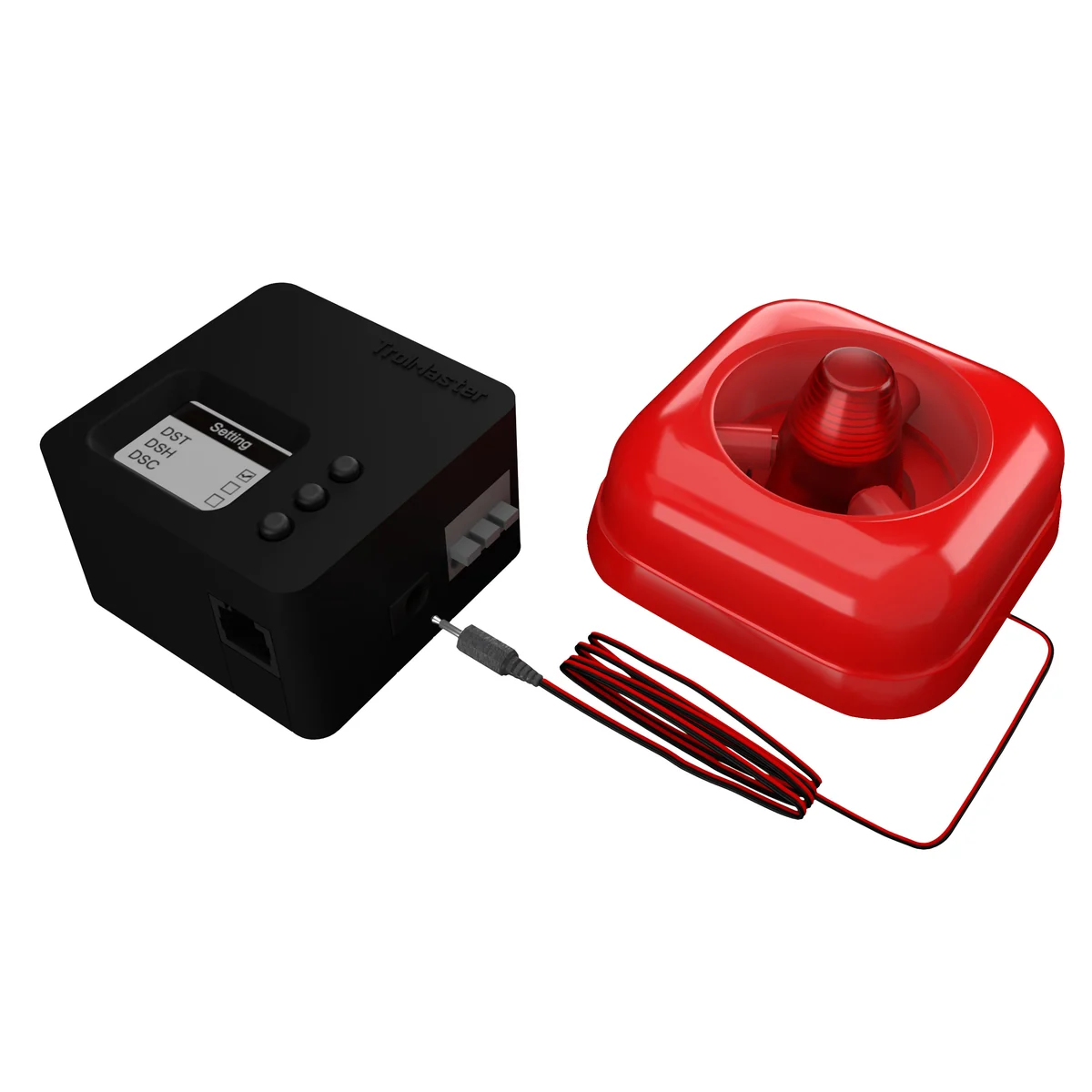

AS-1CO2 Alarm Station (audio/visual) with cable set

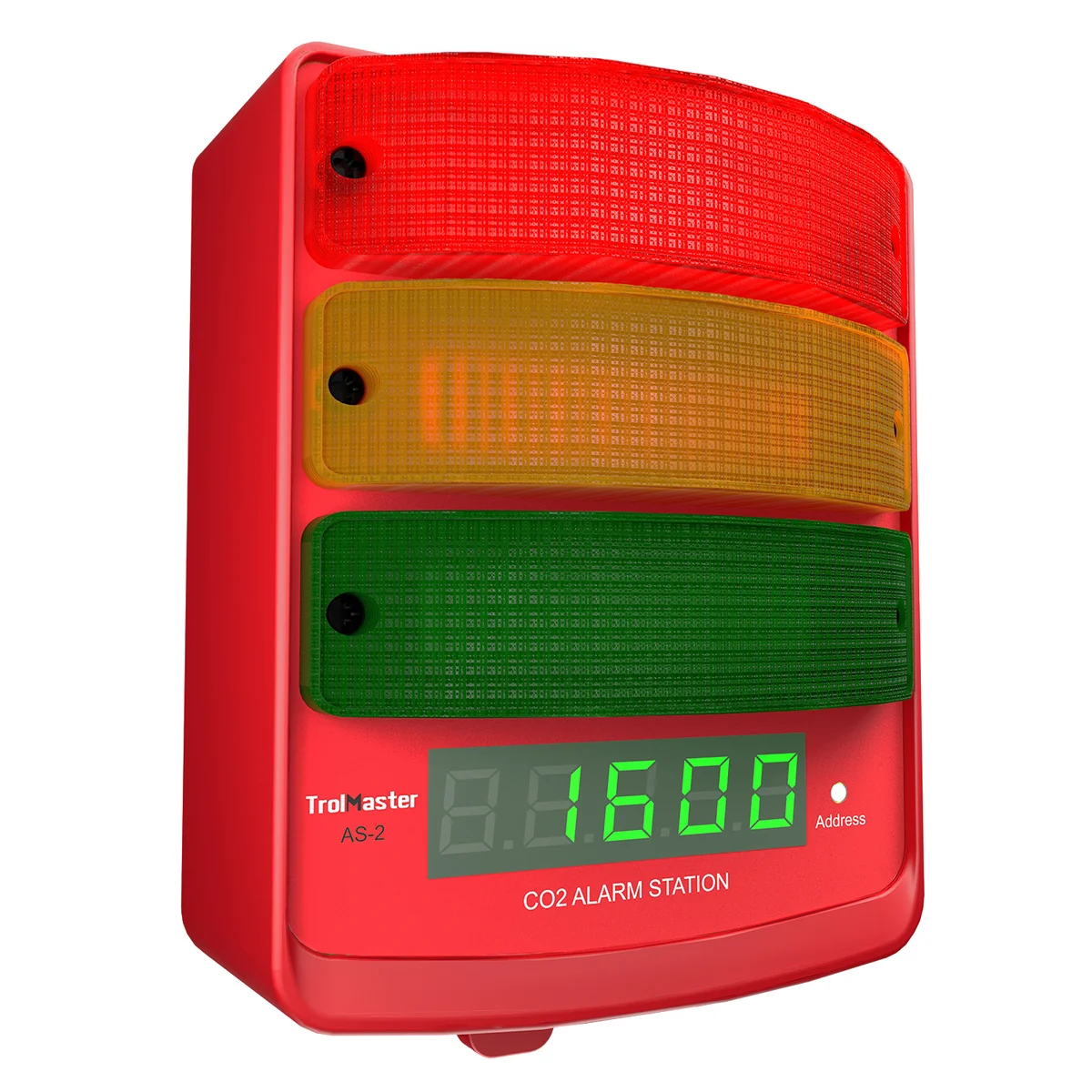

AS-2CO2 Alarm Station (audio/visual) plus LED display indicator with cable set

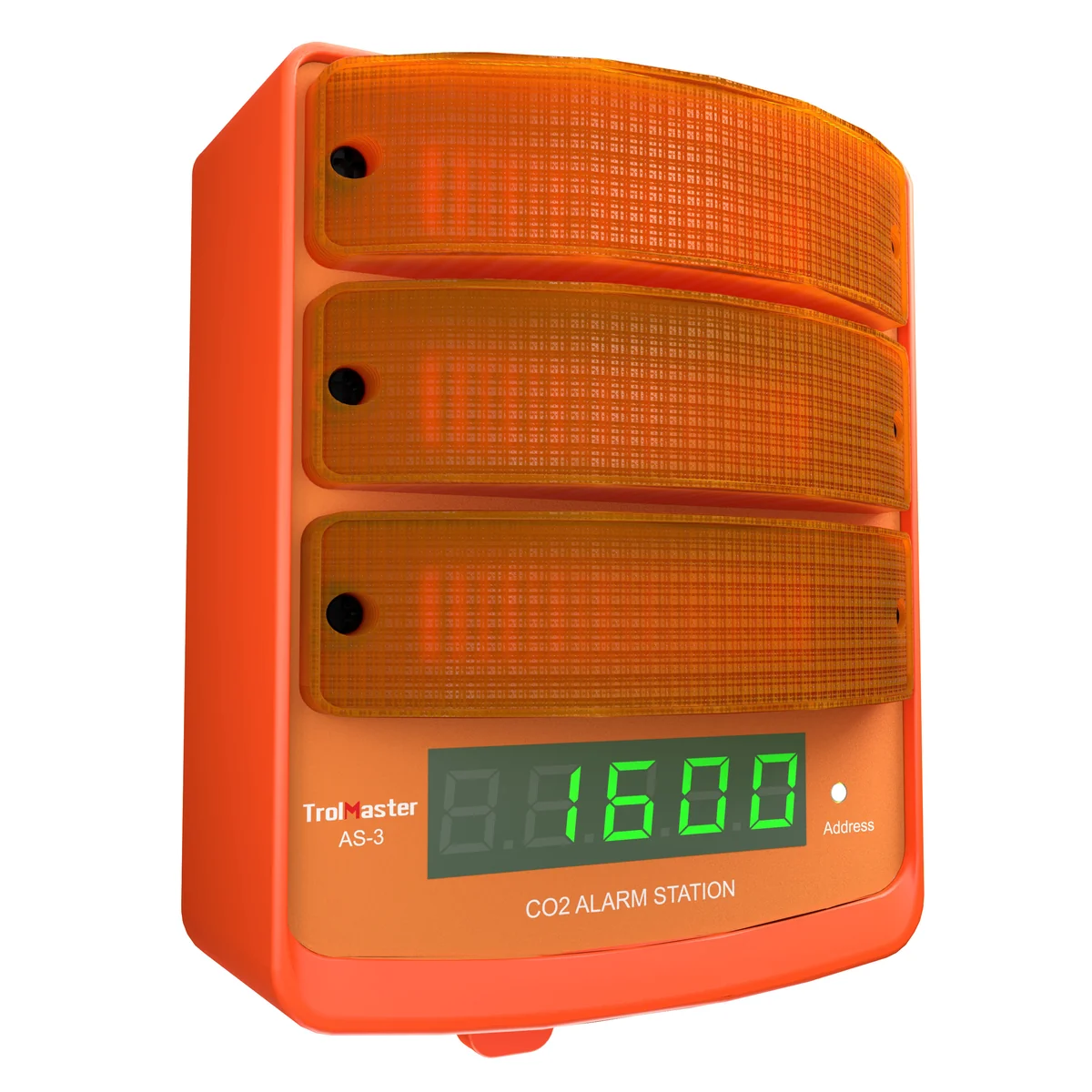

AS-3CO2 Alarm Station (amber light)

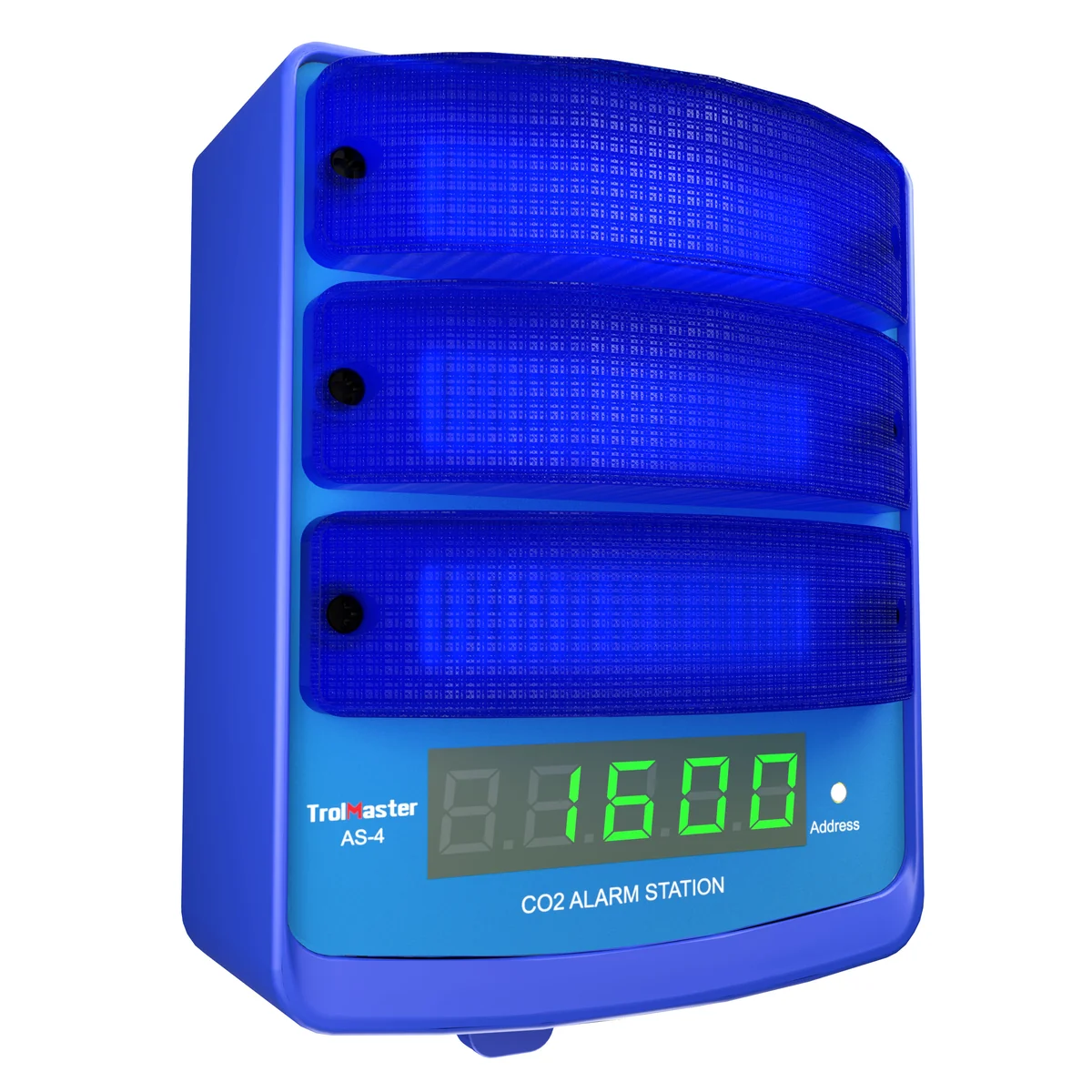

AS-4CO2 Alarm Station (blue light)

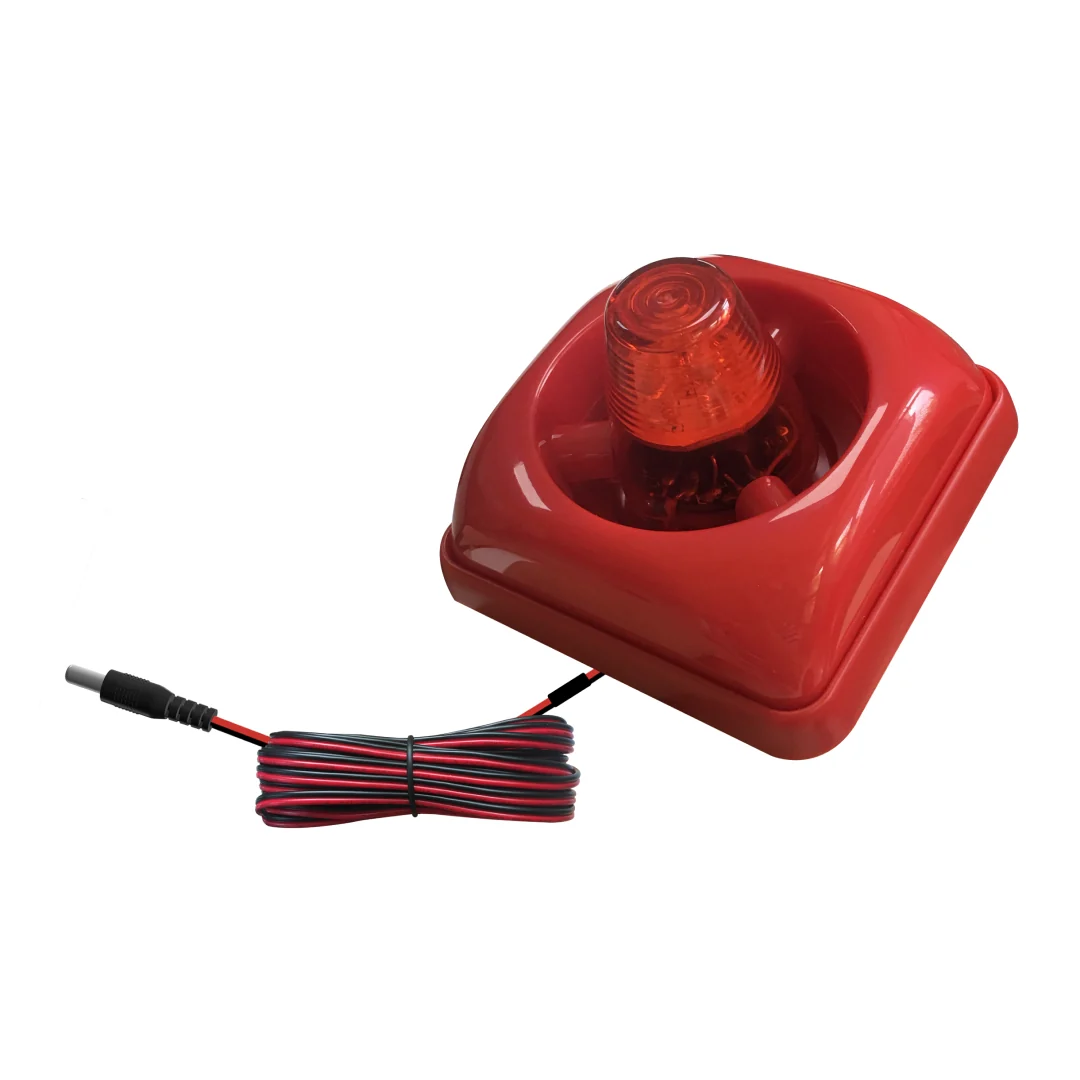

AS-5Alarm Station

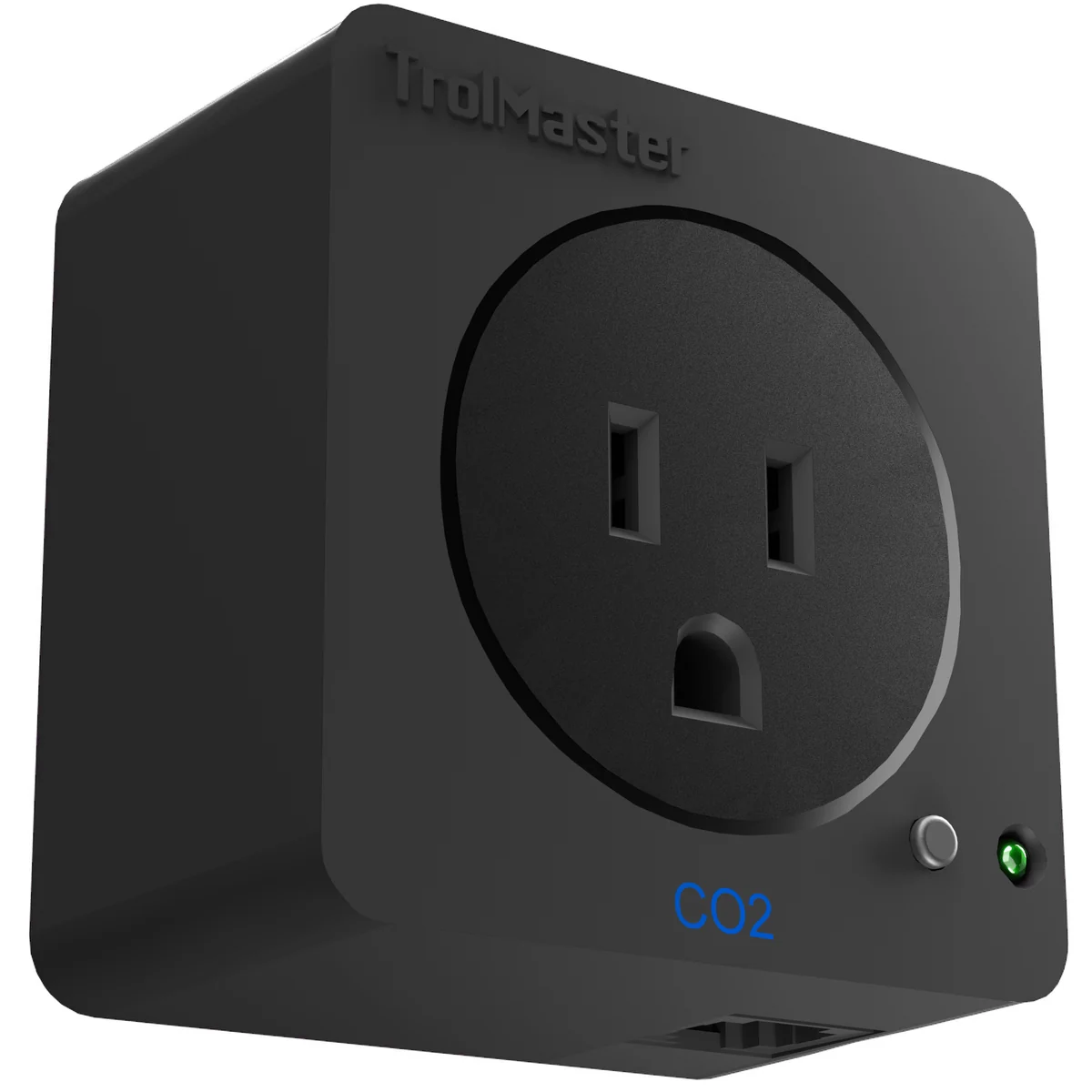

DSC-1CO2 Device Station

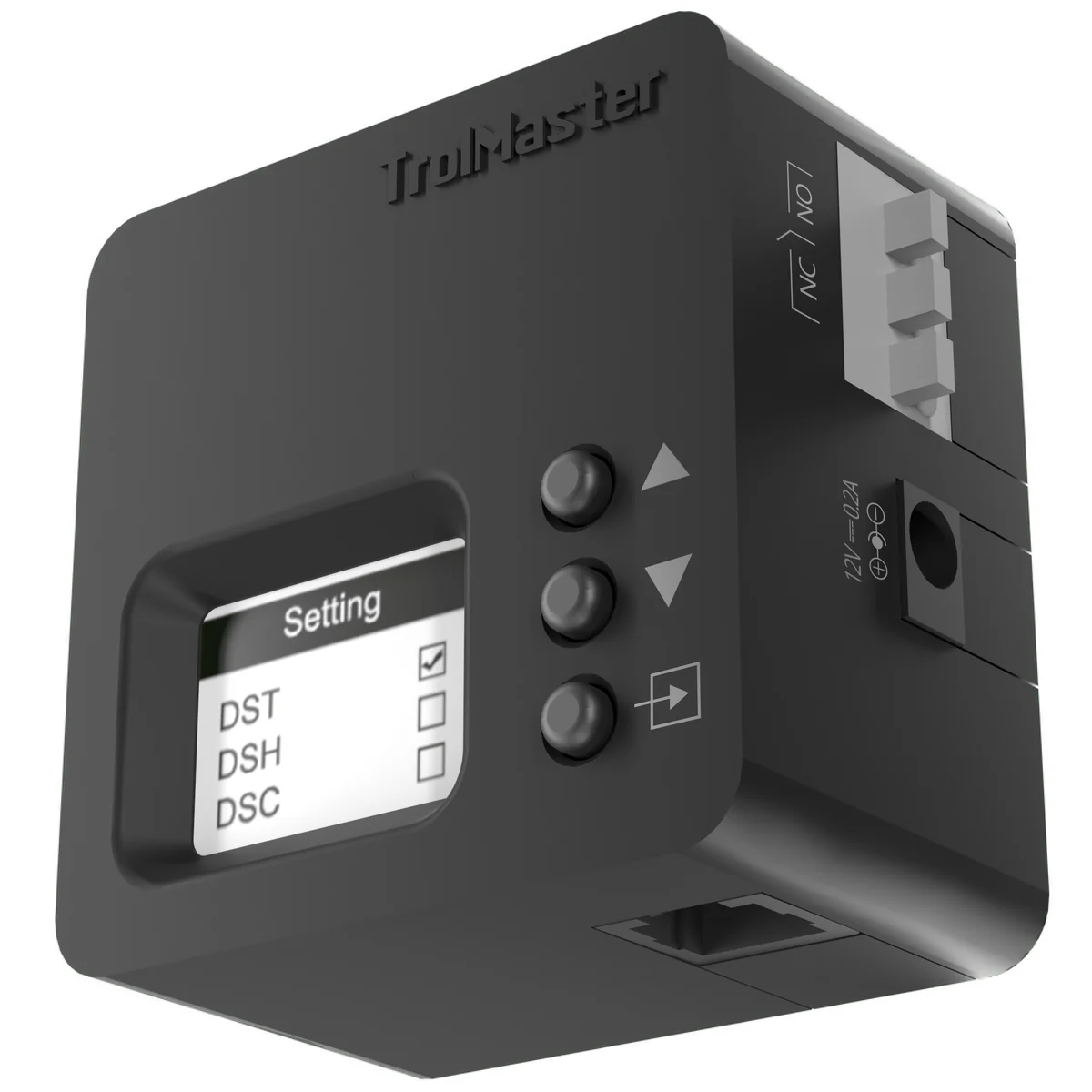

DSD-1Dry Contact Station Single Pack with cable set.

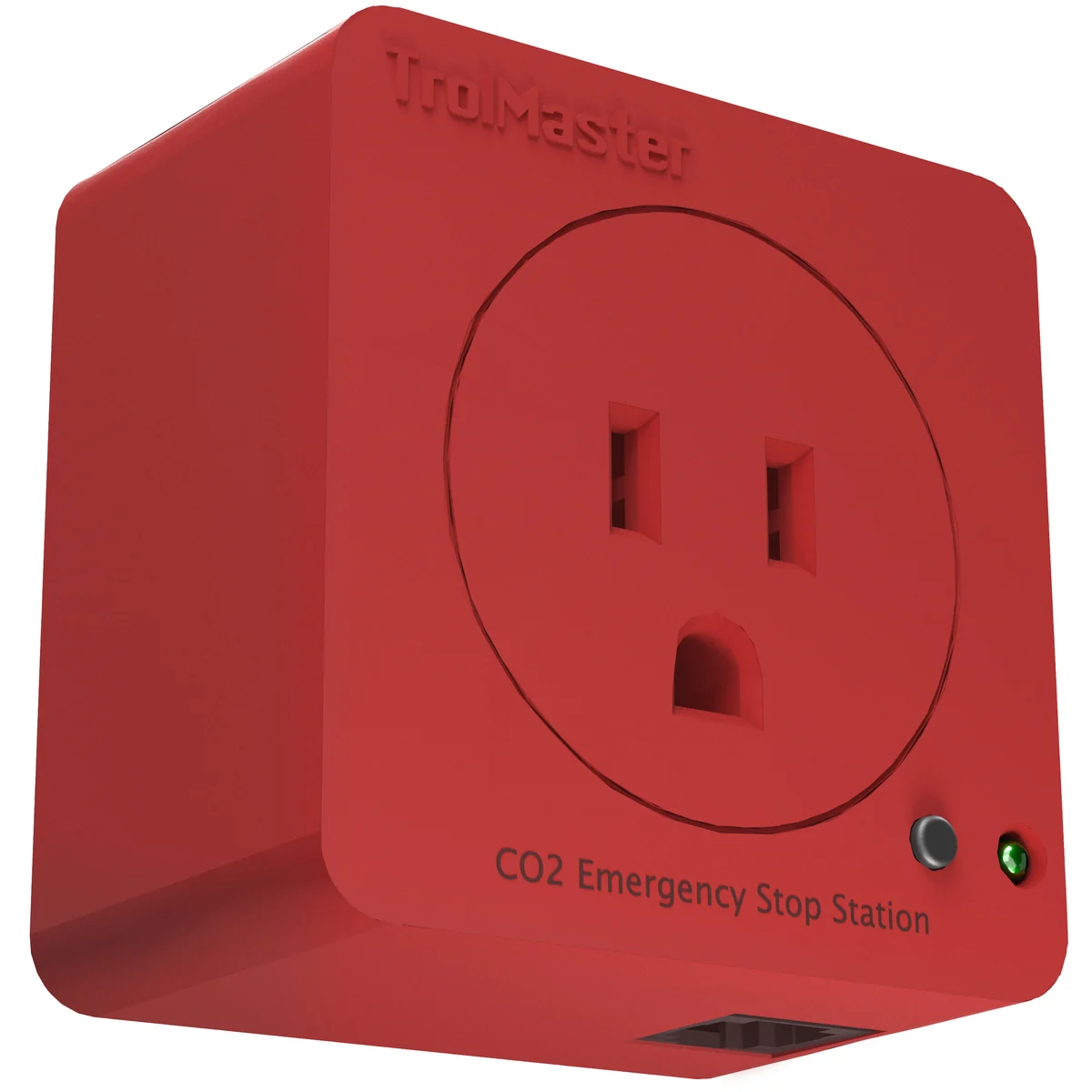

DSE-1Emergency Stop Station with cable set
DSH-1Humidity Device Station
DSH-2240V Humidity Device Station
DSP-1Program Device Station Timer Program Control Relay Single Pack with cable set

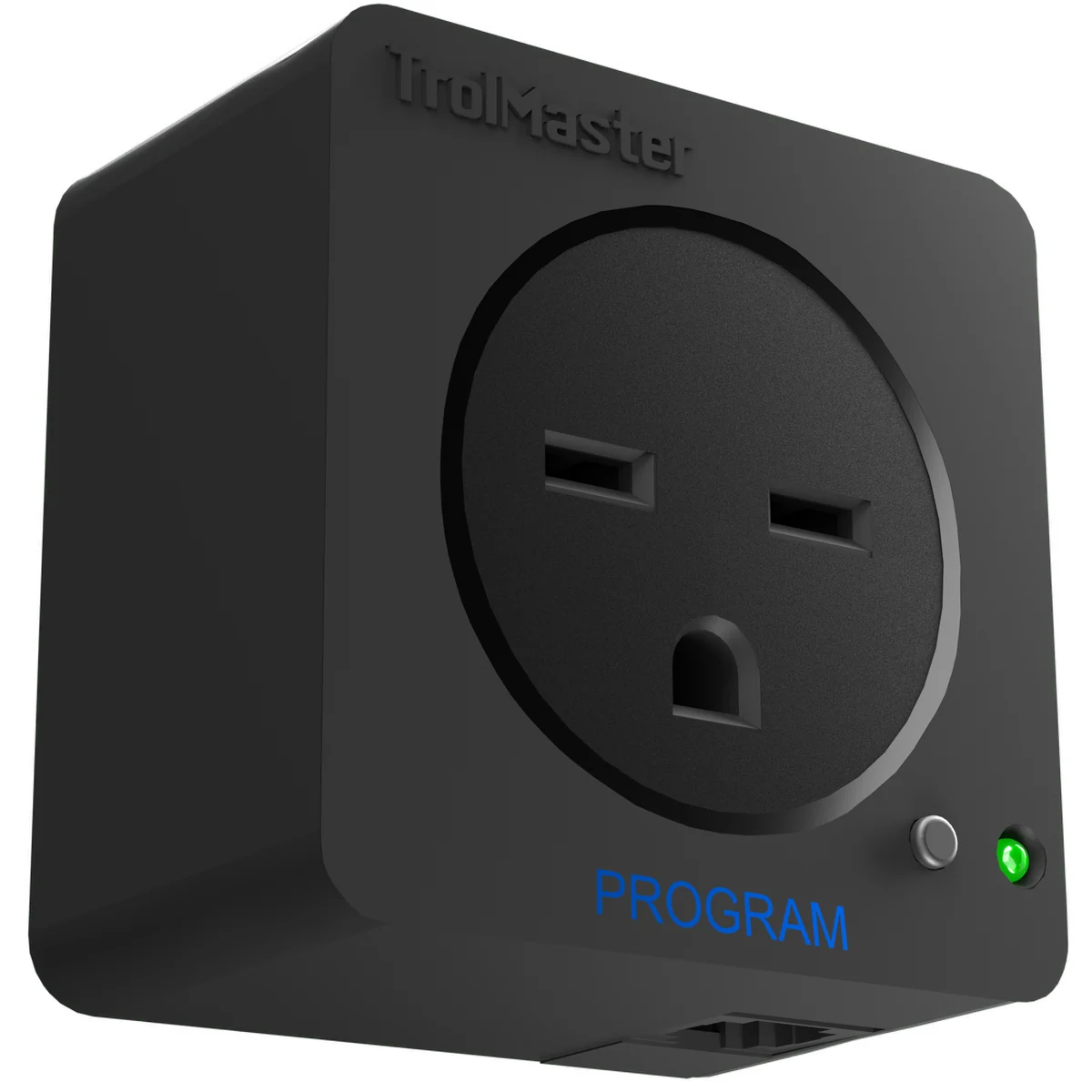

DSP-2240V Program Device Station

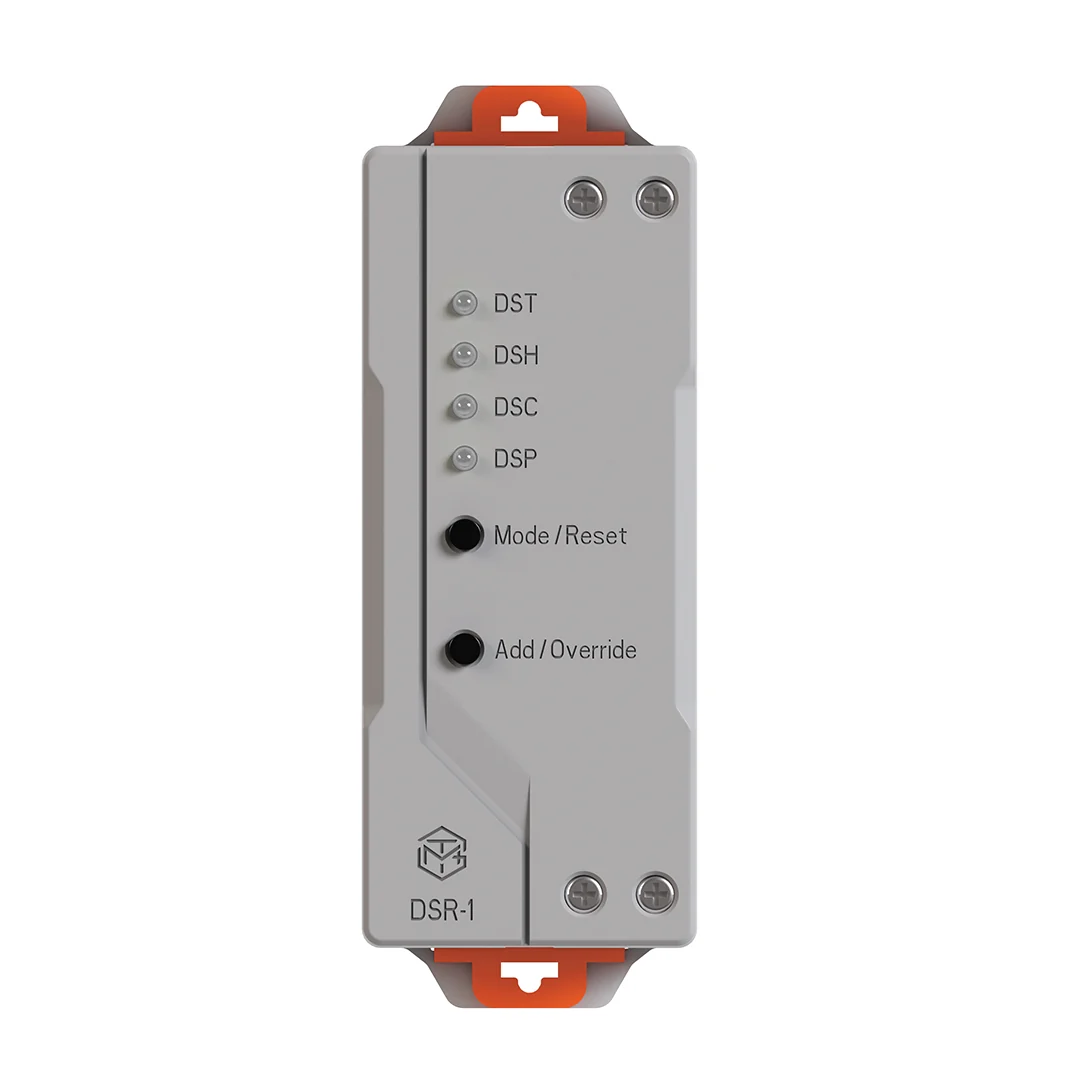

DSR-125Amps Relay Device Station (100-277V)
DST-1Temperature Device Station
DST-2240V Temperature Device Station

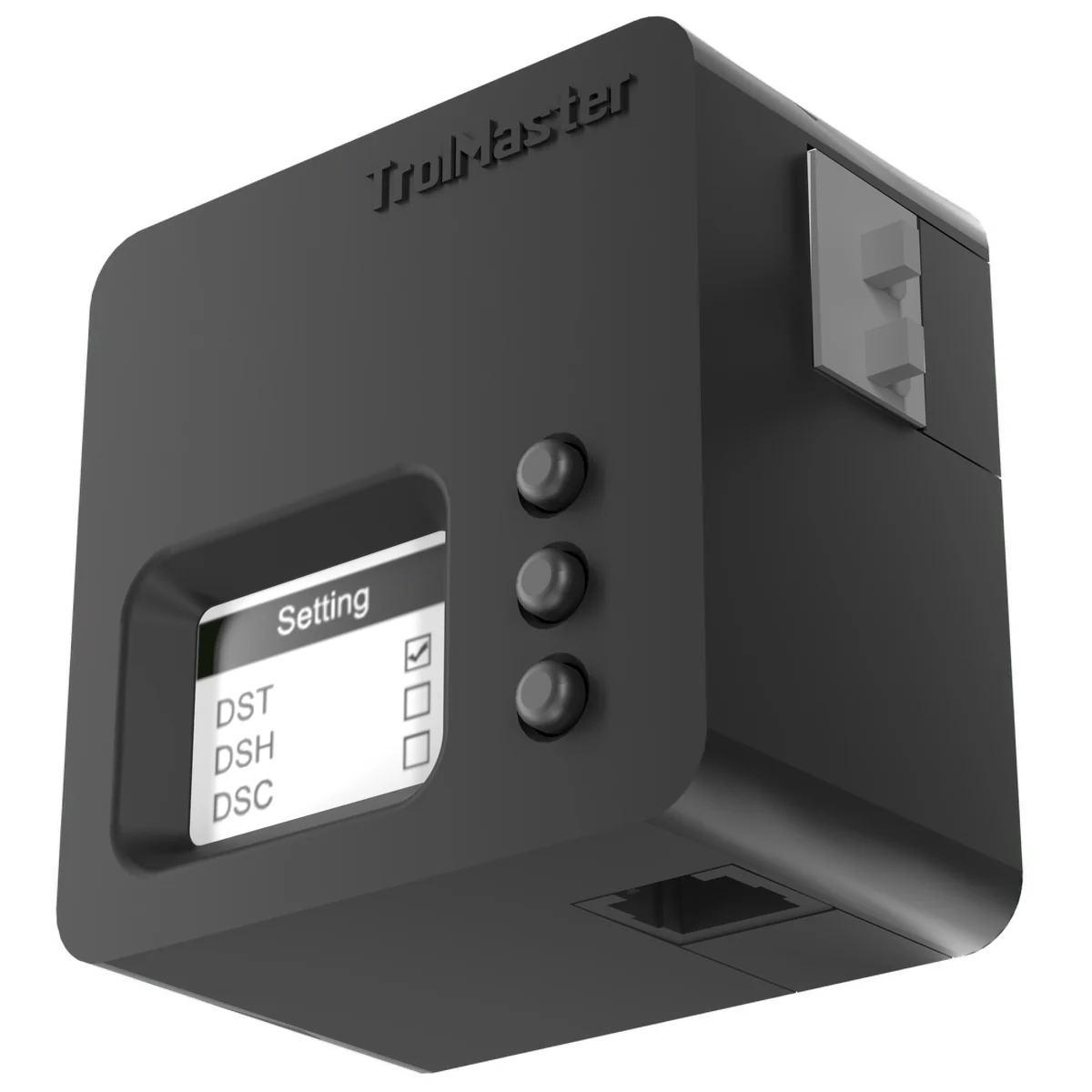

DSV-1TrolMaster Low-Volt Station

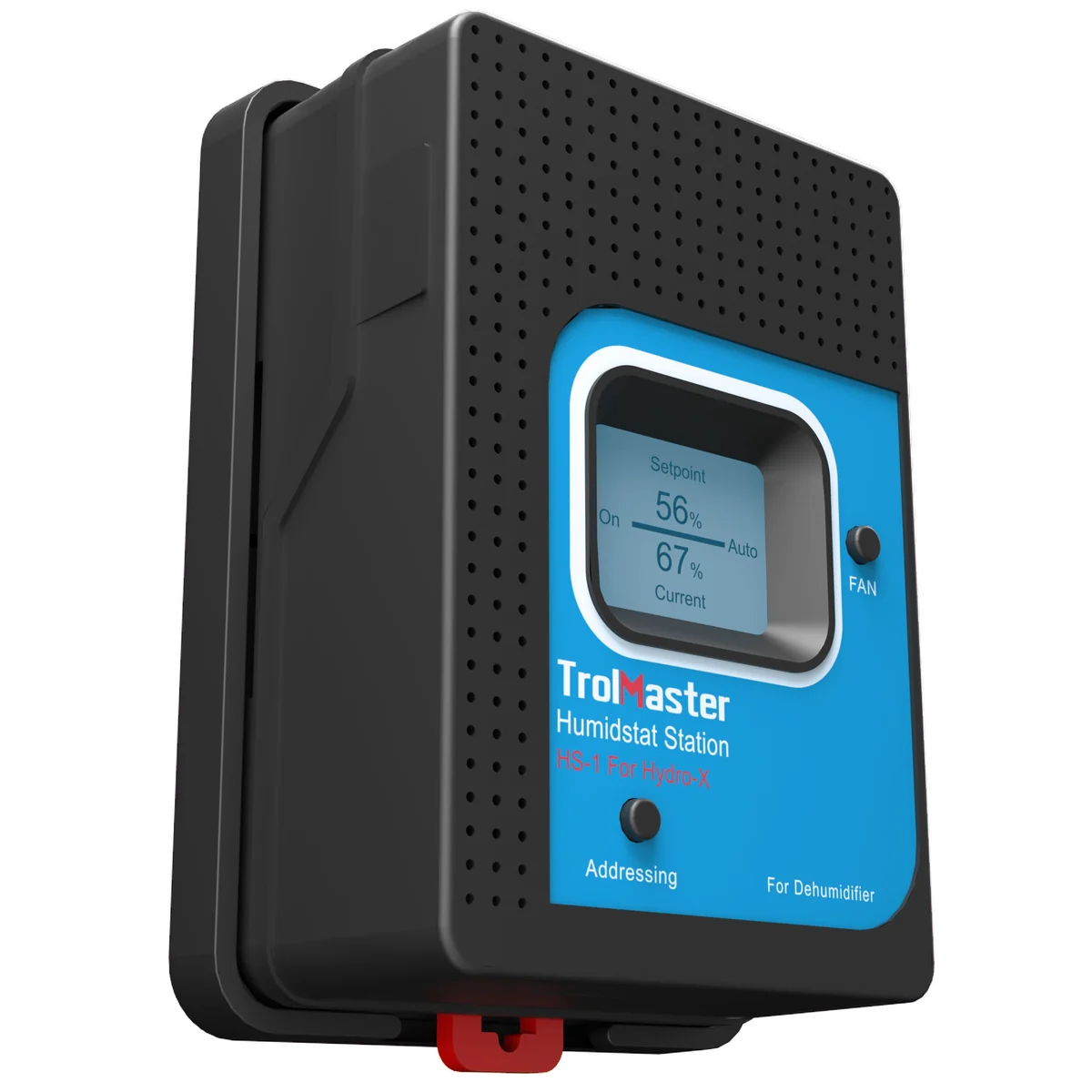

HS-1Humidistat Station, for Dehumidifier with 24V terminal

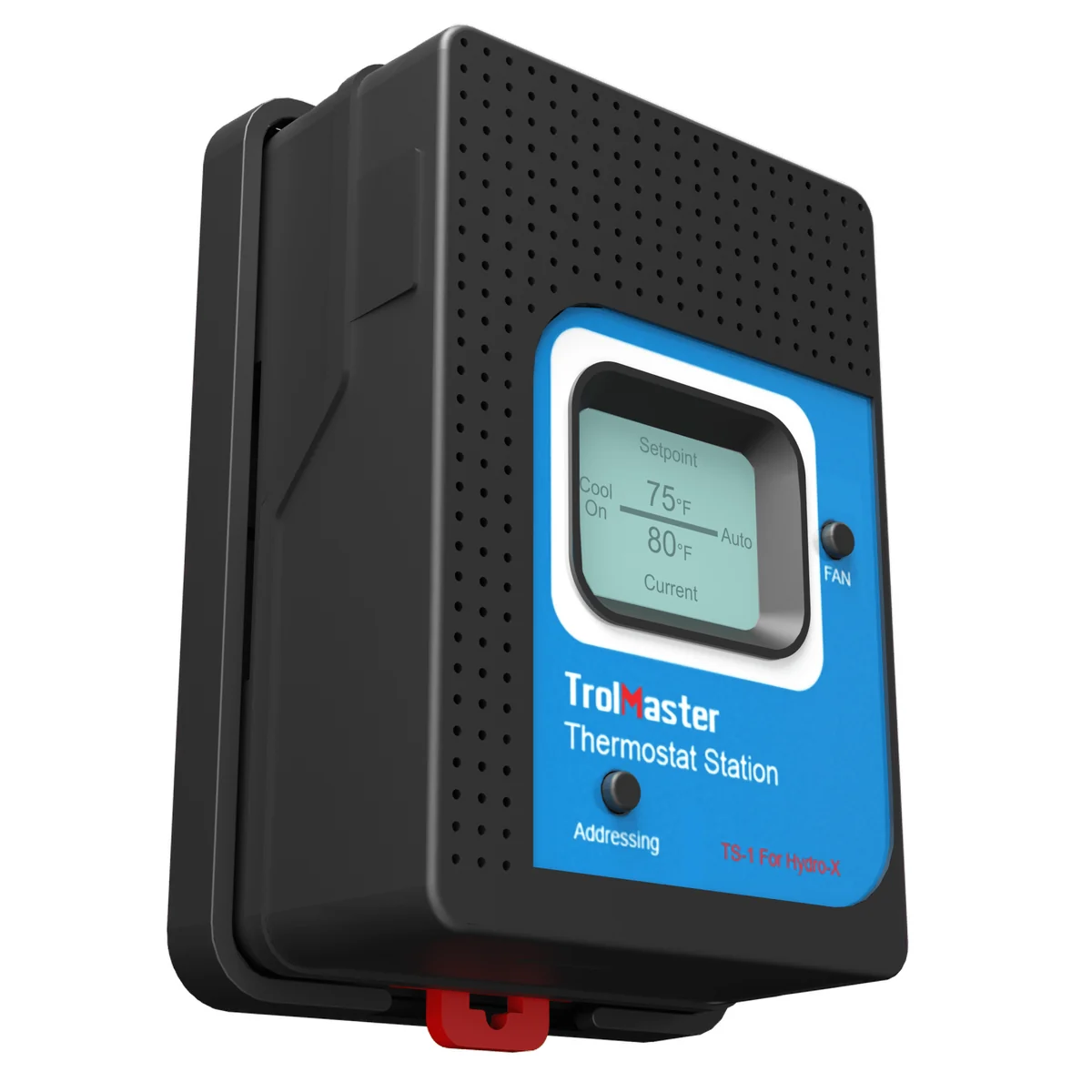

TS-1Thermostat Station, for Cool only conventional HVAC

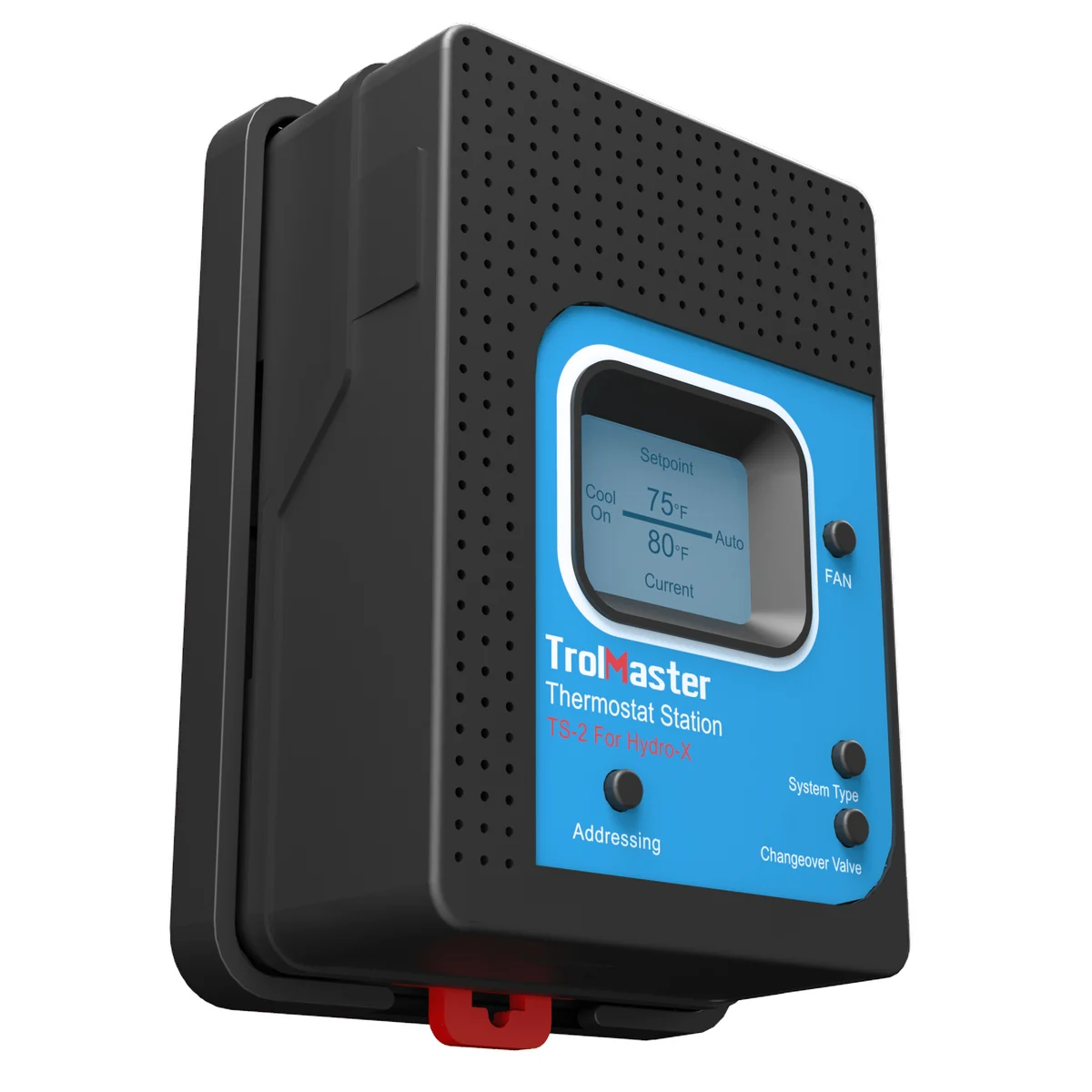

TS-2Thermostat Station 2, for all type of HVAC (Heat Pump and Conventionals)

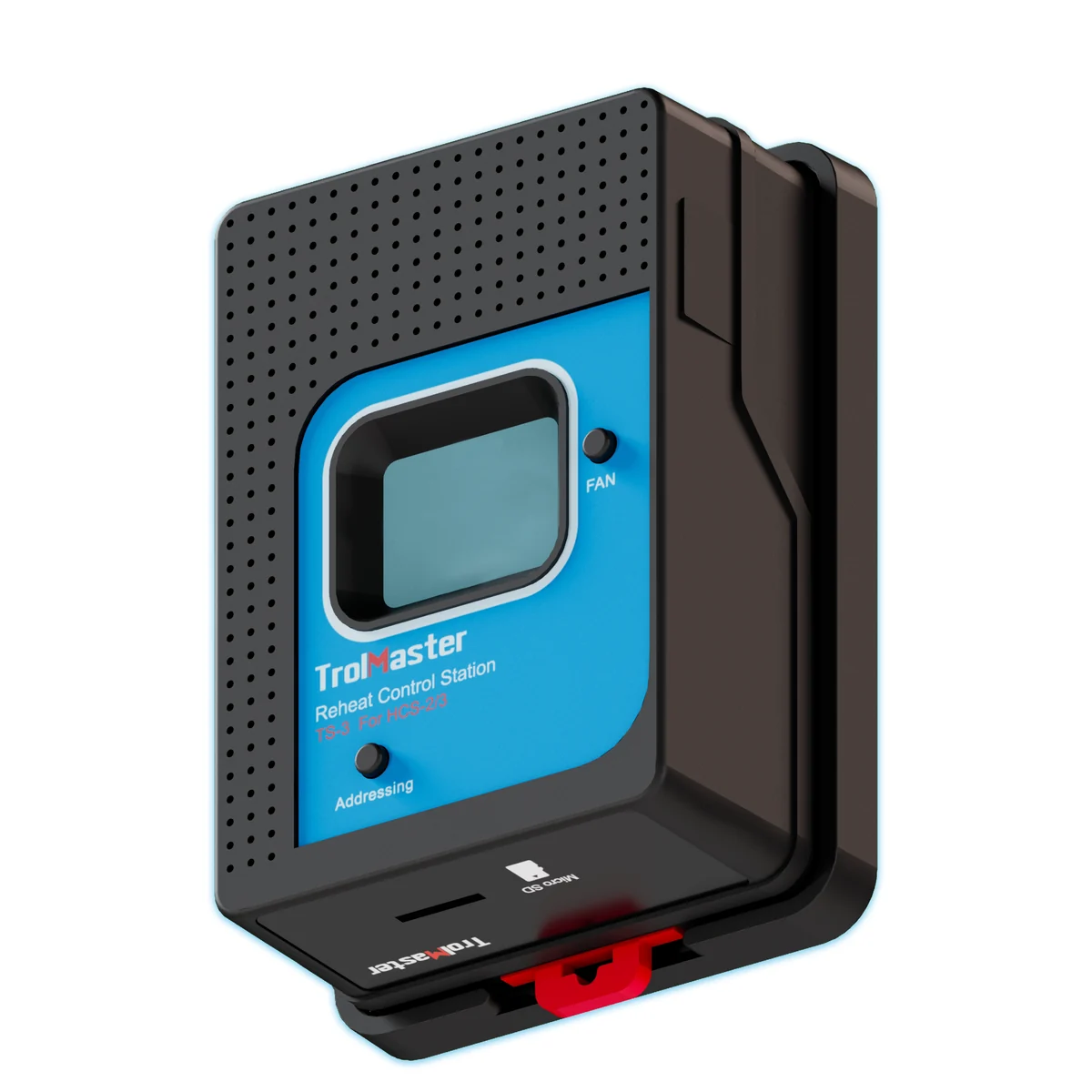

TS-3Reheat Control Station jas

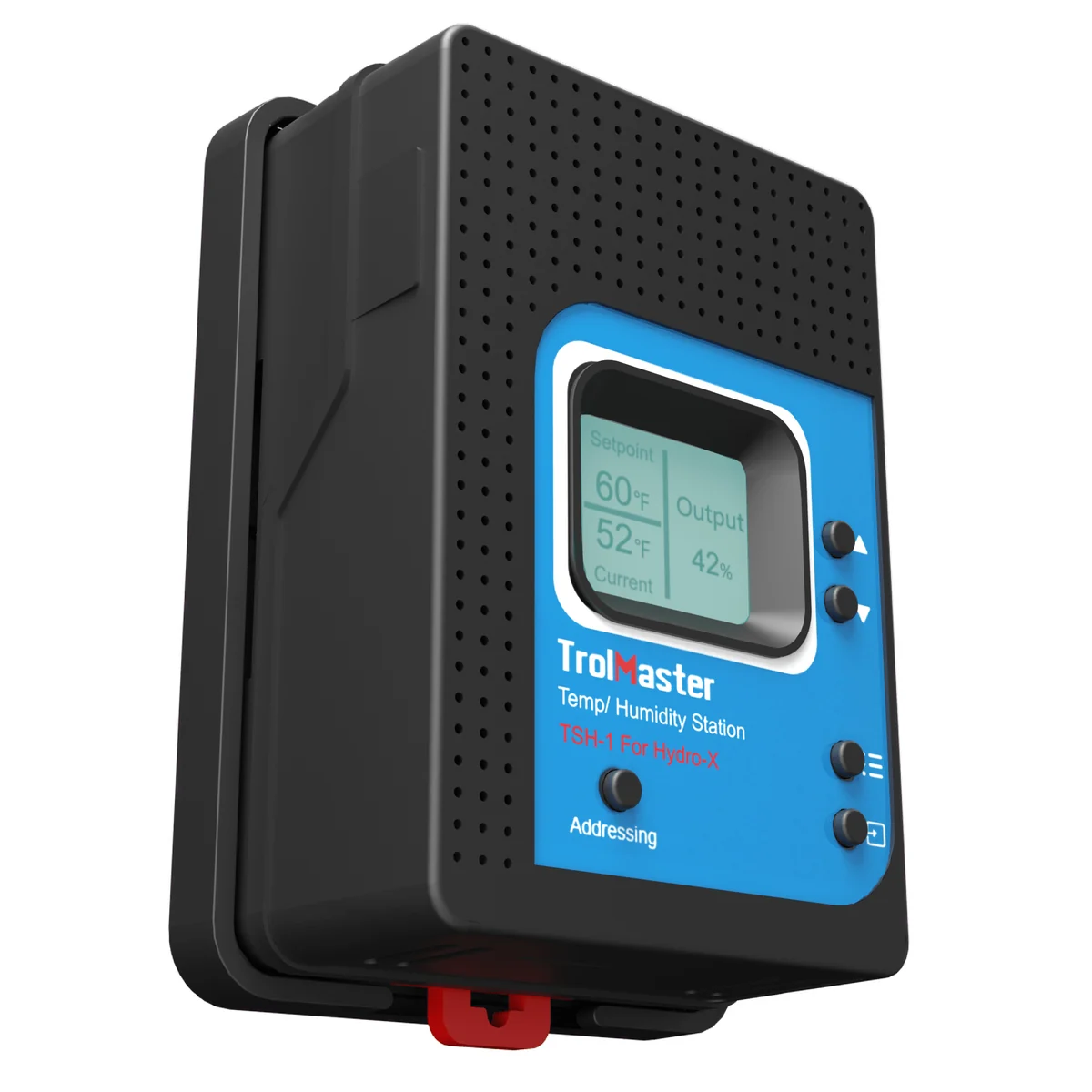

TSH-1TrolMaster Temp/ Humidity Station with 0-10V protocol

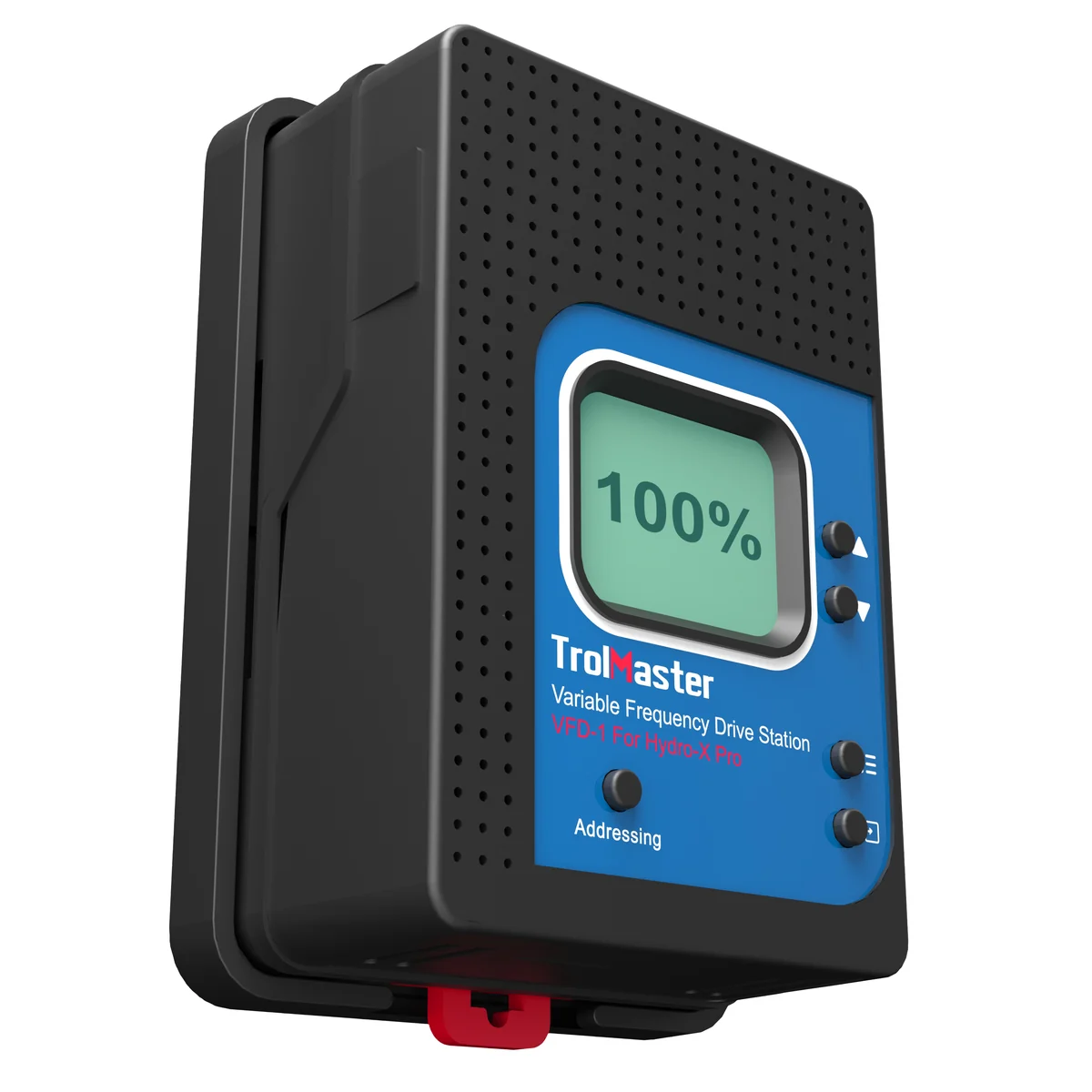

VFD-1Variable Frequency Drive Station for VFD fan speed control in the Hydro-X Pro …

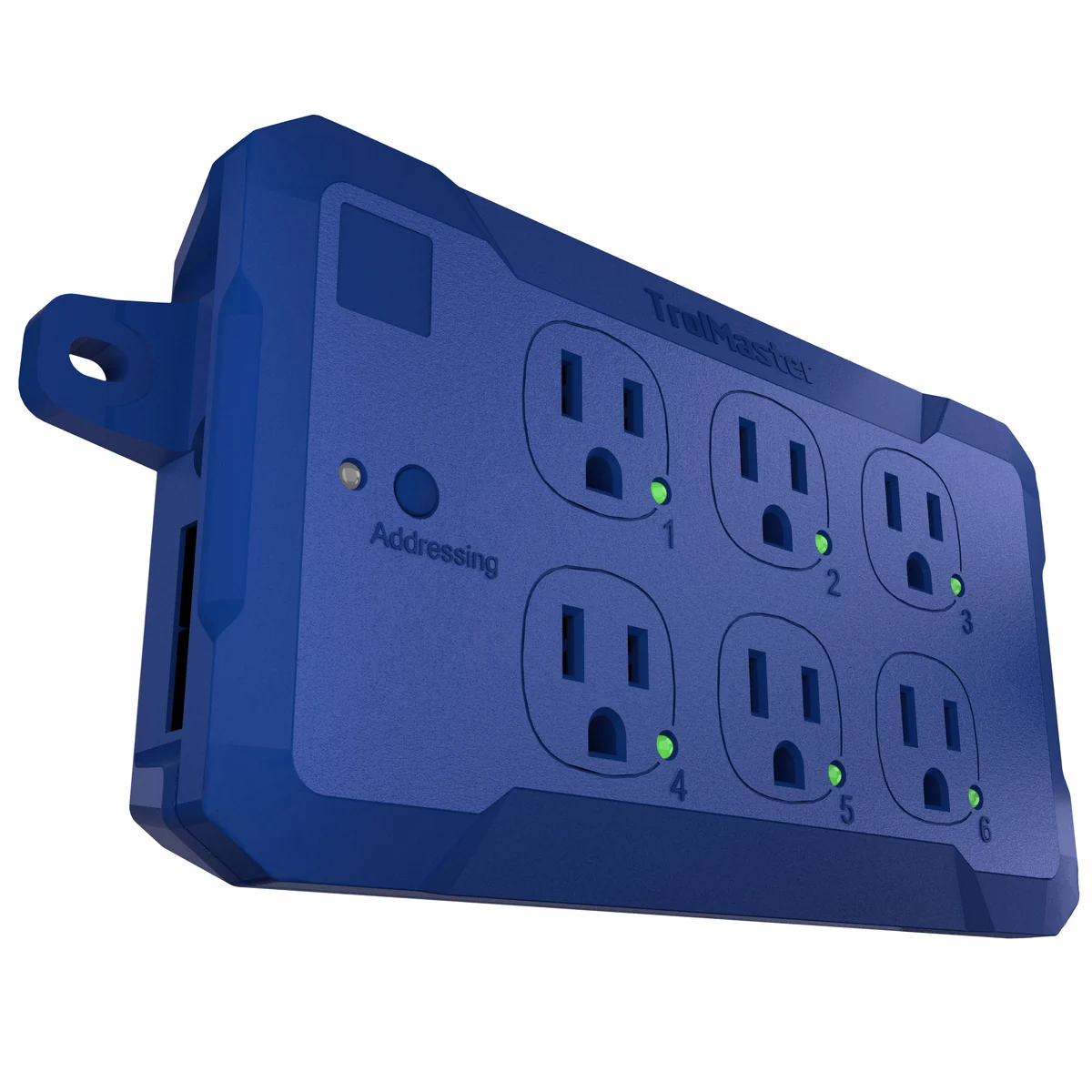

OA6-110110V Control Board, 6 individual 110V controlled output (1.5A per outlet) for …

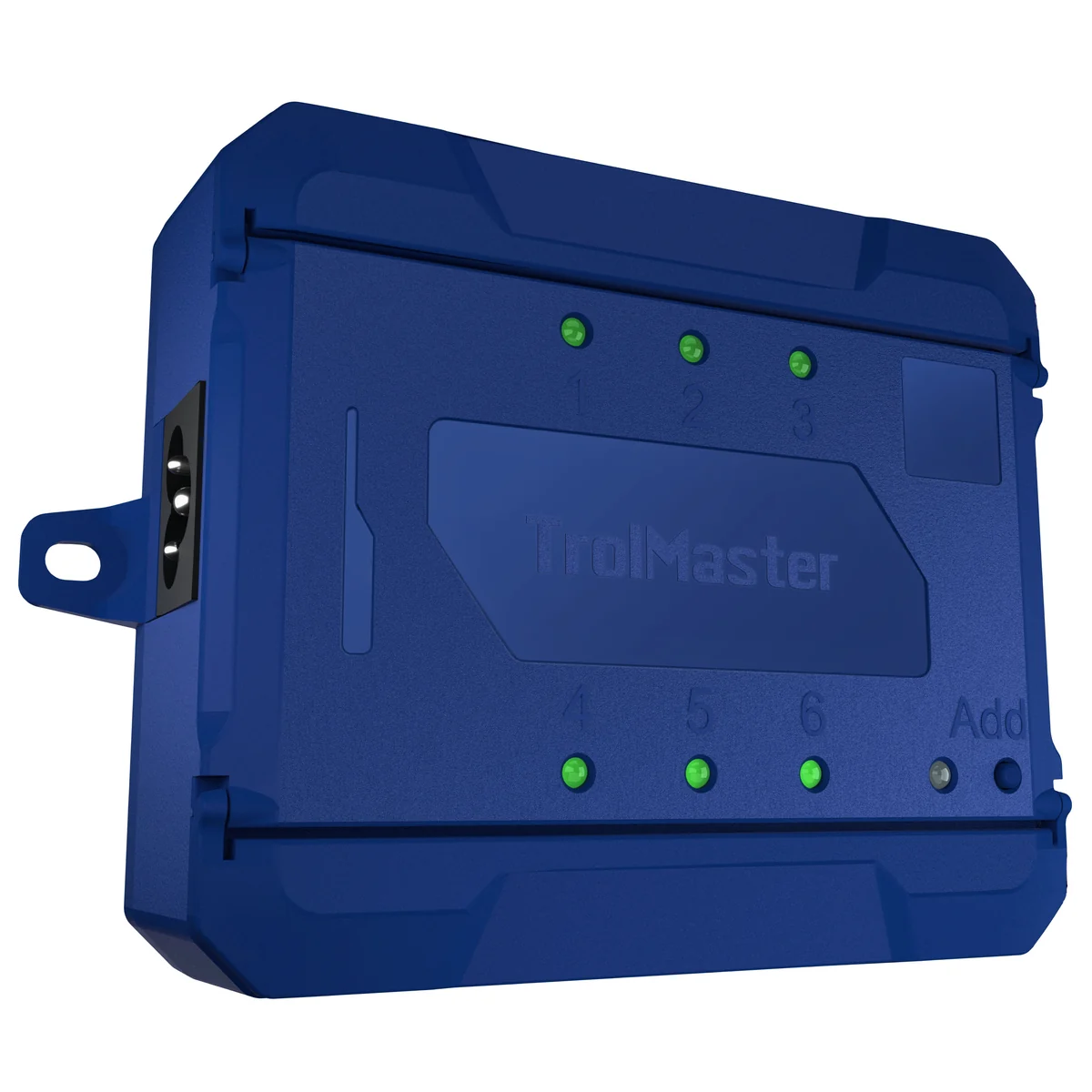

OA6-2424V Control Board, 6 individual 24V controlled output for solenoid valve contr…

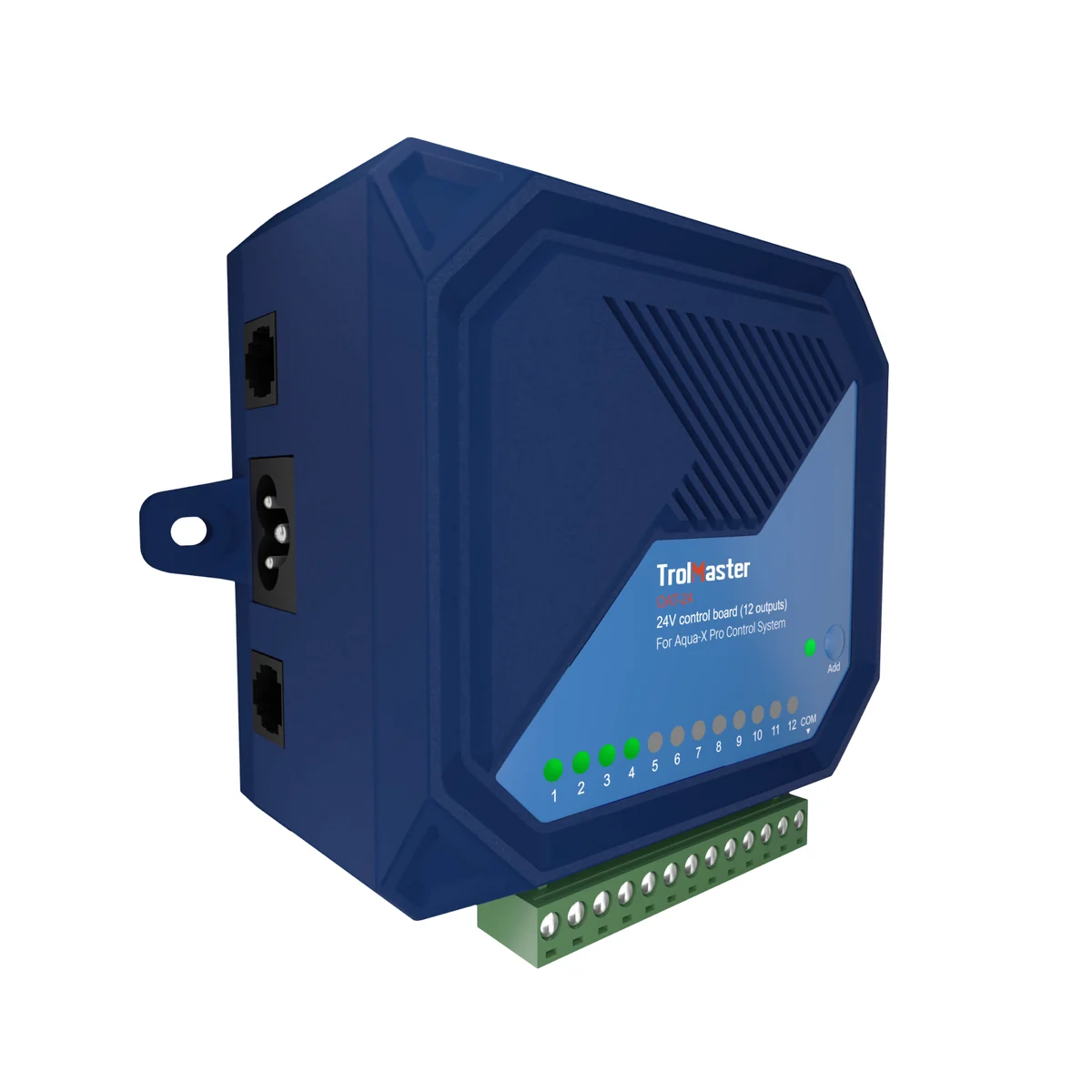

OAT-2412 Outputs 24V Control Board
OM-8Dry Contact Board for HCS-2/NFS-2, 8 individual electrical contacts, each cont…

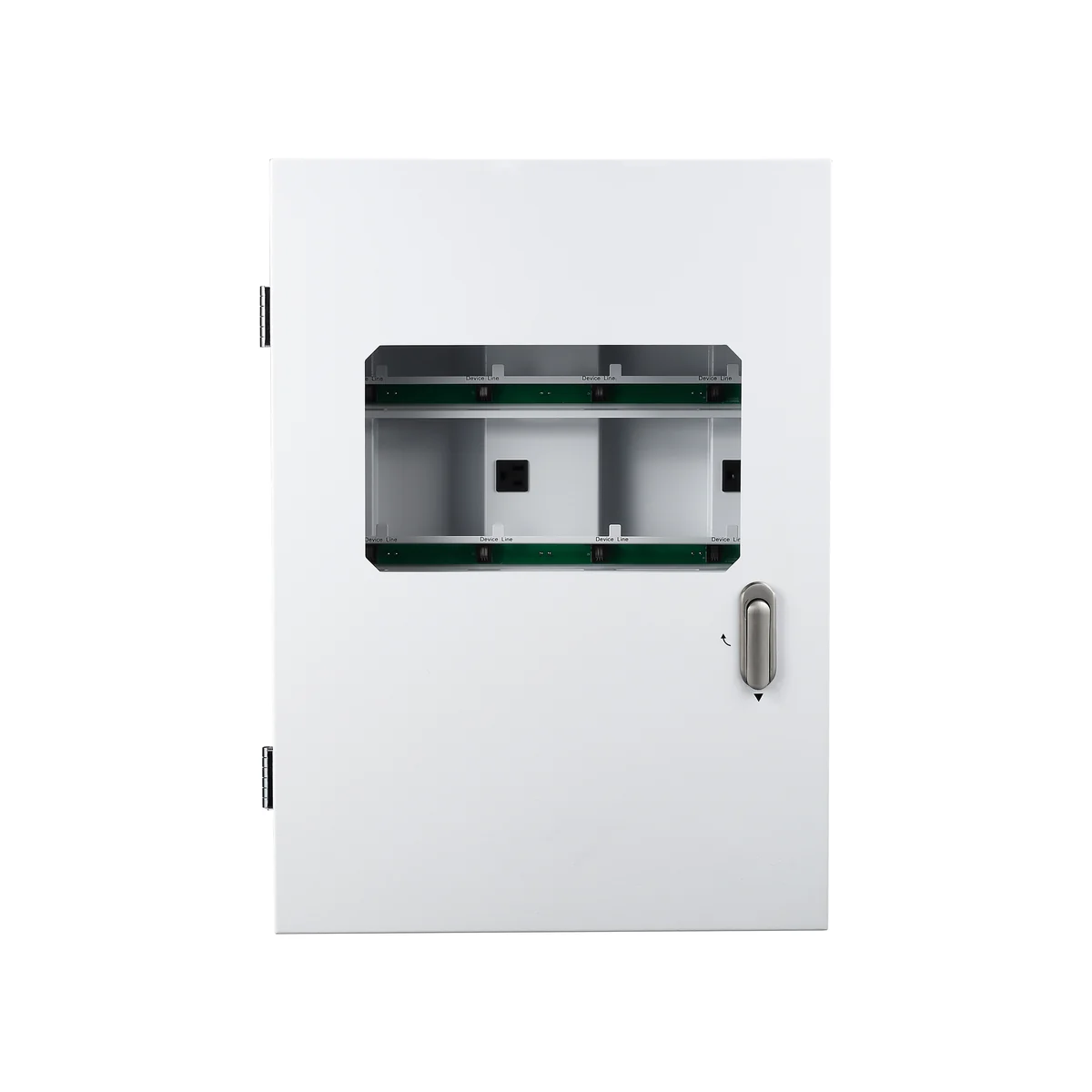

SCC-125" (63.5cm) Standard Controller Cabinet for Hydro-X Pro / Aqua-X Pro
SCC-235" (88.9cm) Large Controller Cabinet for Hydro-X Pro / Aqua-X Pro
SCC-325" (63.5cm) Standard Controller Cabinet for Hydro-X Plus

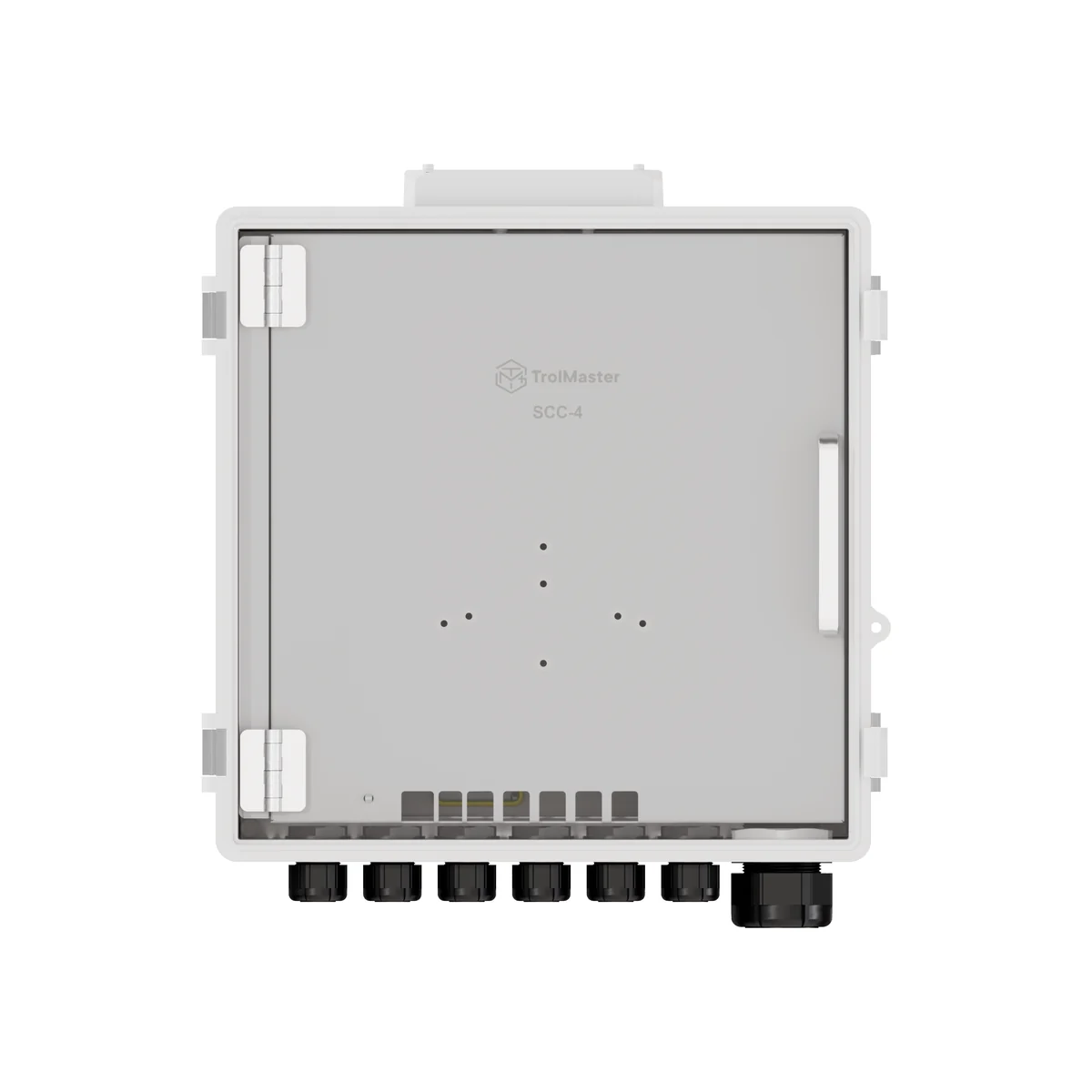

SCC-4Mini Controller Cabinet (100-277V) jas

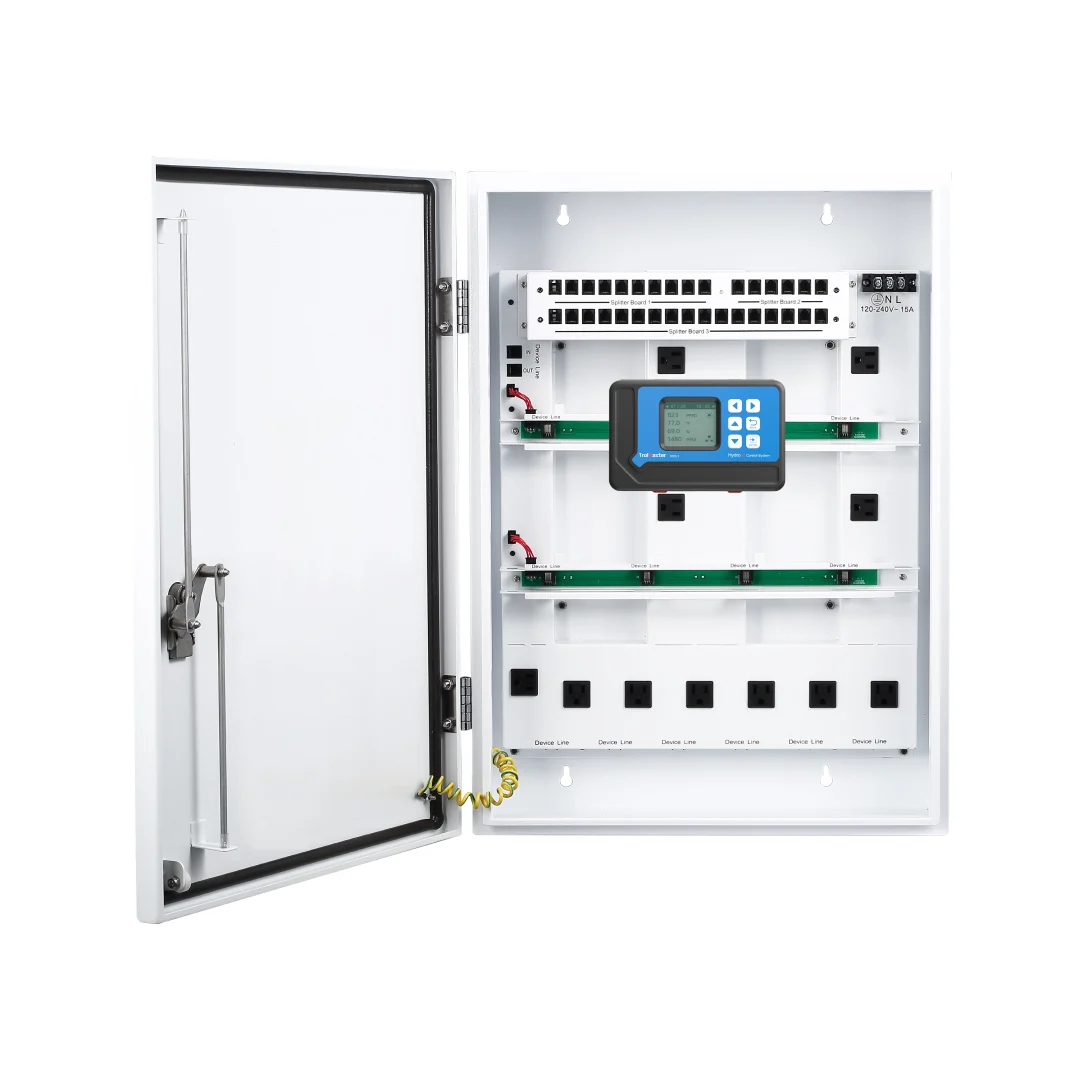

SCC-DController Cabinet Door without pre-cut window for SCC-1, SCC-3

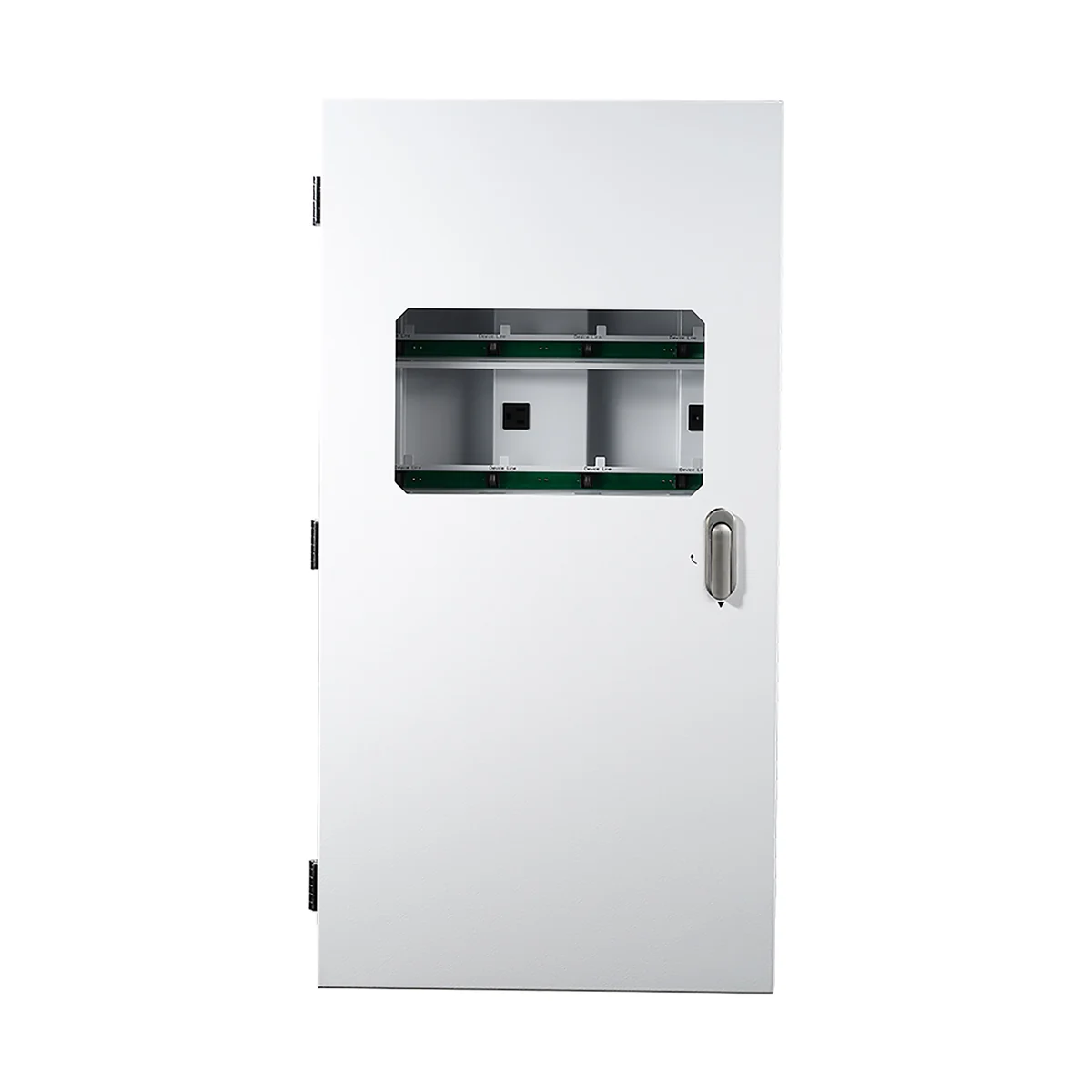

SCC-D2Controller Cabinet Door without pre-cut window for SCC-2

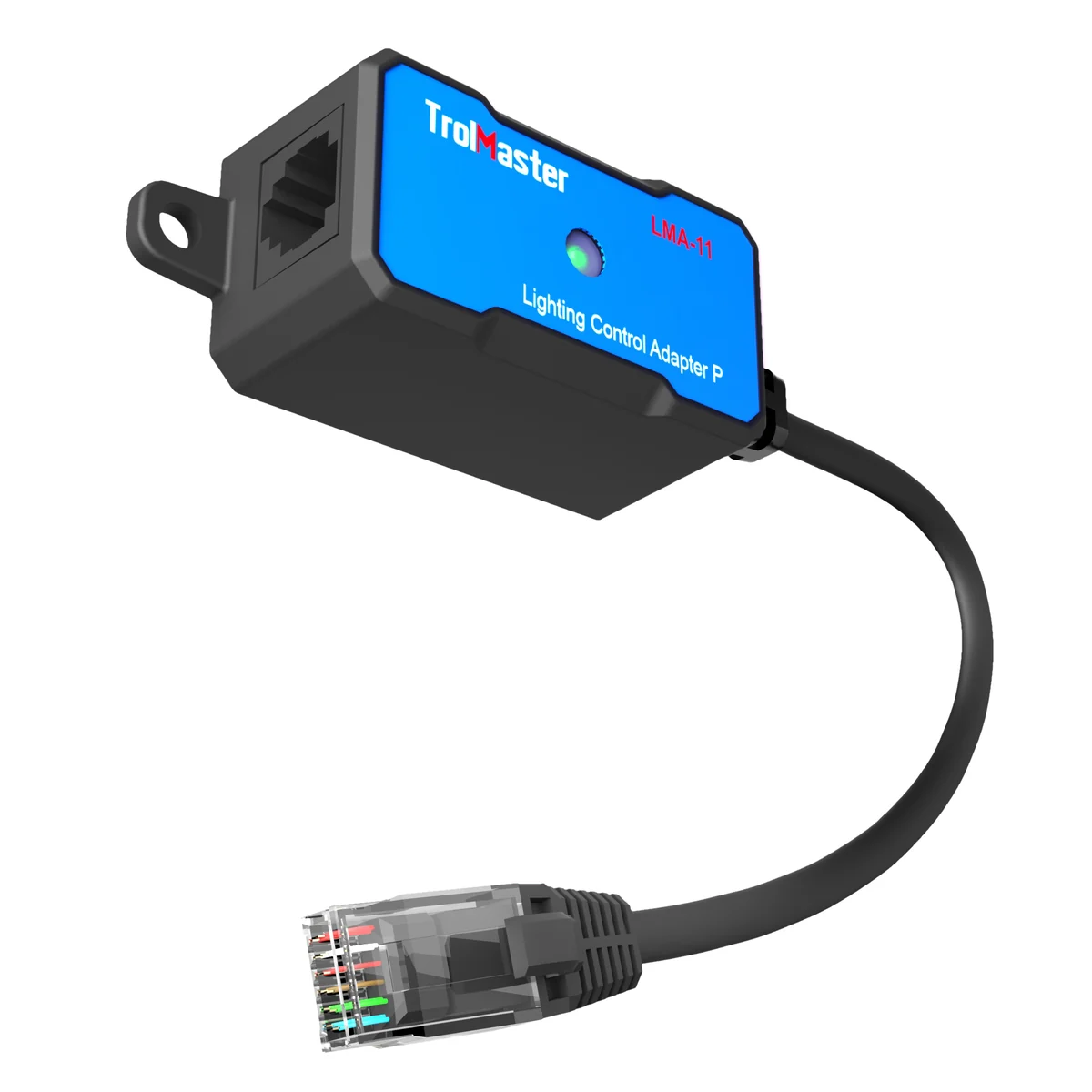

LMA-11Lighting Control Adapter P, for Controlling Phantom Ballast
LMA-12Lighting Control Adapter D, for Controlling Dimlux Ballast

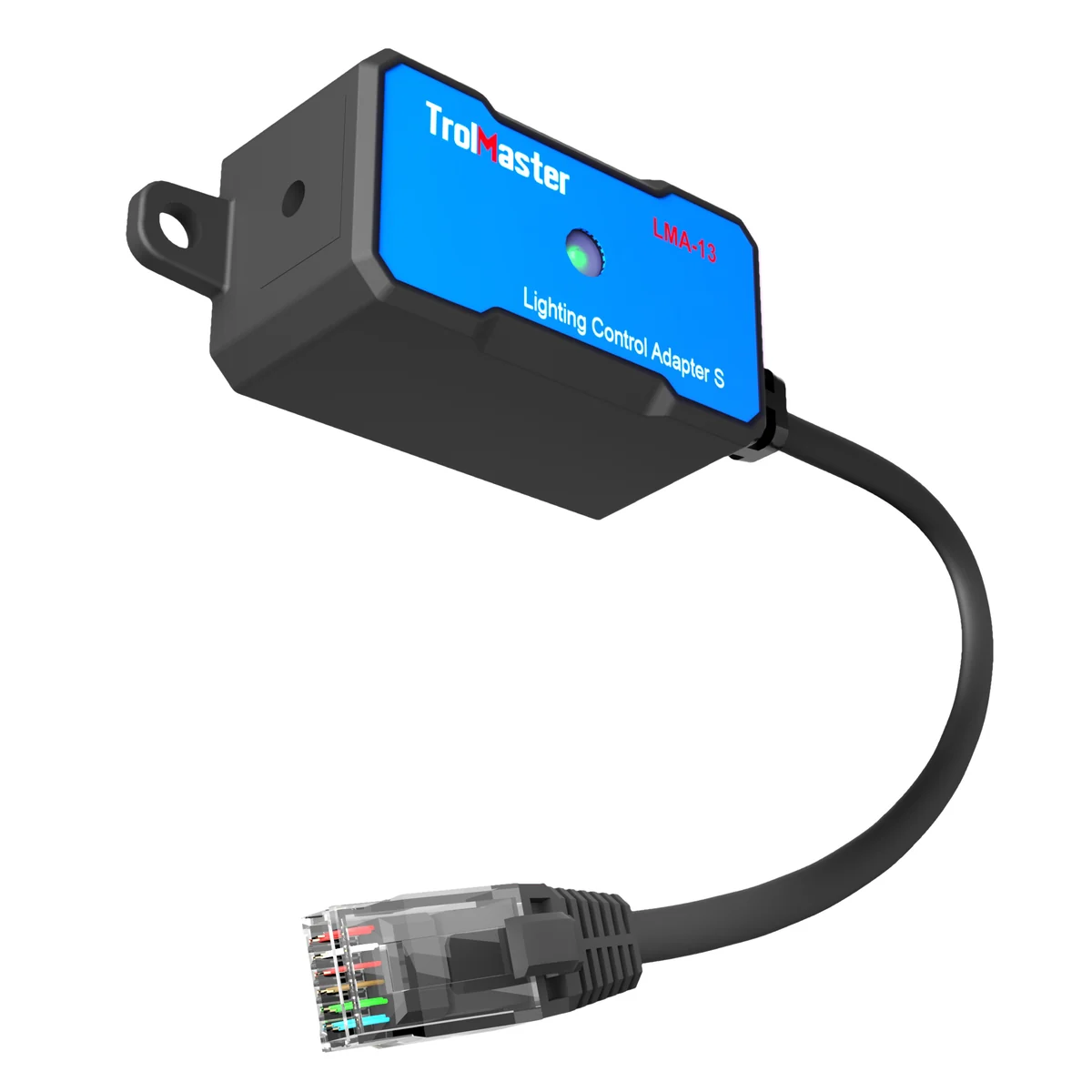

LMA-13Lighting Control Adapter S, for Controlling Sun System Ballast

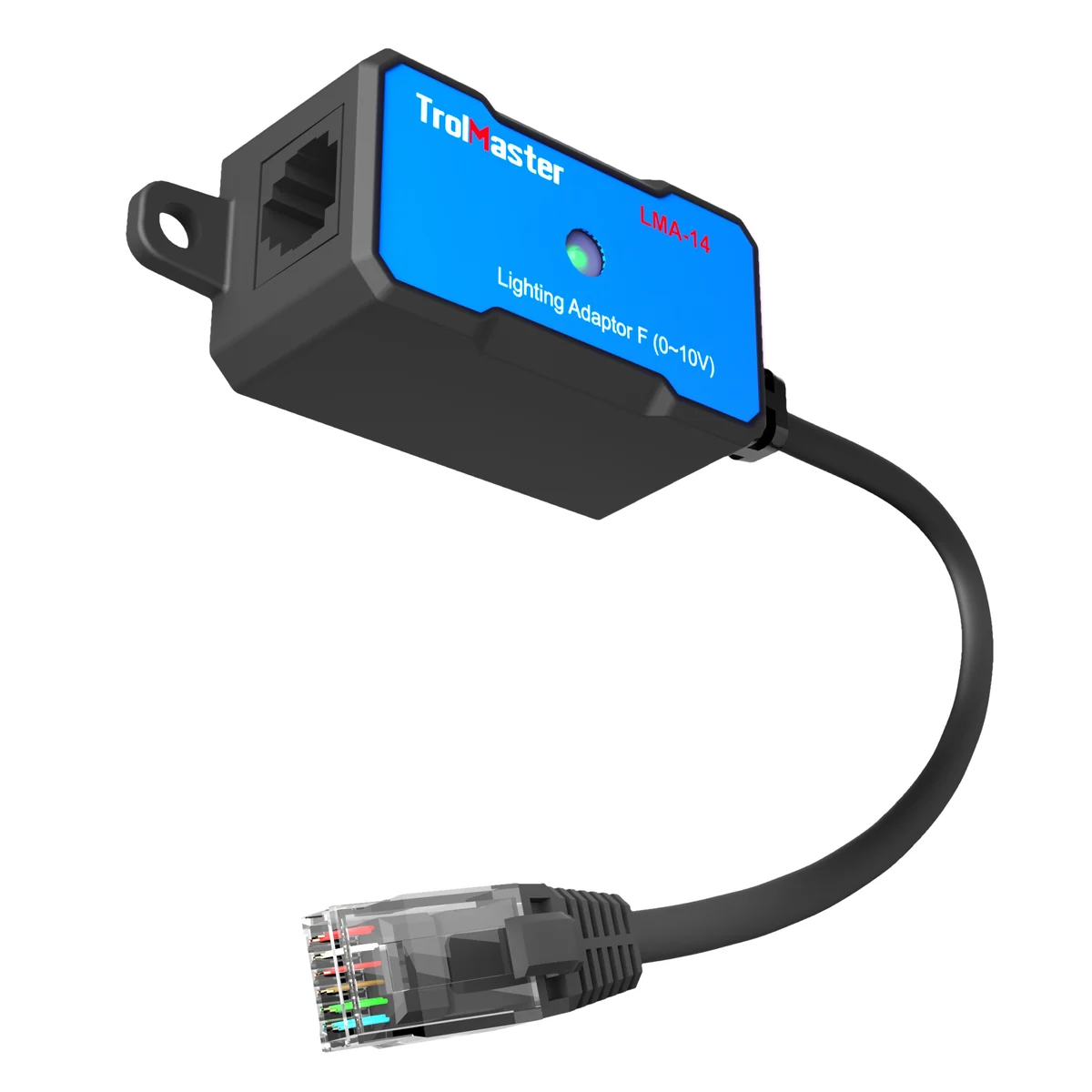

LMA-14Lighting Control Adapter F

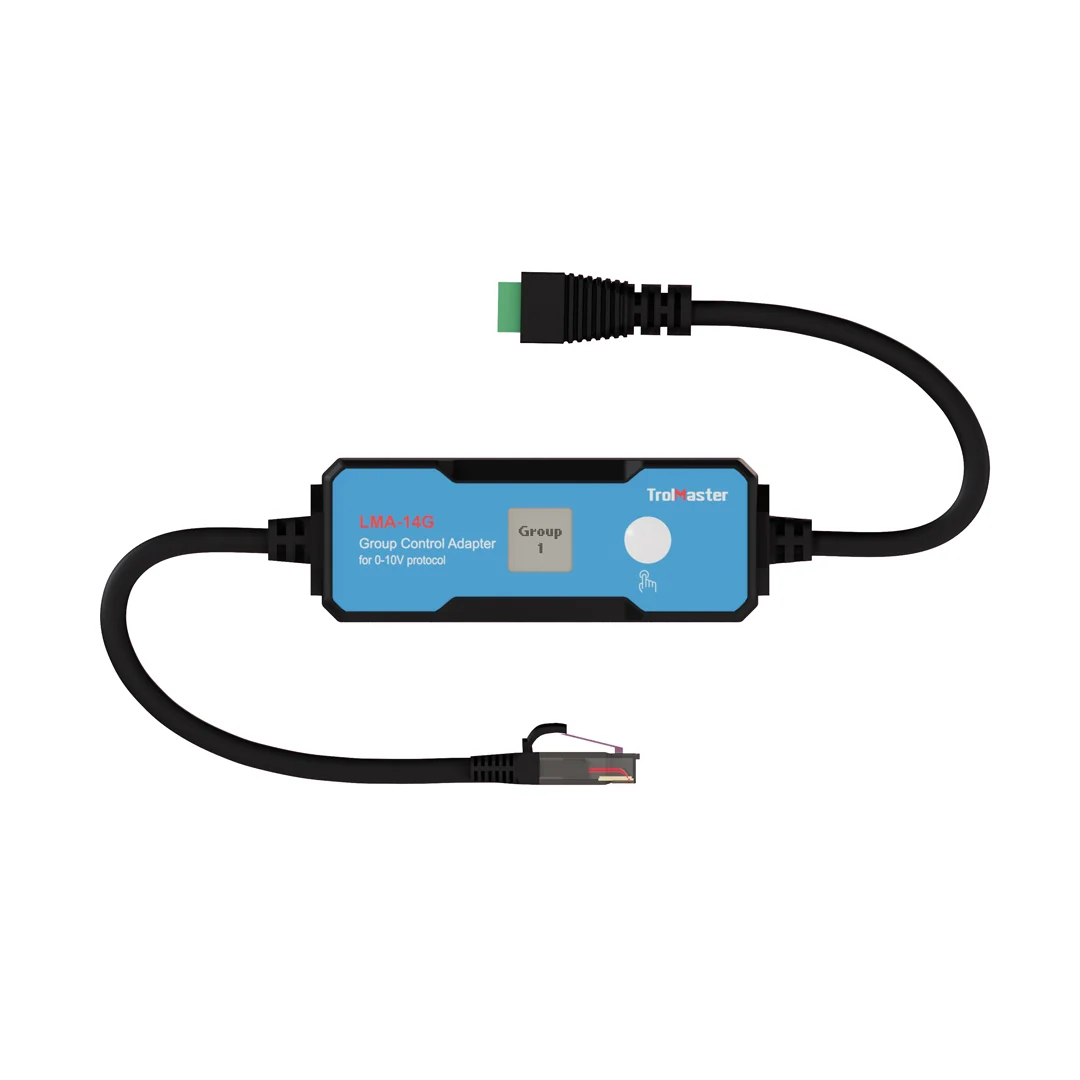

LMA-14GGroup Control Lighting Adapter, for 0-10V protocol jas
LMA-15Lighting Control Adapter DLI for Hydro-X Control System

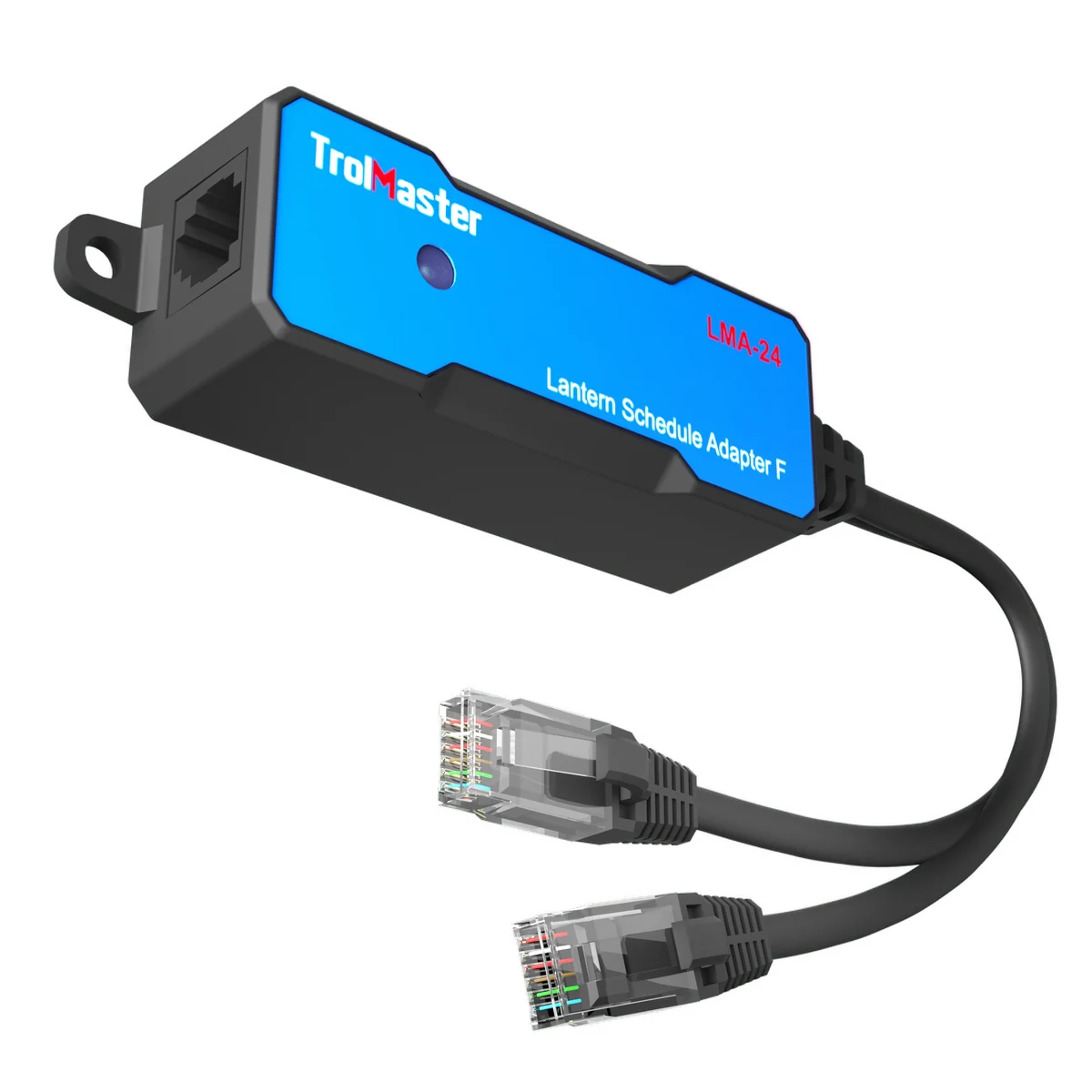

LMA-24Lantern Schedule Lighting Adapter Compatible with any light controlled by 0~10…

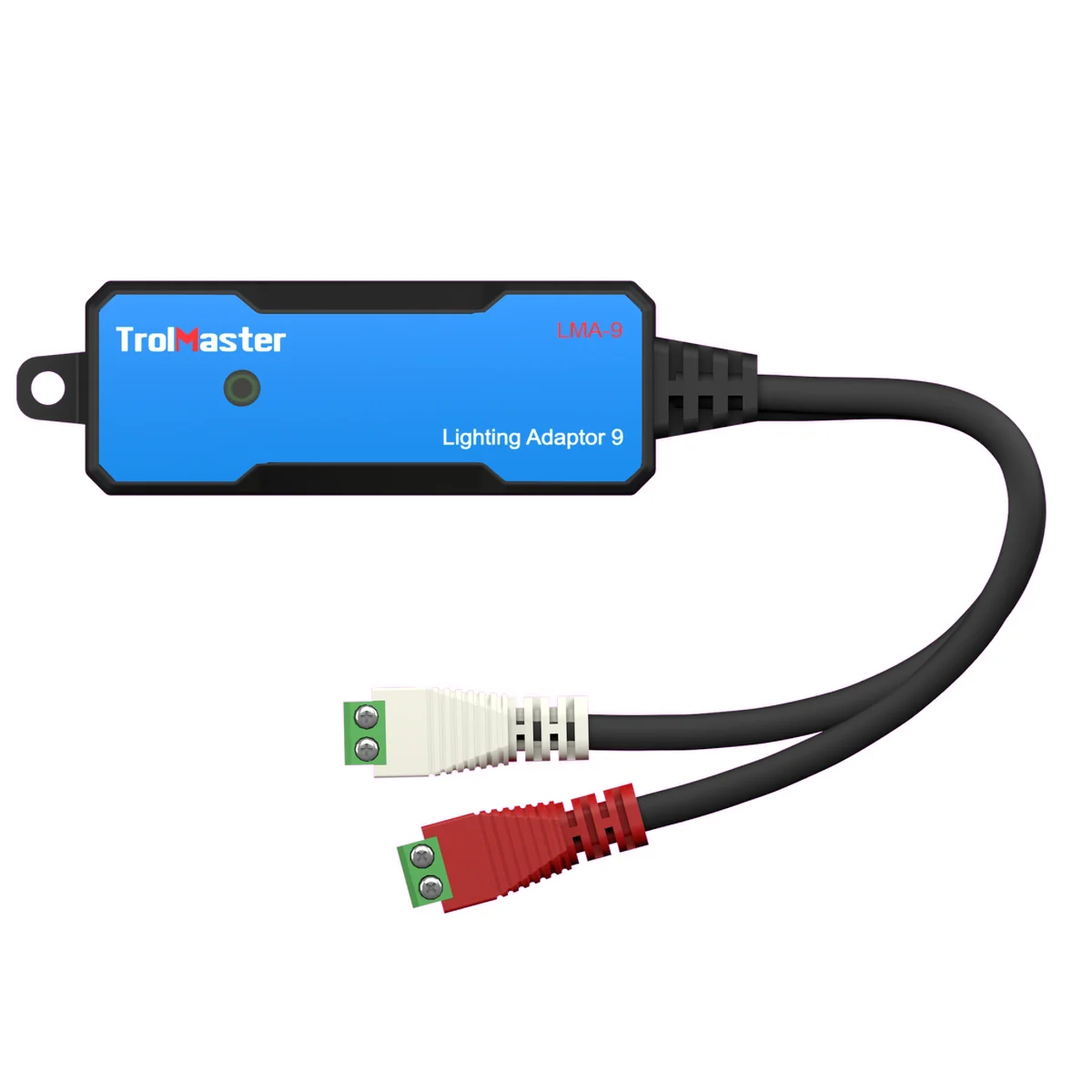

LMA-9Lighting Adapter to Convert 0-10V Signals to Digital Signals to Control ThinkG…

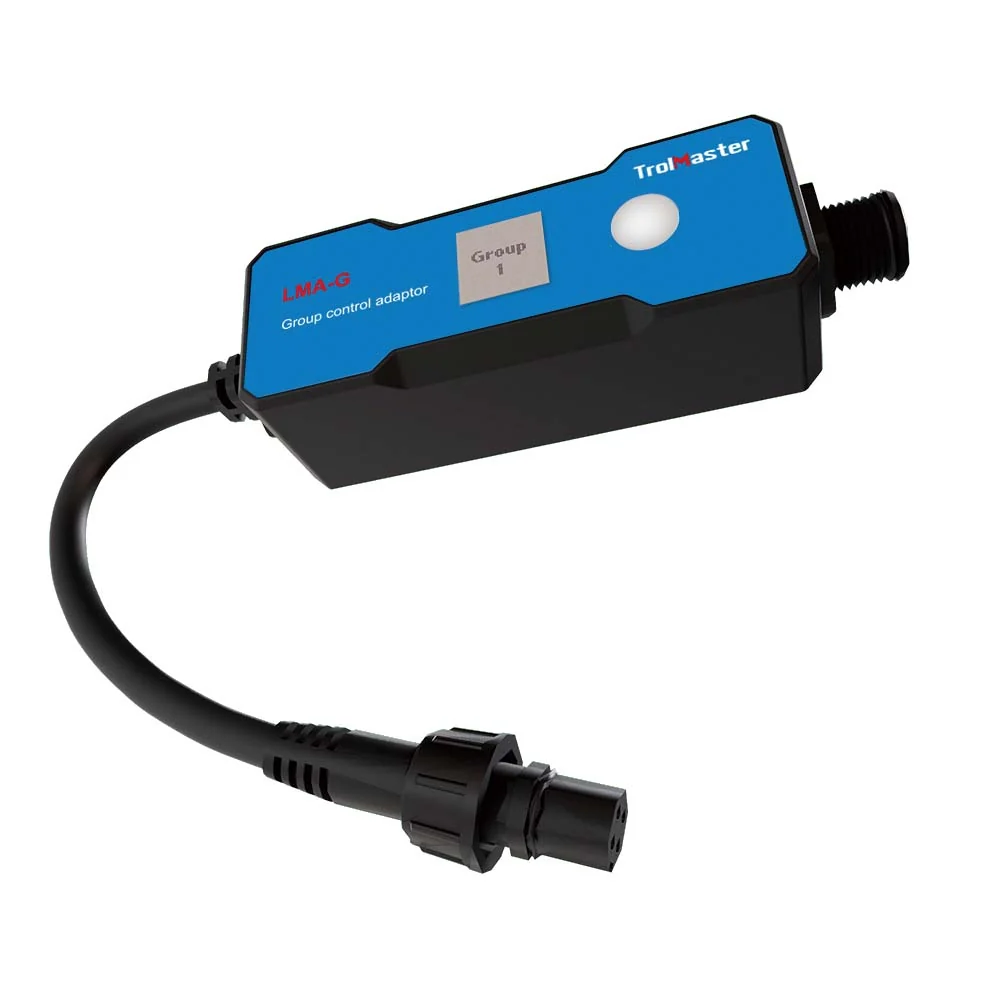

LMA-GLighting Group Control Adapter, for Grouping ThinkGrow Model-I & Model-One LED…

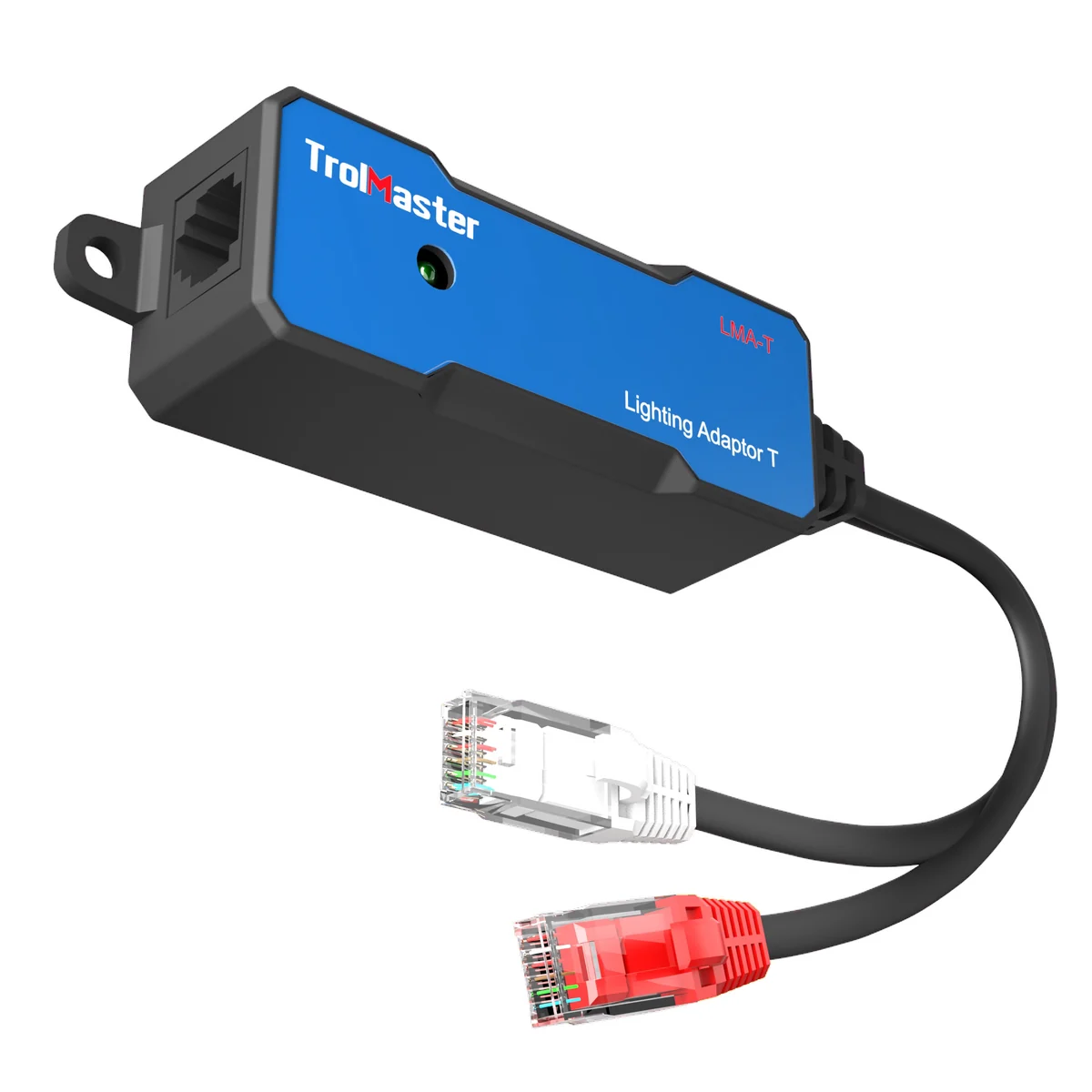

LMA-TLighting Control Adapter T, for Controlling ThinkGrow LED

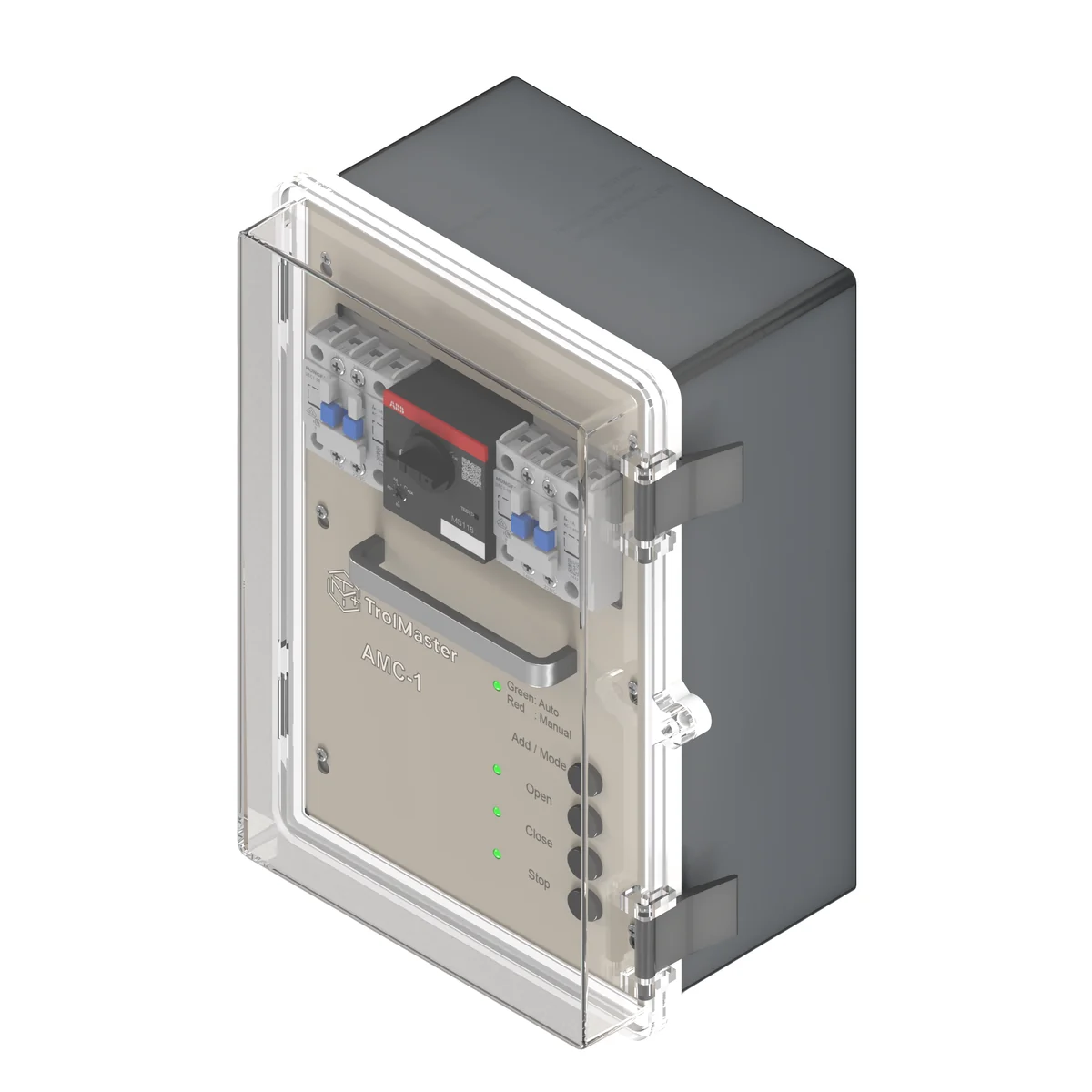

AMC-1Single/Three Phase Curtain Motor Controller (100-277V) jas

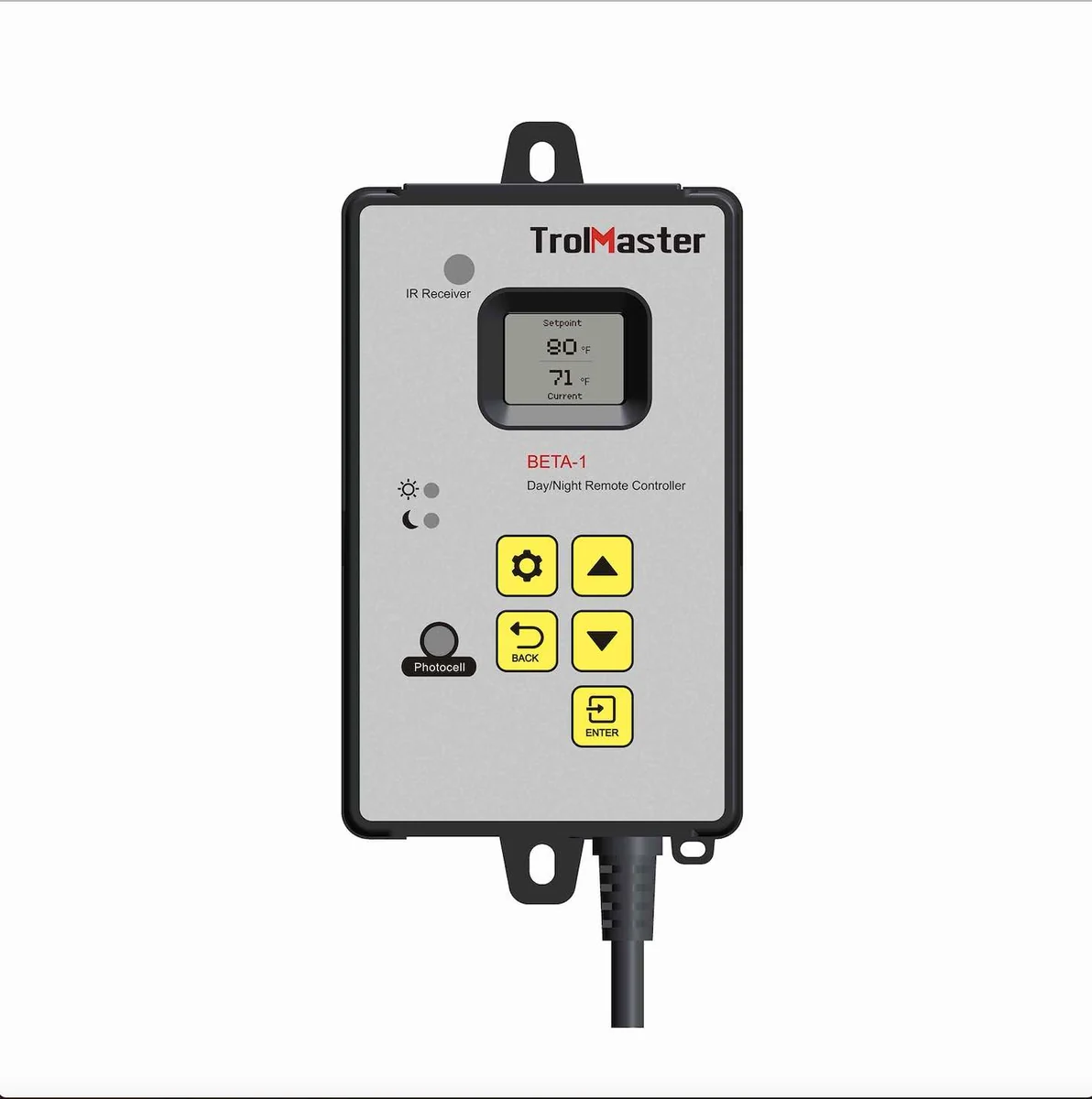

Beta-1Digital Day/Night Remote controller (For remote controlled AC such as Mini Spl…

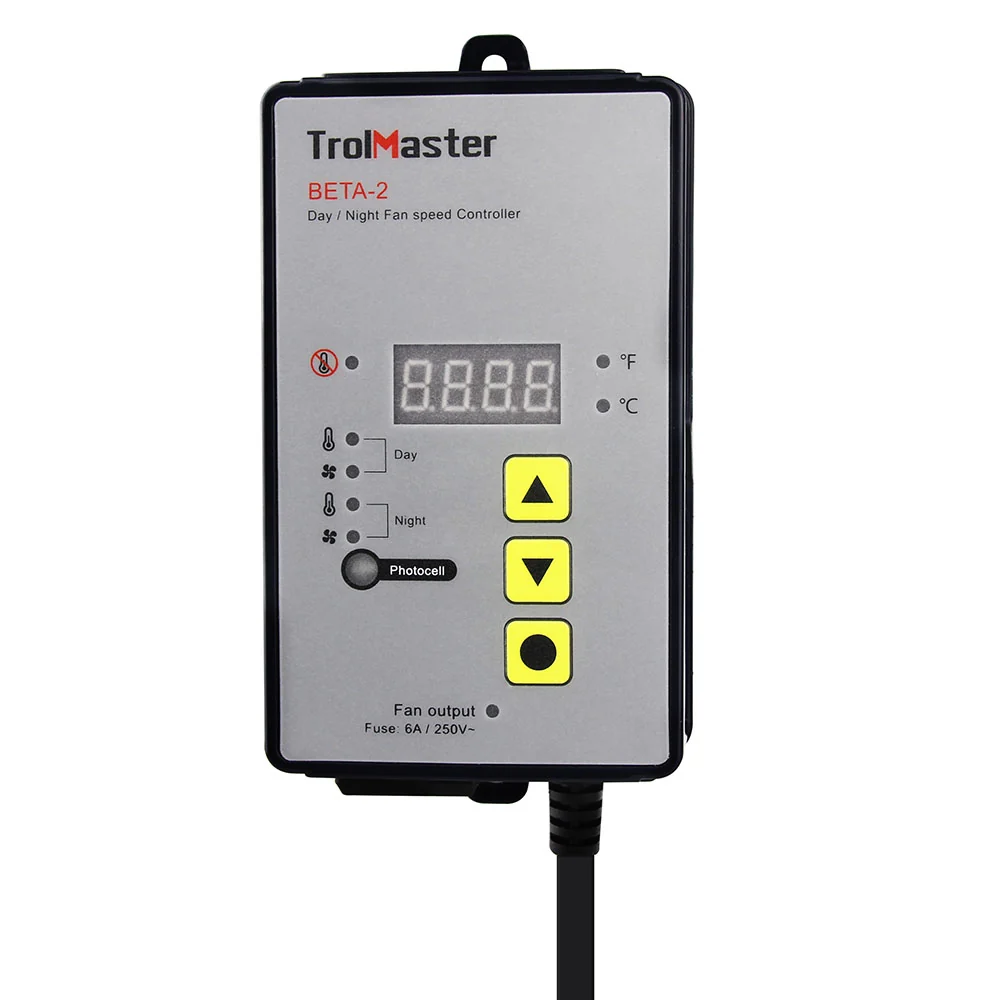

Beta-2Digital Day/Night Fans Speed controller

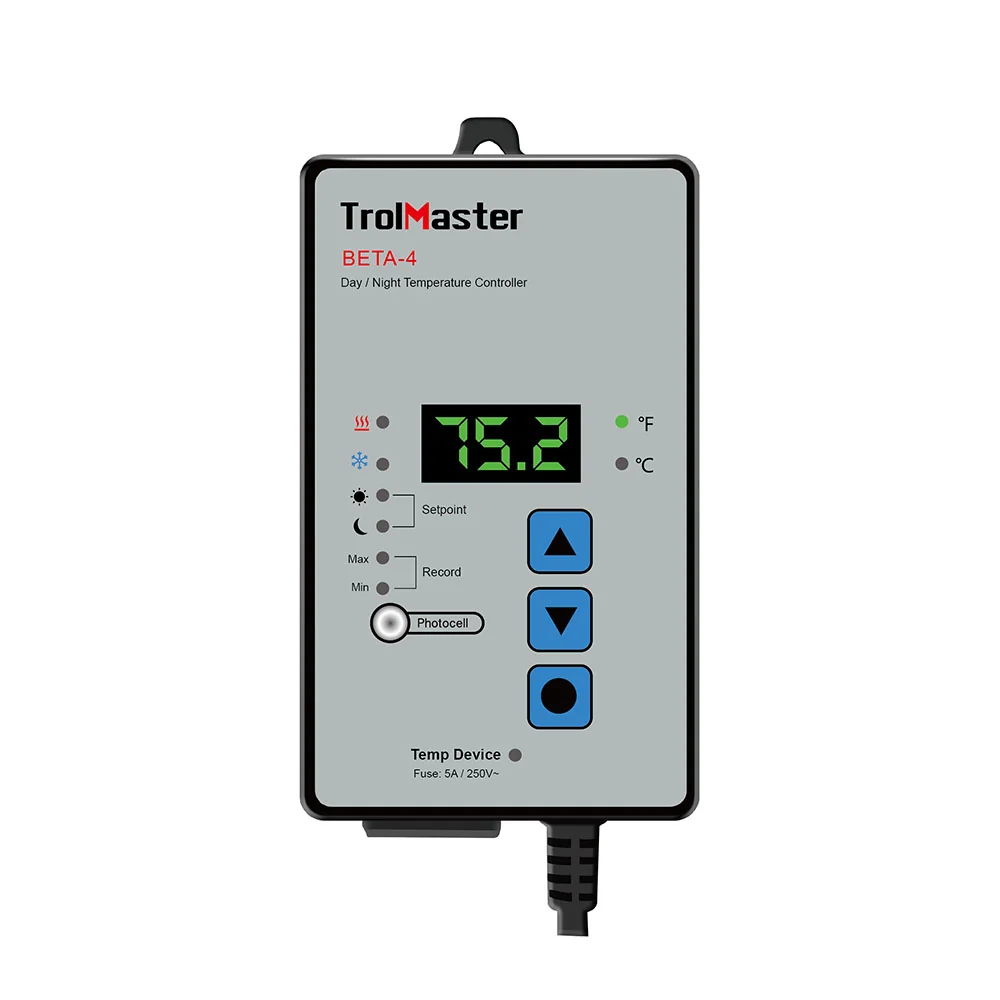

Beta-4Digital Day/Night Temperature Controller

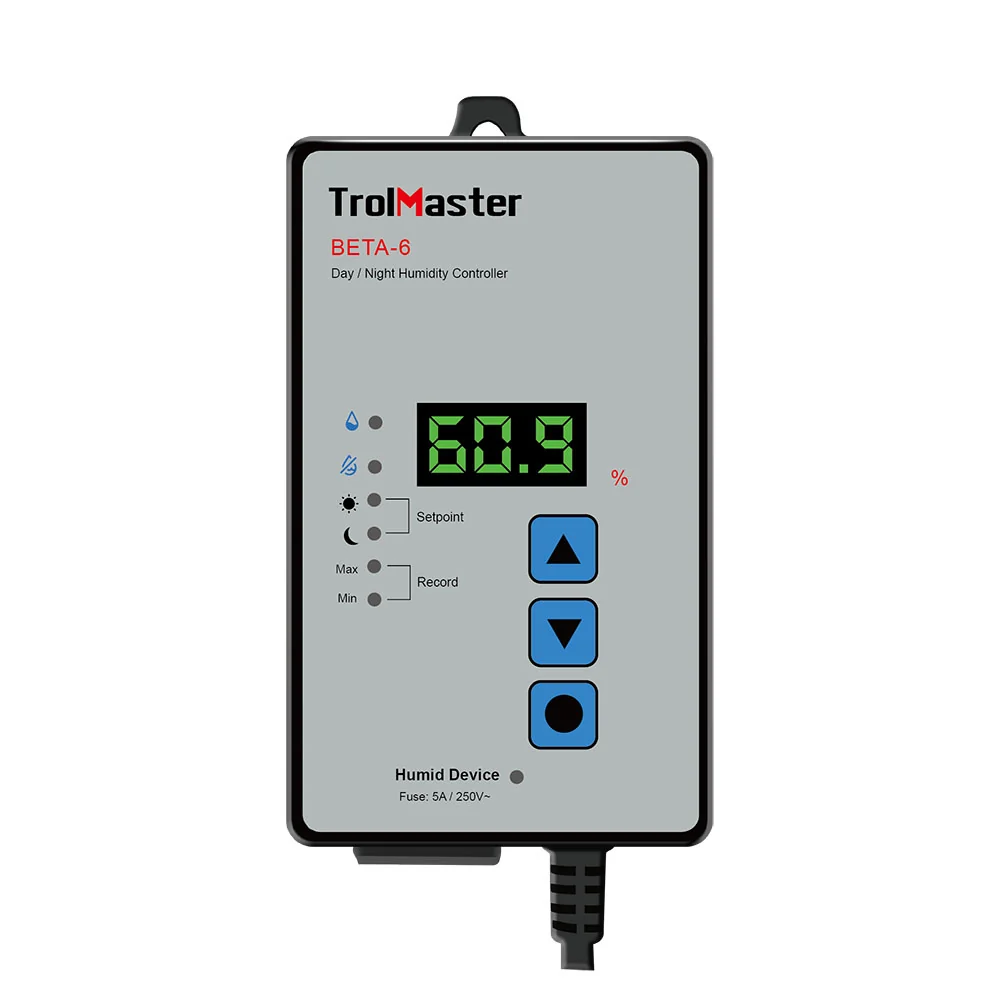

Beta-6Digital Day/Night Humidity 110V Controller

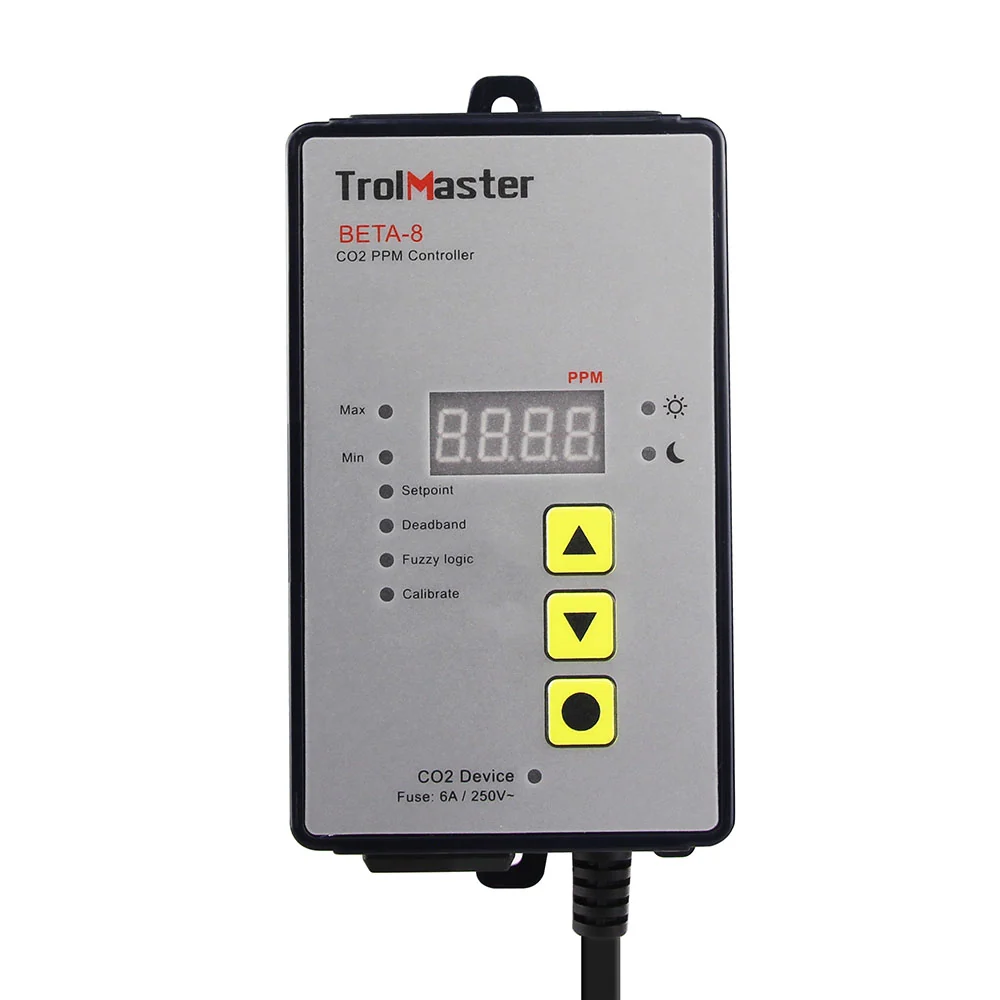

Beta-8Digital CO2 PPM controller, for Regulator & Generator

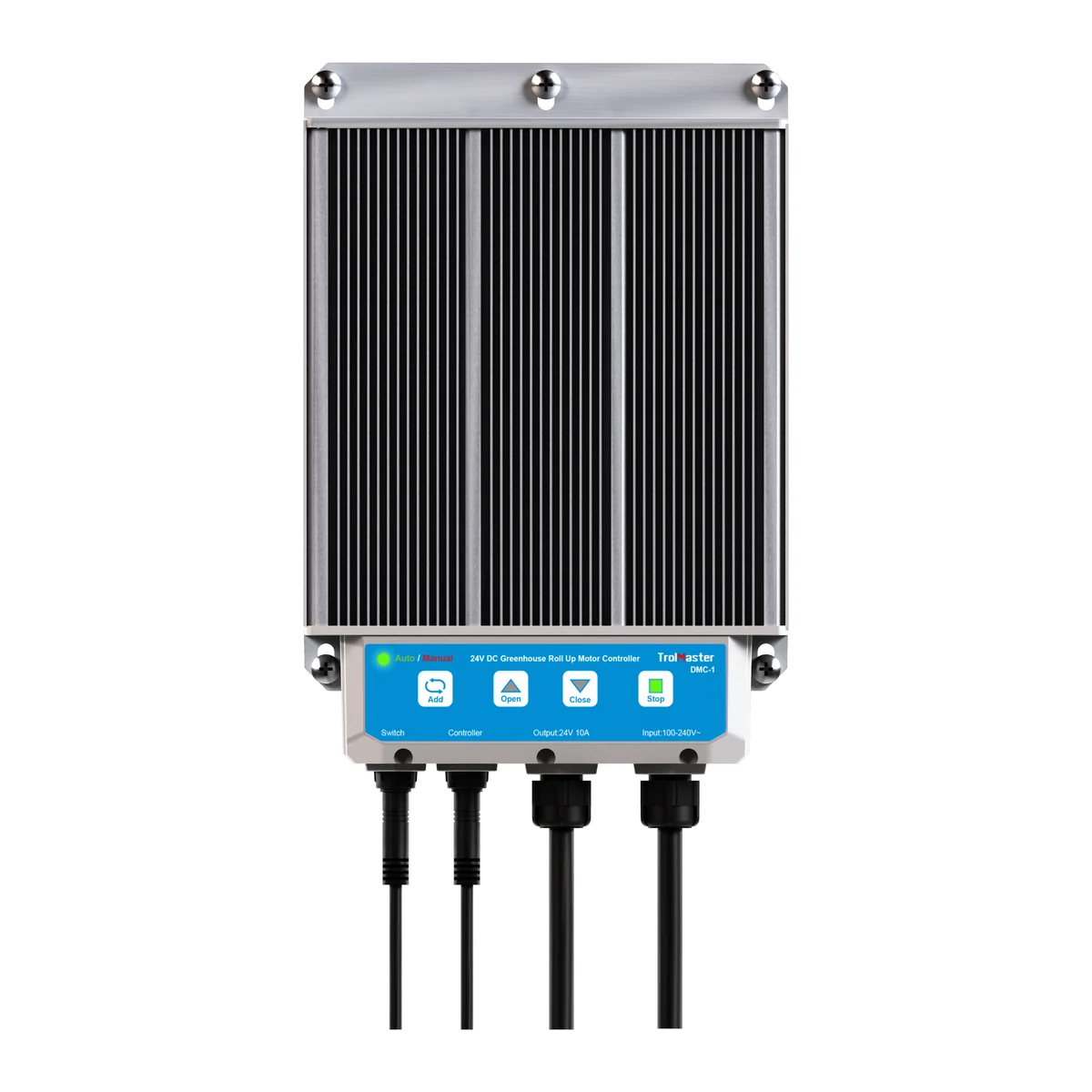

DMC-124V DC Greenhouse Roll Up Motor Controller jas

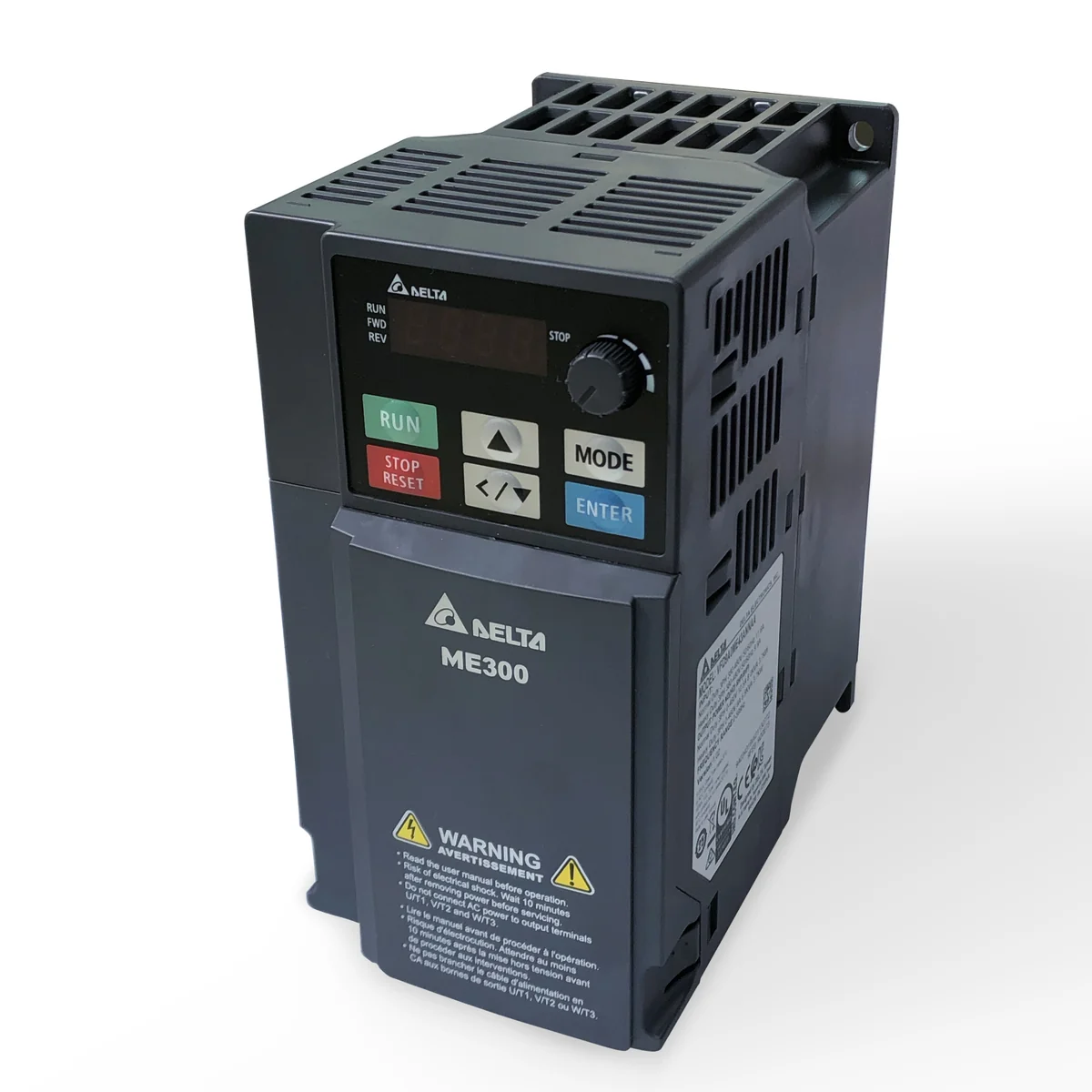

Delta-13PH 460V/5HP/3.7KW VFD, Basic Compact Driver for AC motors speed controls

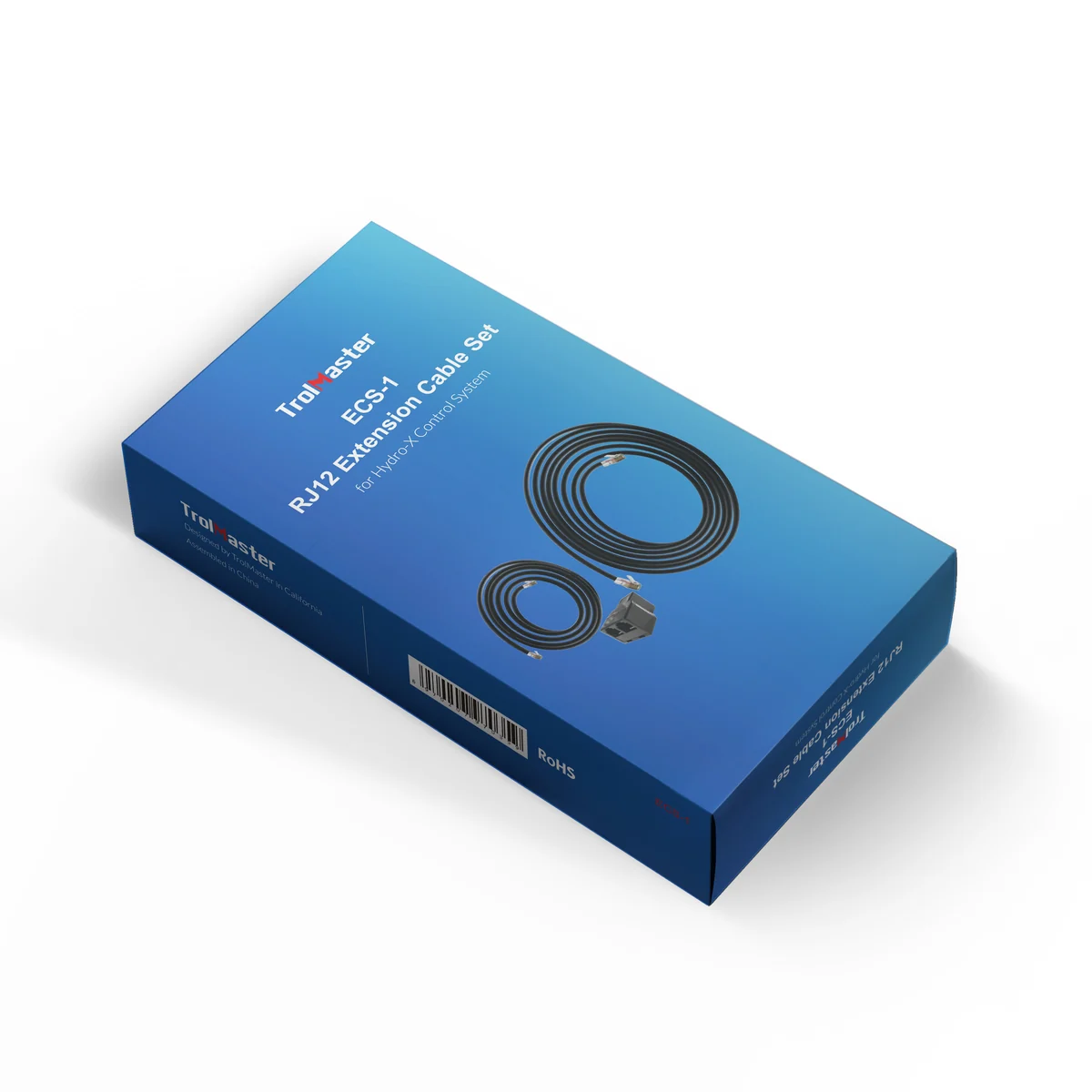

ECS-1RJ12 Extension Cable Set

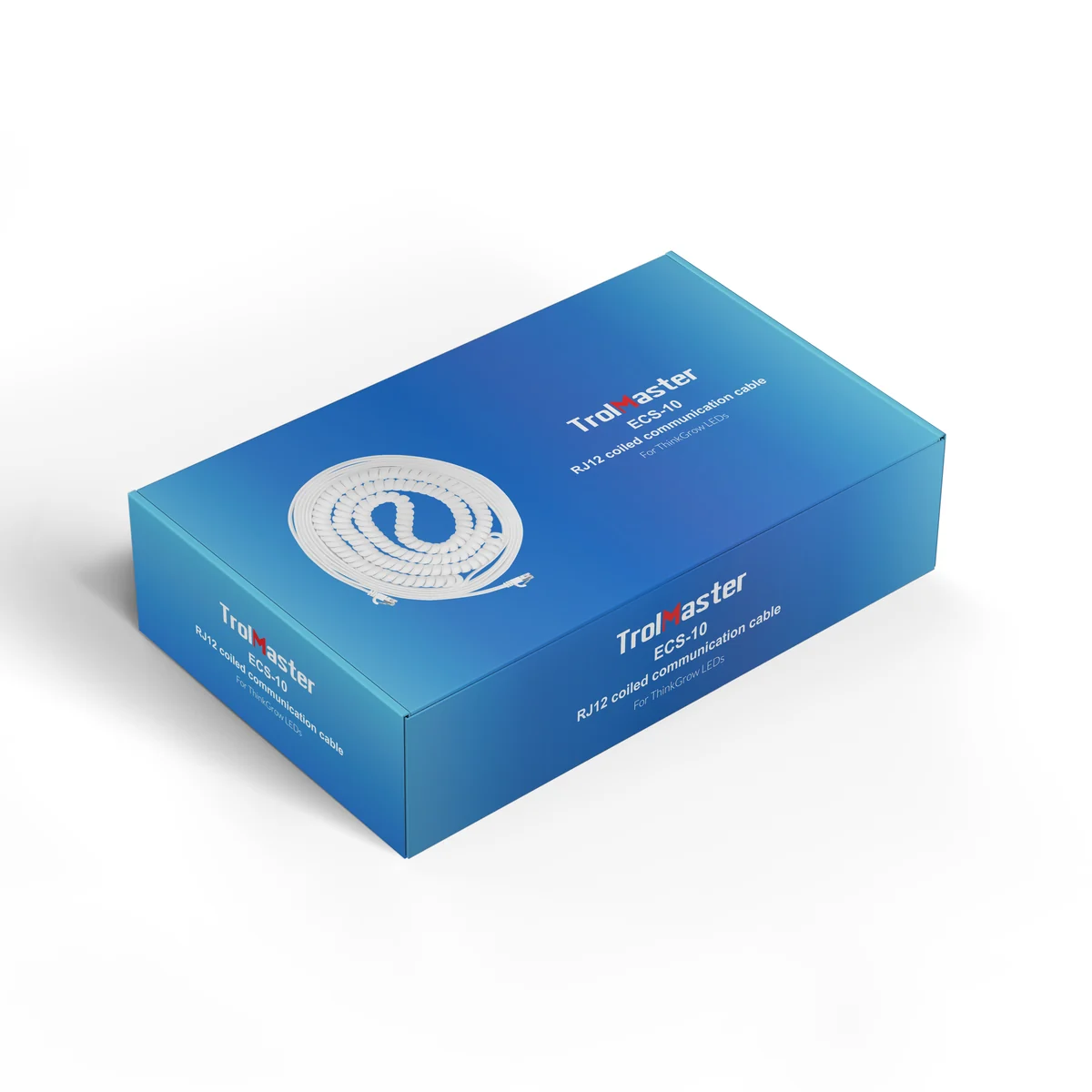

ECS-10RJ12 25' (7.62m) Coiled Communication Cable

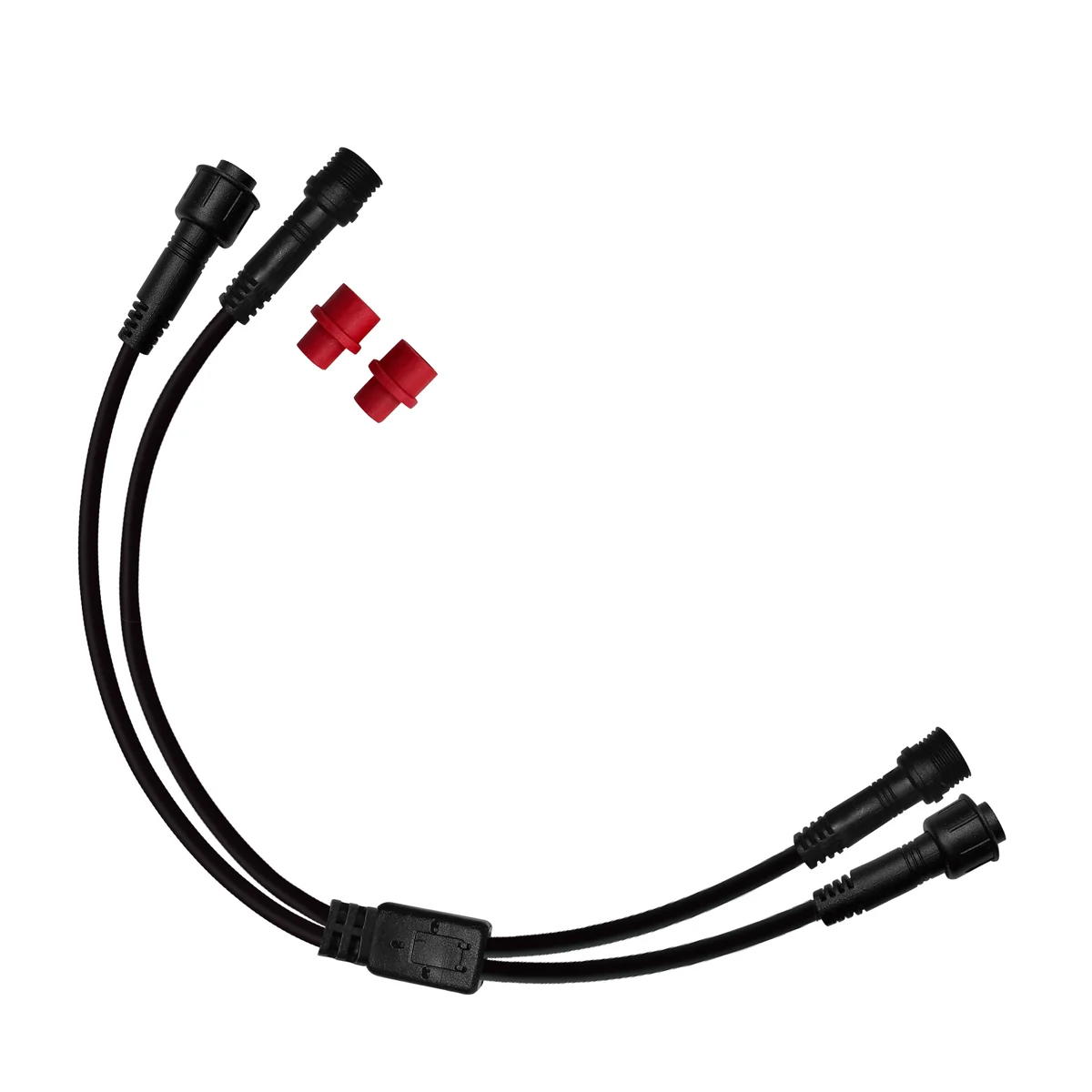

ECS-12TrolMaster 4-Pin Waterproof Splitter Cable

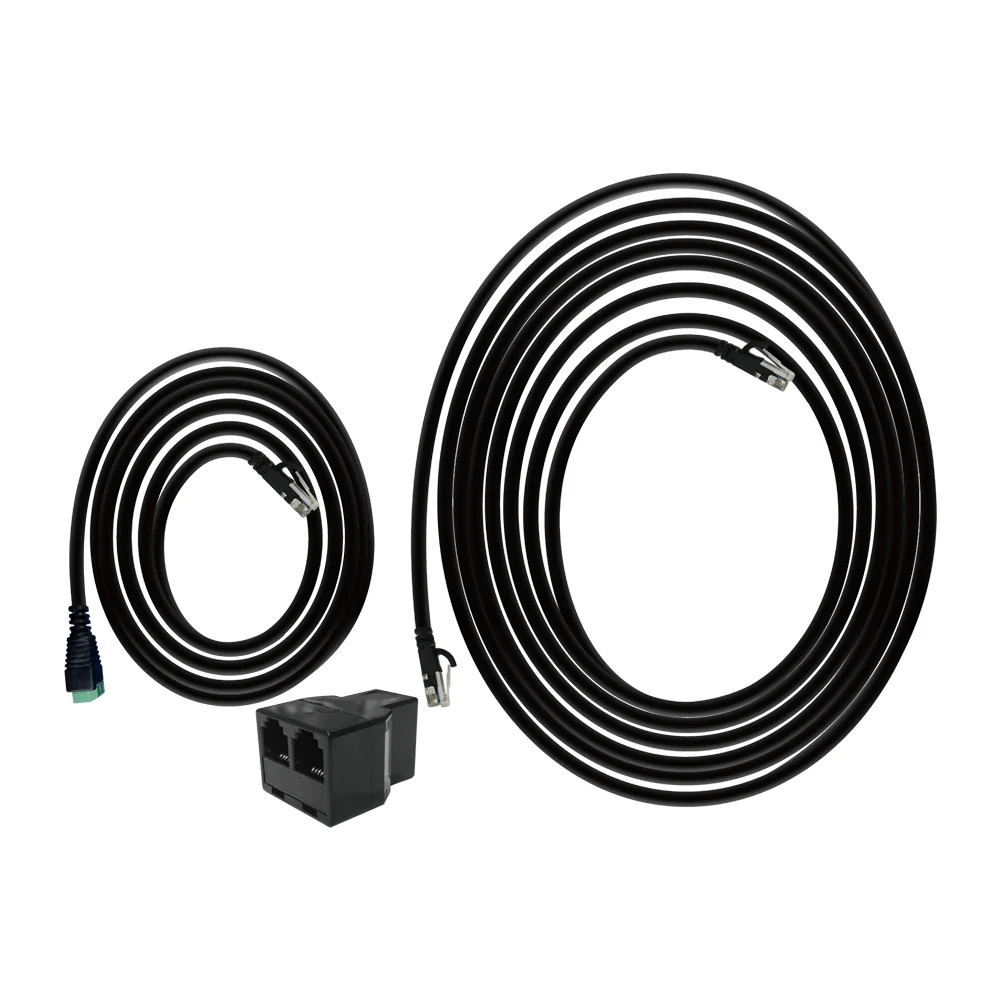

ECS-2RJ12 to Pigtail extension Cable Set

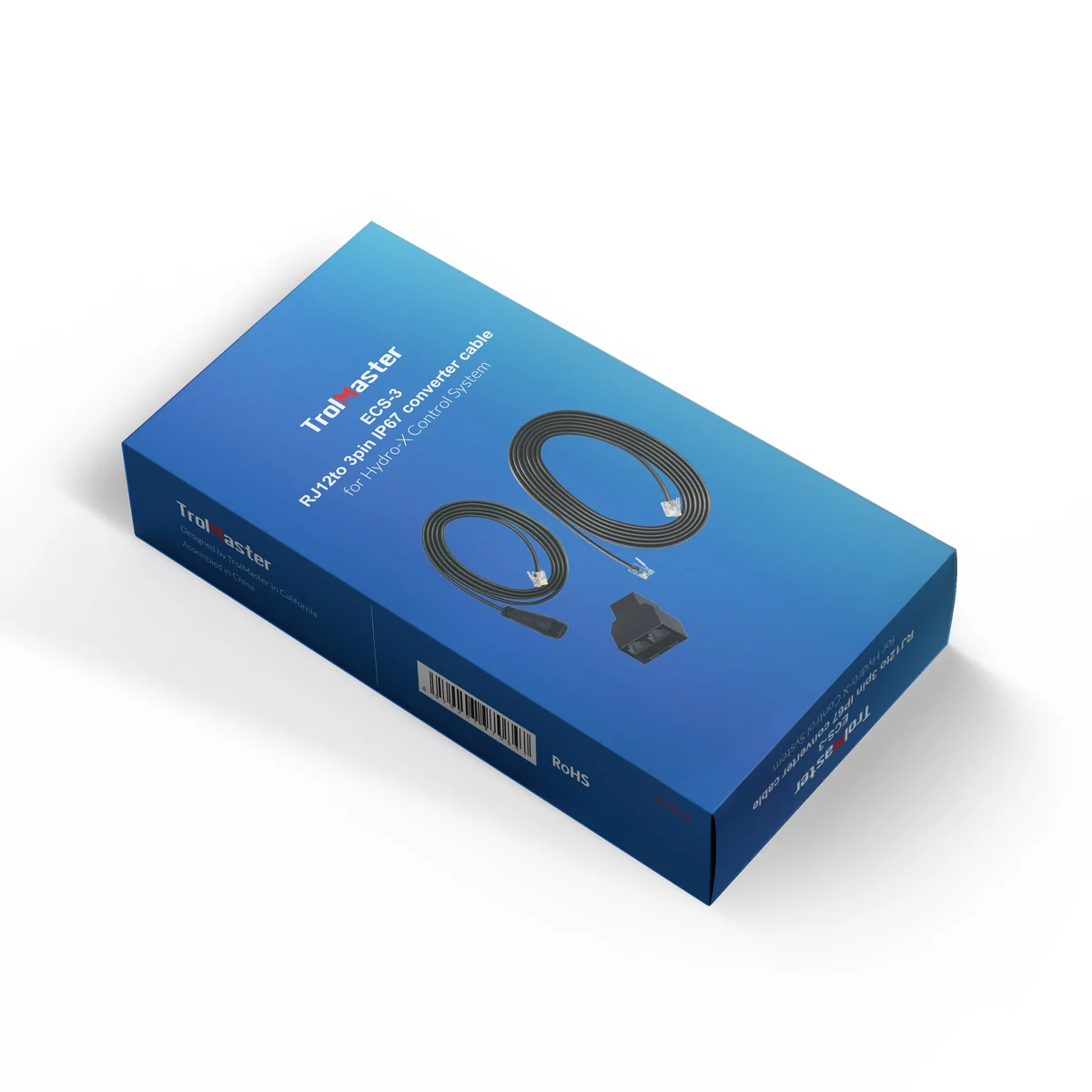

ECS-3RJ12 to Threaded Waterproof Connector Converter Cable

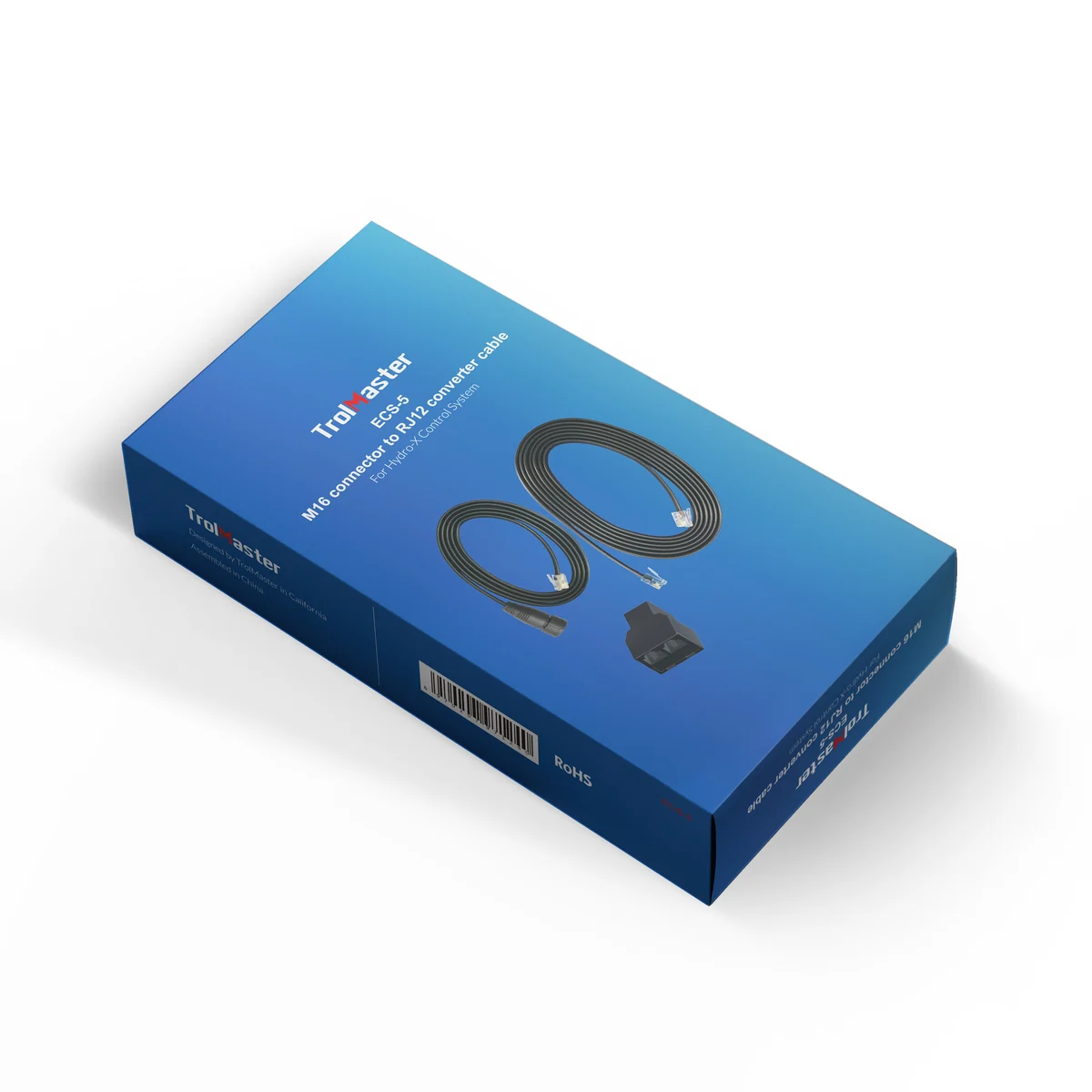

ECS-5RJ12 to PushLock Waterproof Connecter Converter Cable

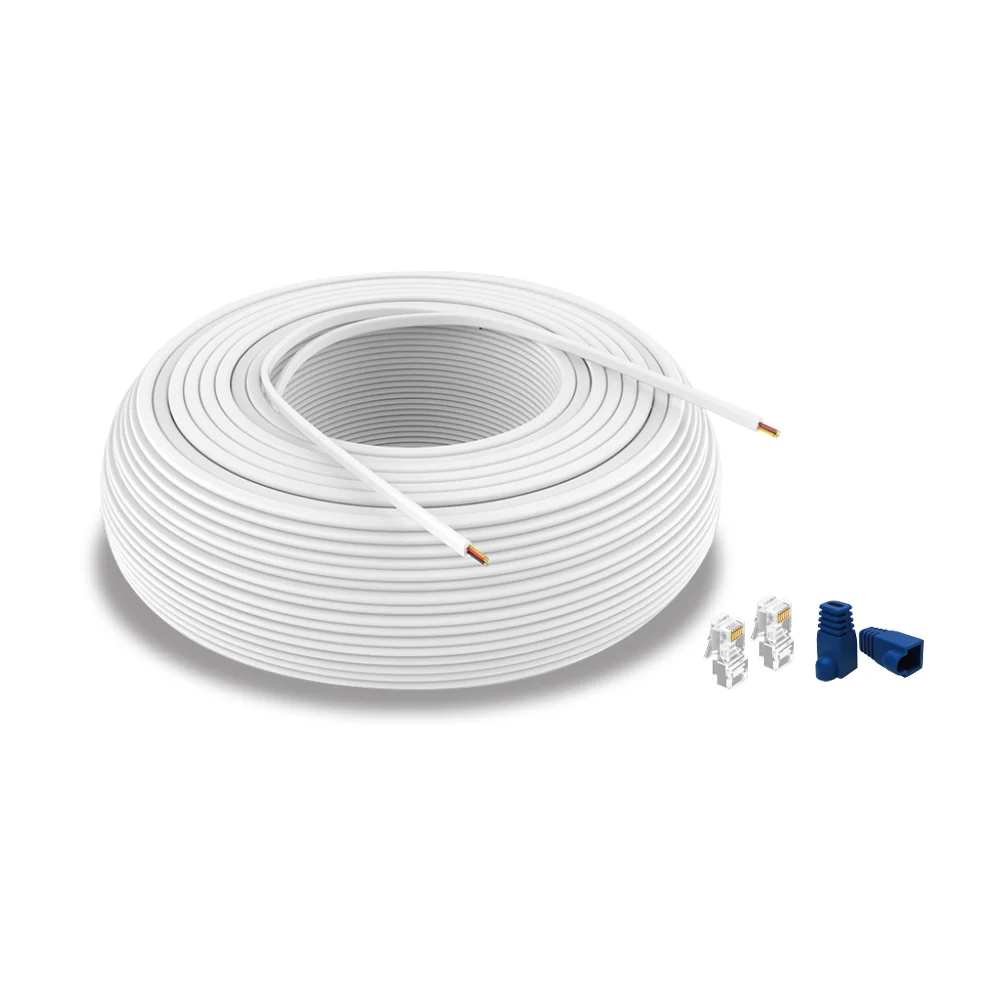

ECS-500500' (152.4m) RJ12 Cable Roll

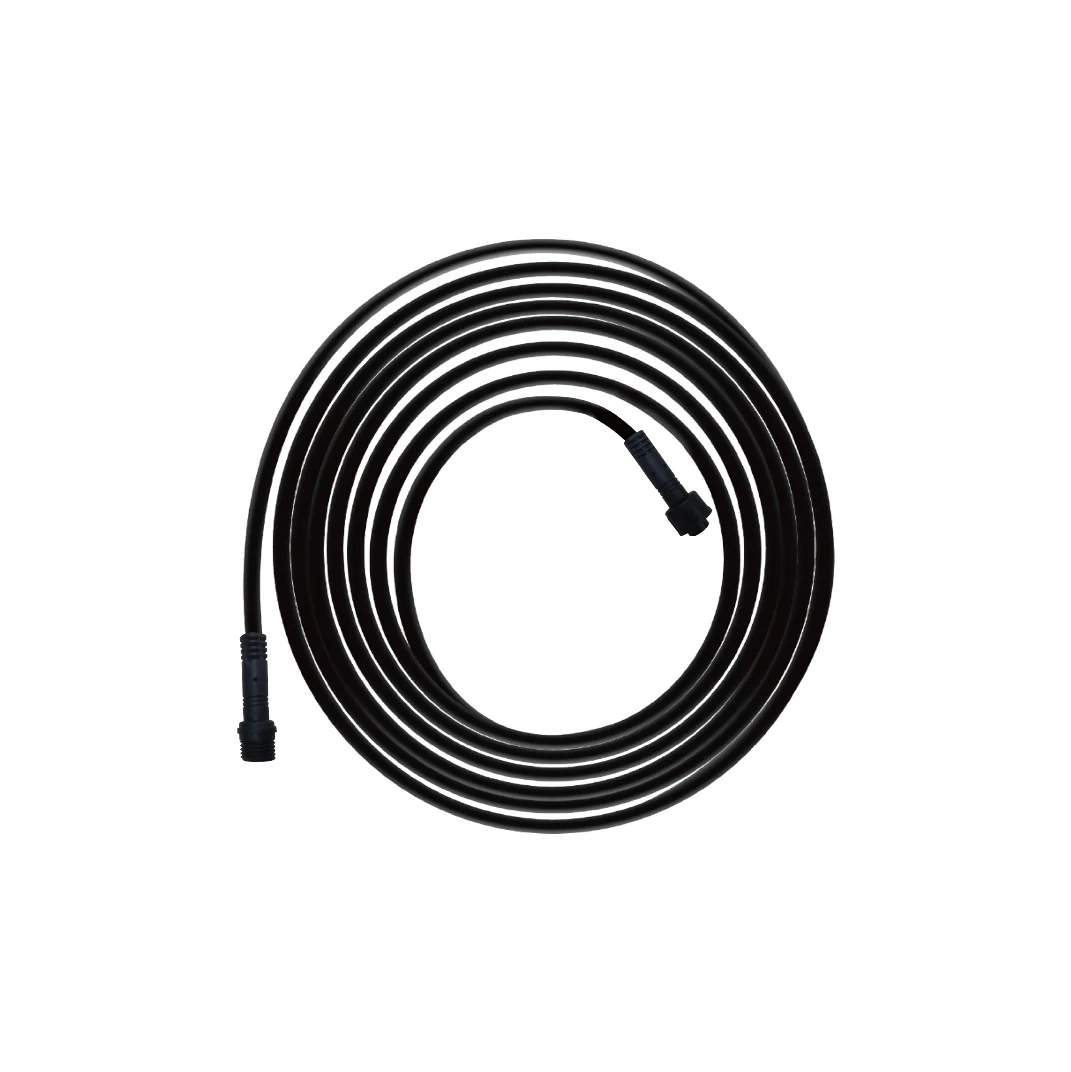

ECS-616' (4.88m) 4-Pins Waterproof Extension Cable

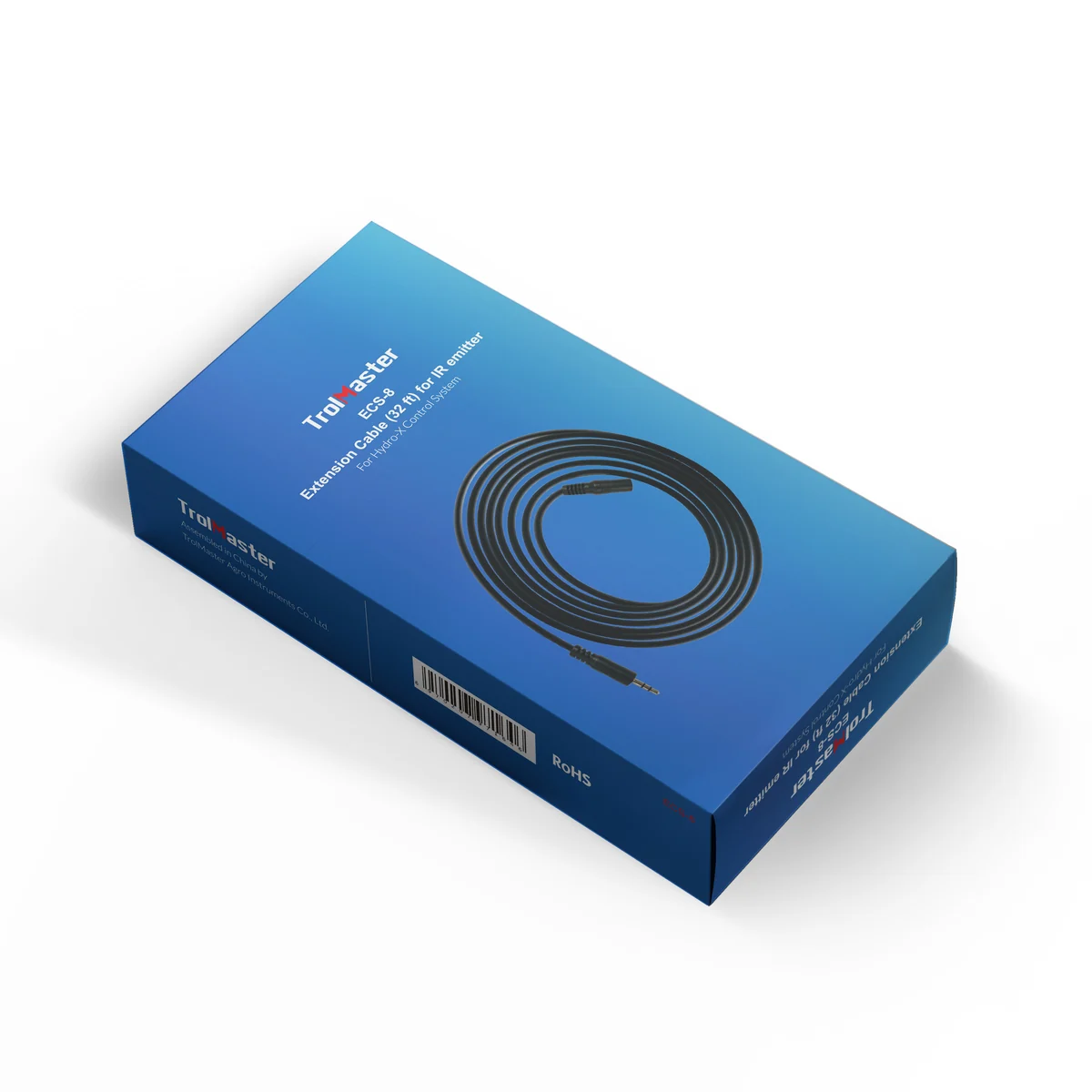

ECS-832' (9.75m) Extension Cable for IR emitter

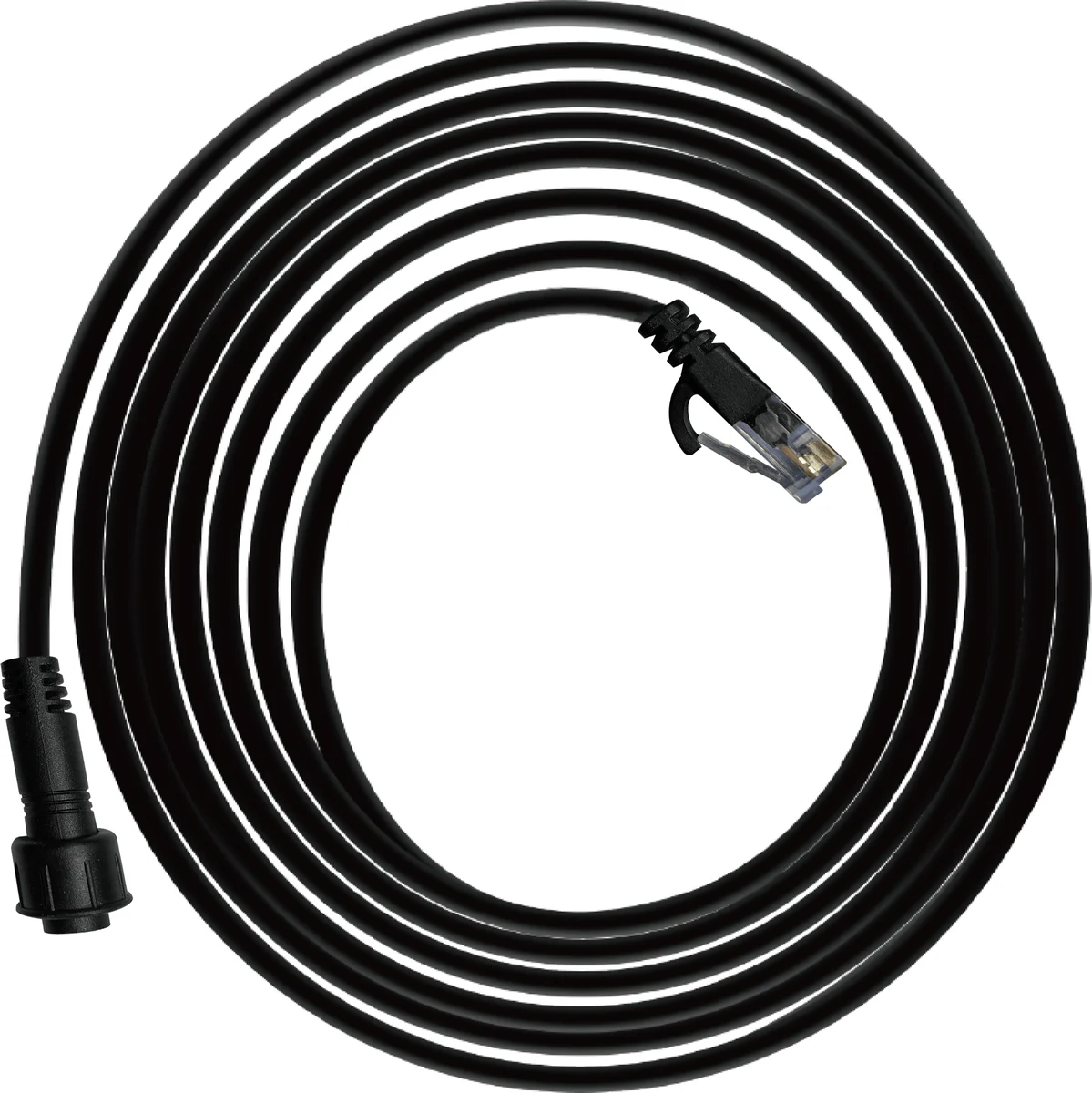

ECS-912' (3.66m) RJ12 to 4-pin IP65 Connecter Cable

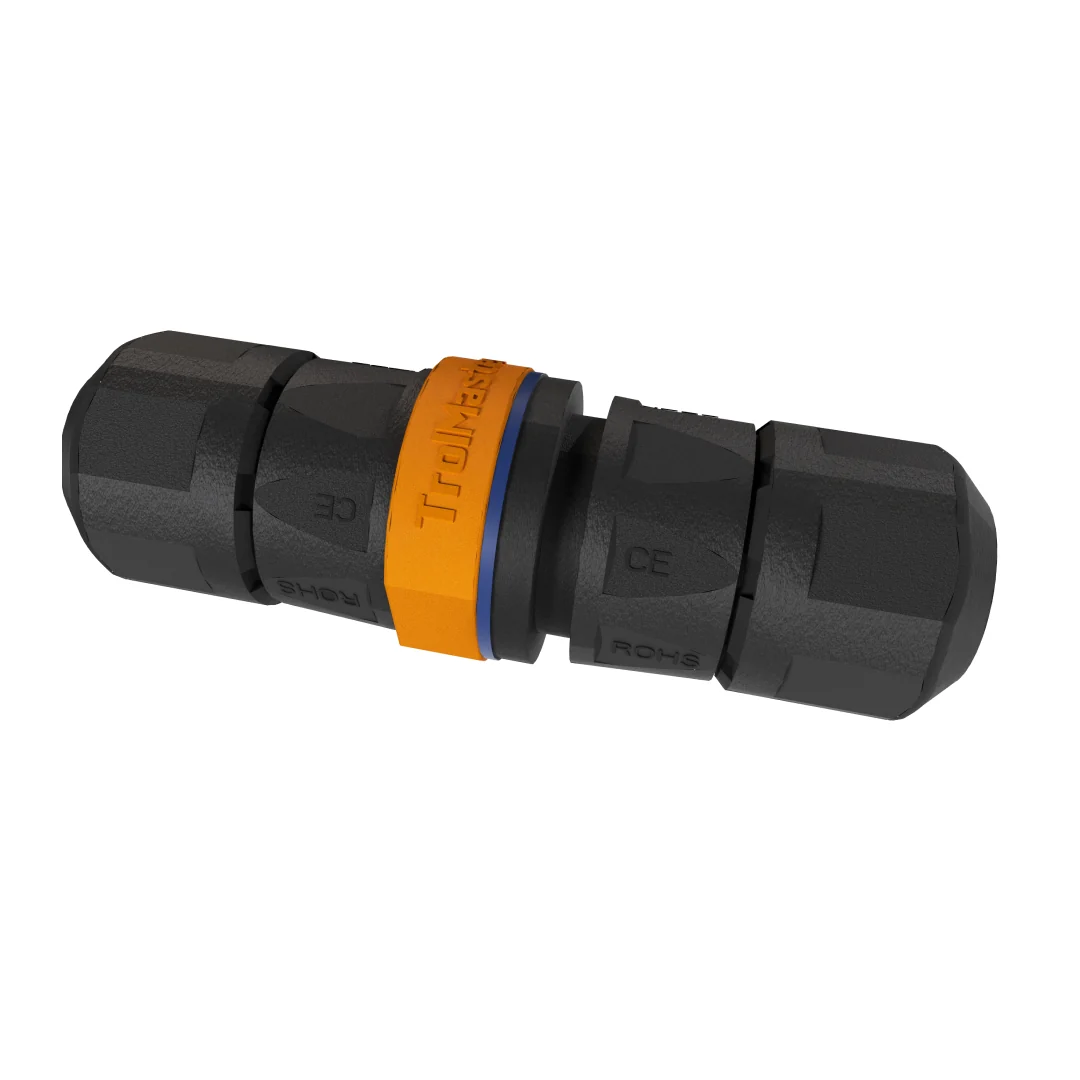

ECW-1RJ12 Waterproof Straight-Through Inline Coupler

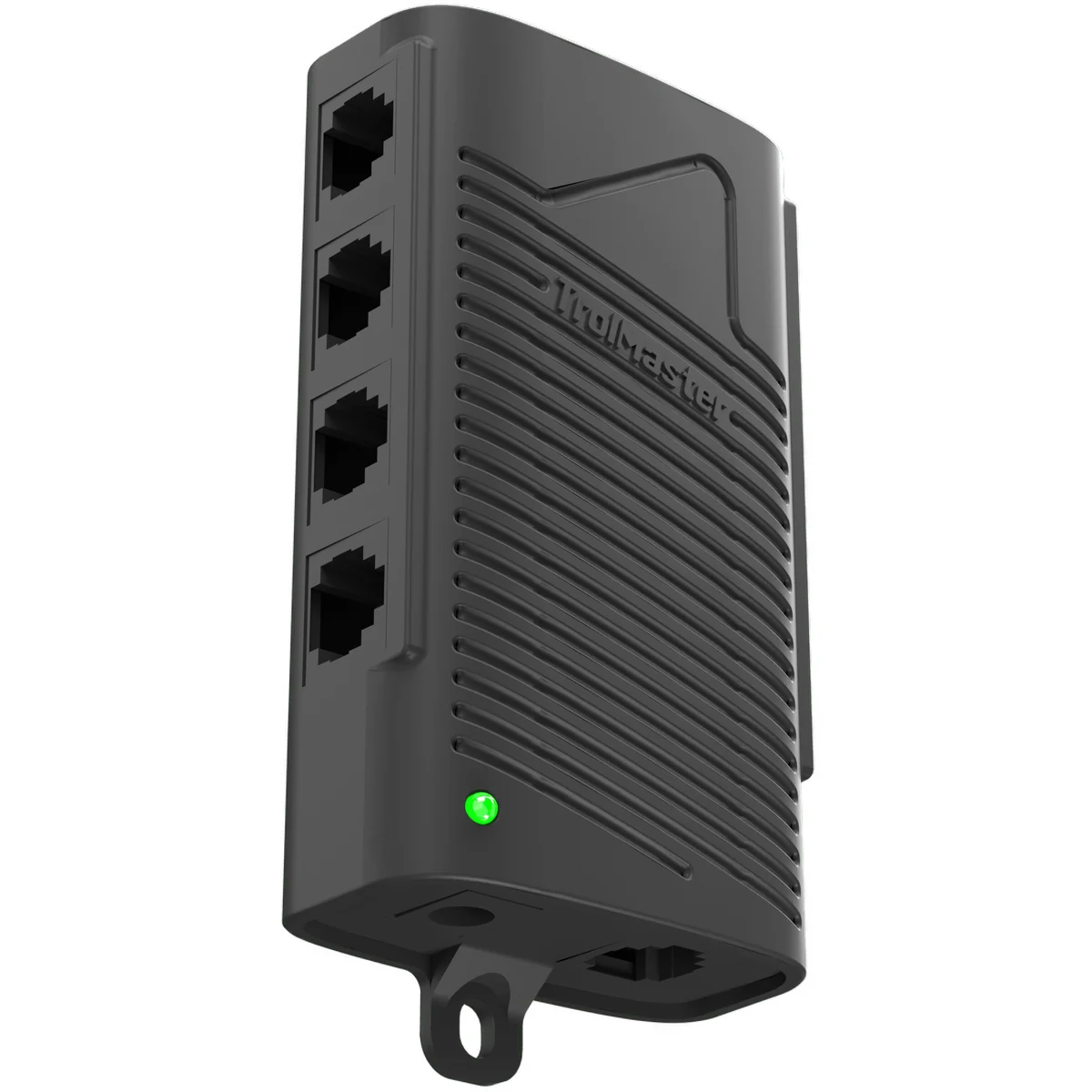

SPH-1RJ12ȢSplitterȢHub with cable set

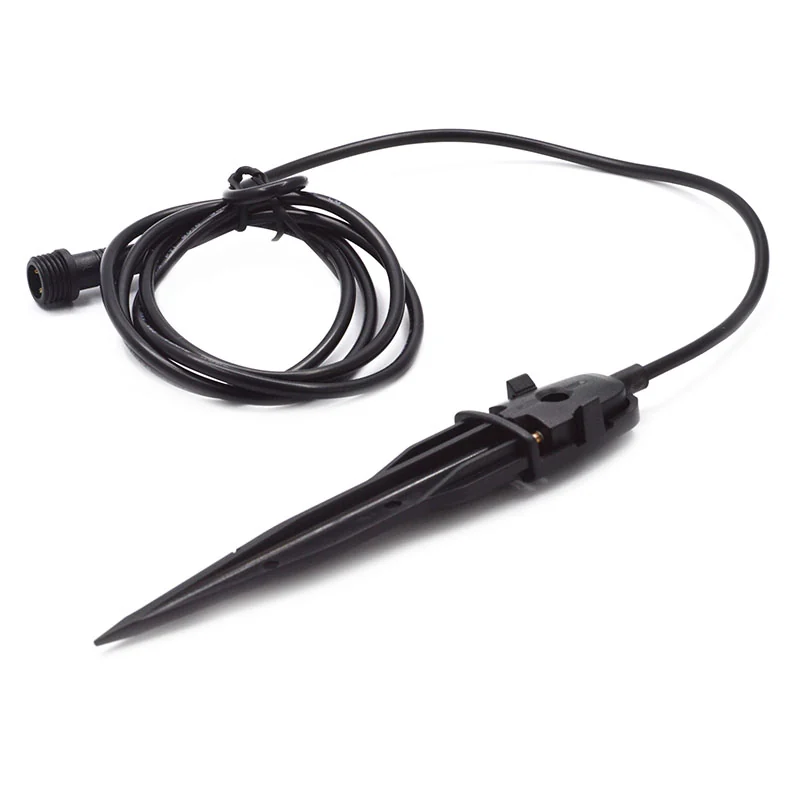

TSS-1Touch Spot + T Split Extension Cable

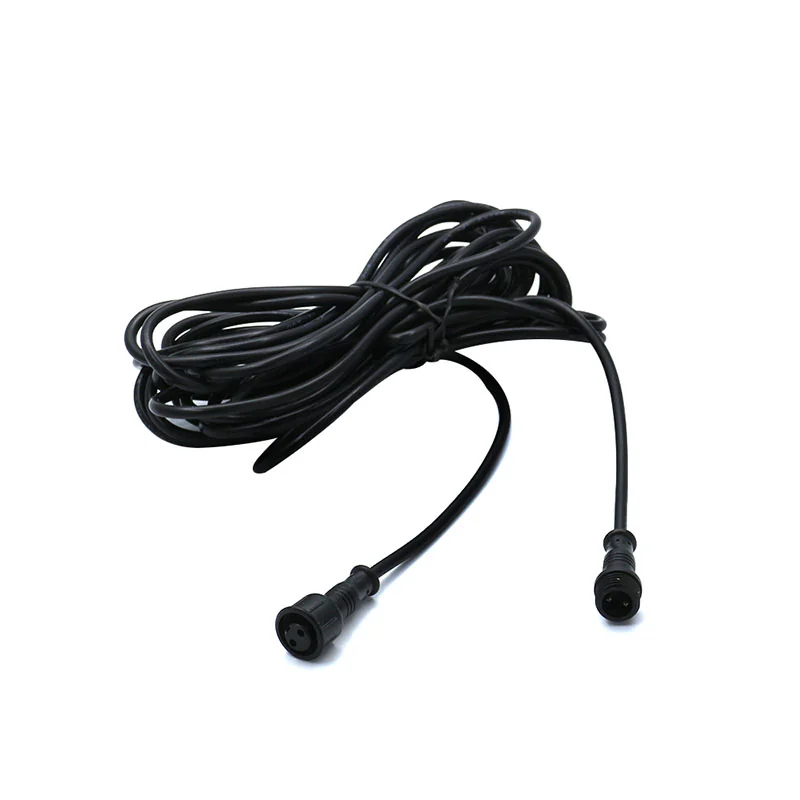

TSS-2Touch Spot 16' Extension Cable

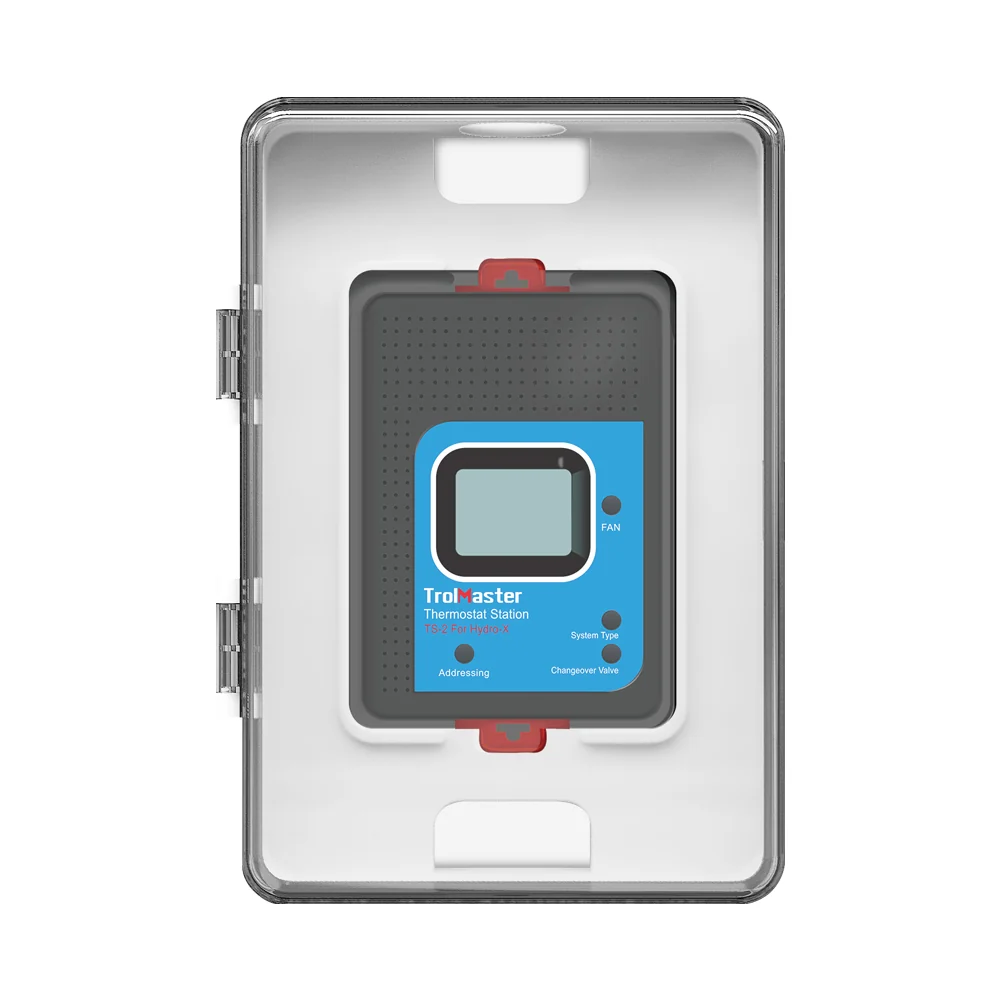

BM-1Weatherproof Box for TS-1, TS-2, HS-1 and ARS-1

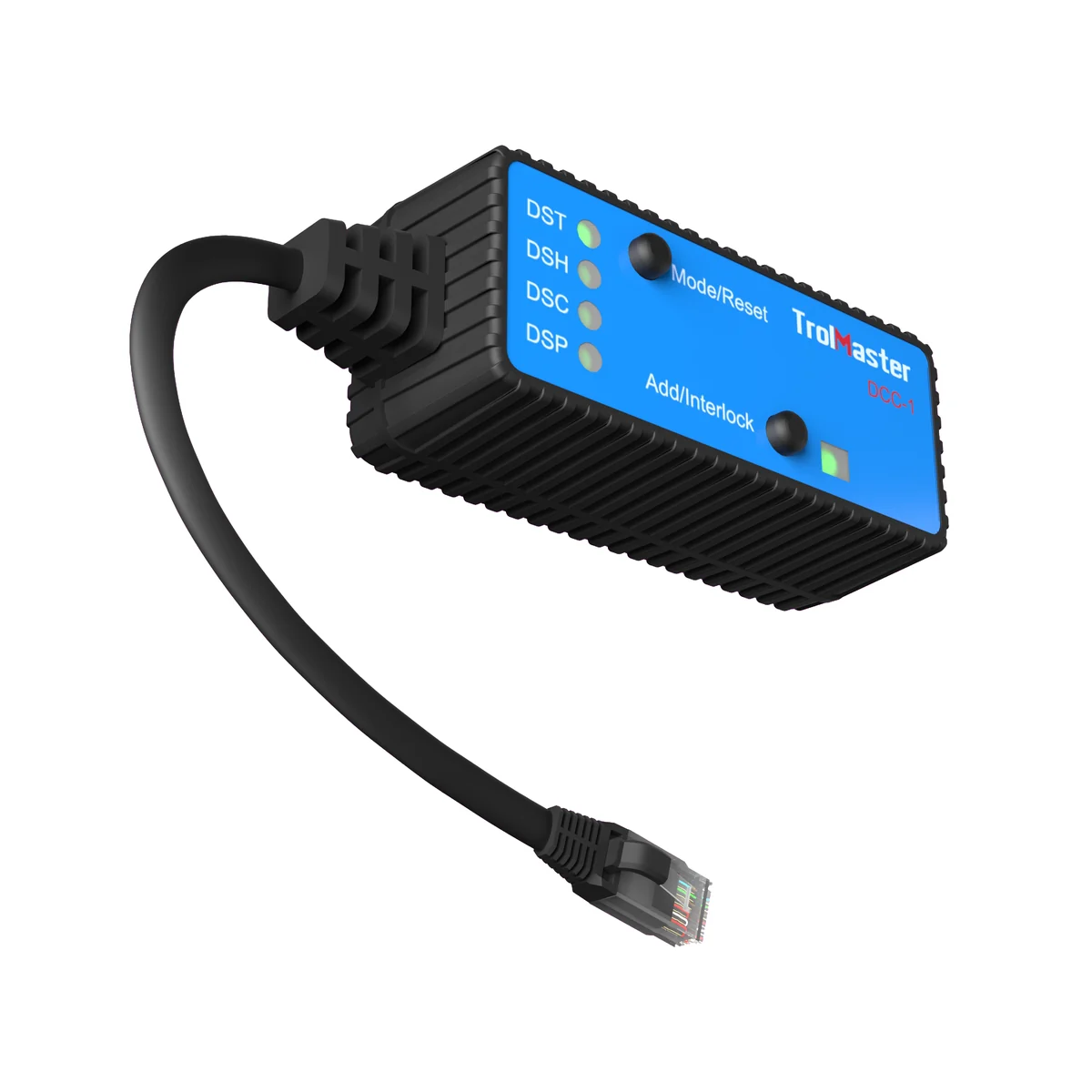

DCC-1Dual Condition Adapter for Hydro-X system

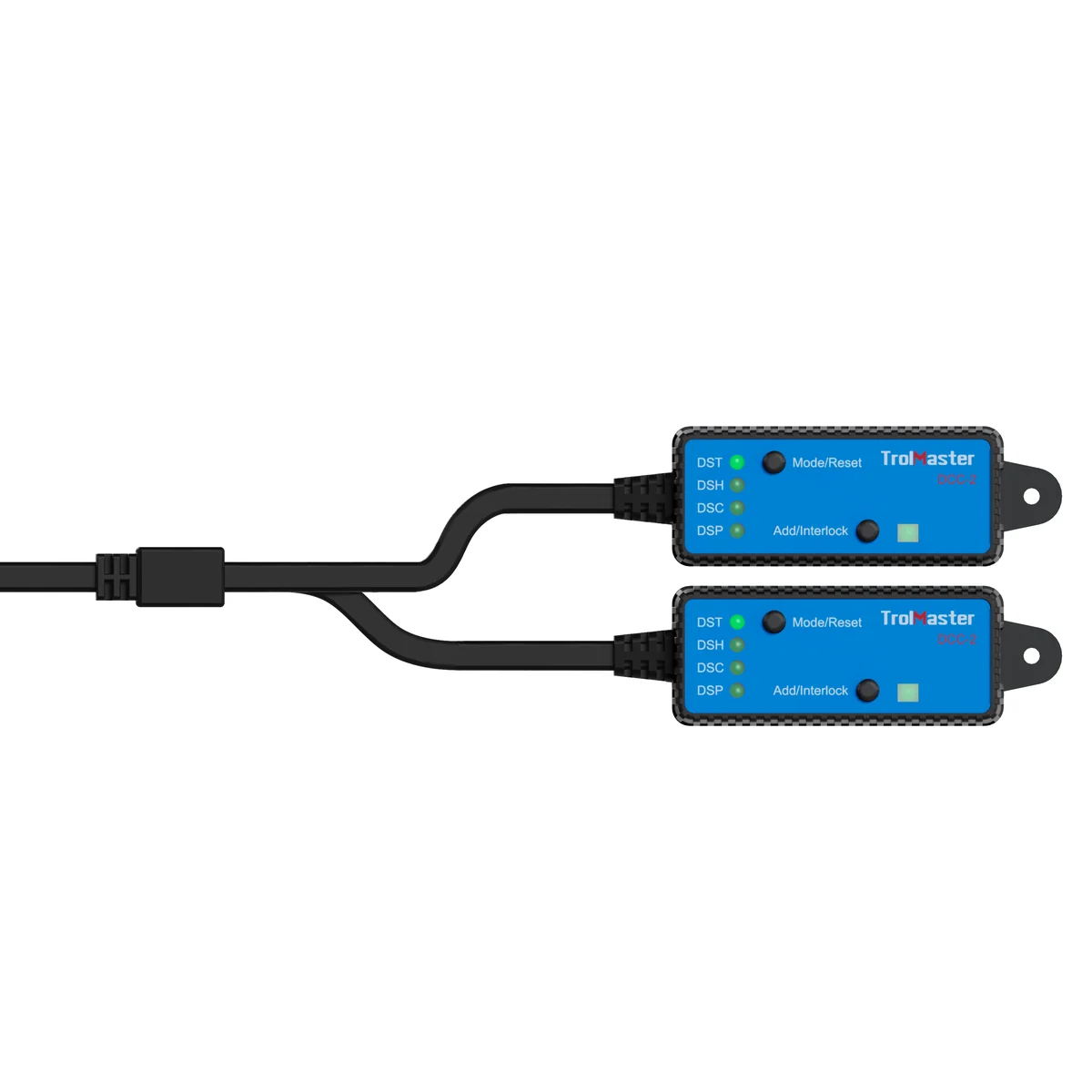

DCC-2Dual System Control Adapter jas

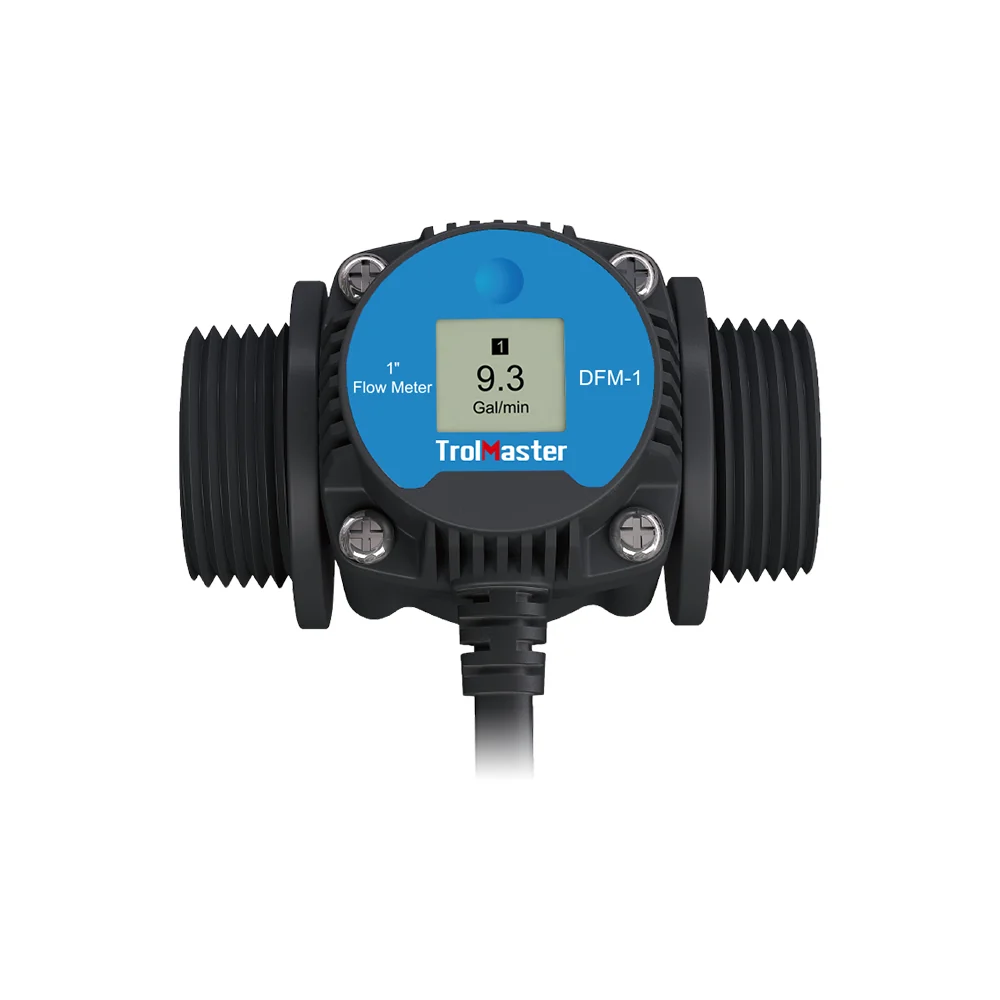

DFM-11" (2.54cm) Digital Flow Meter

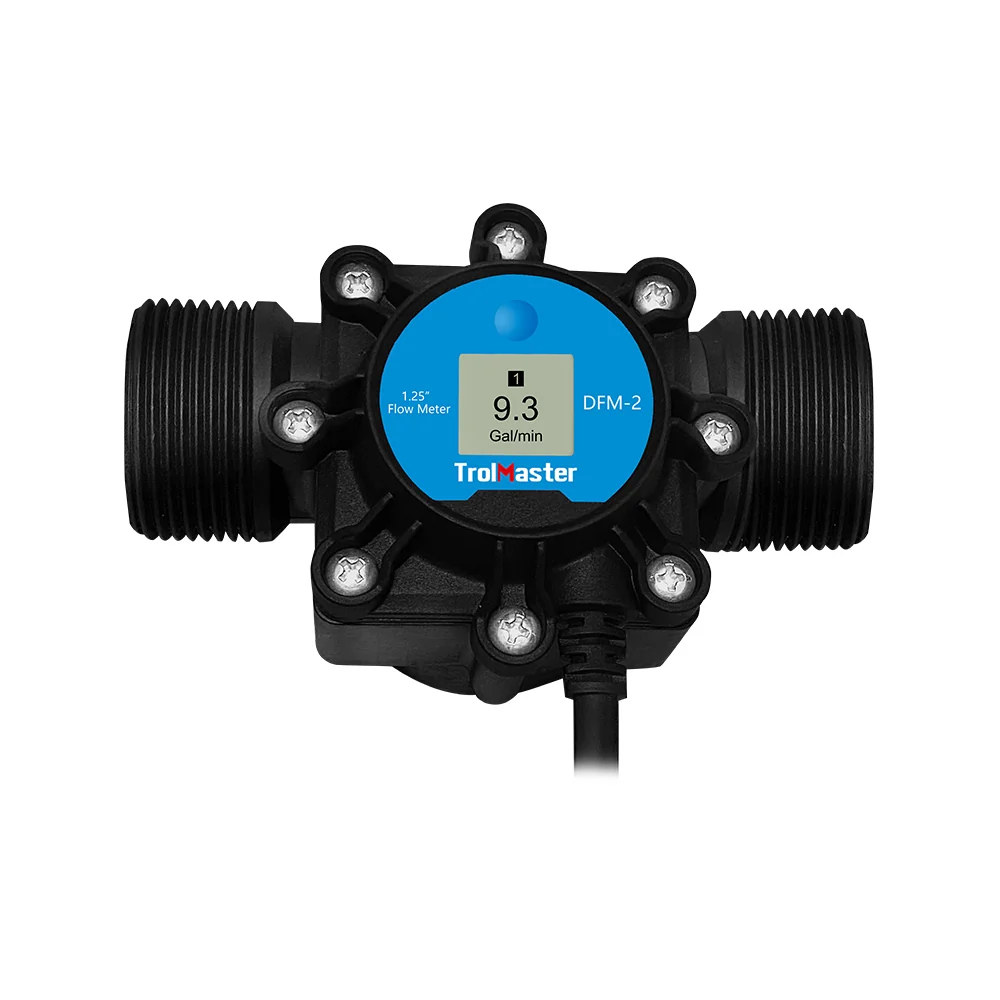

DFM-21.25" (3.17cm) Digital Flow Meter

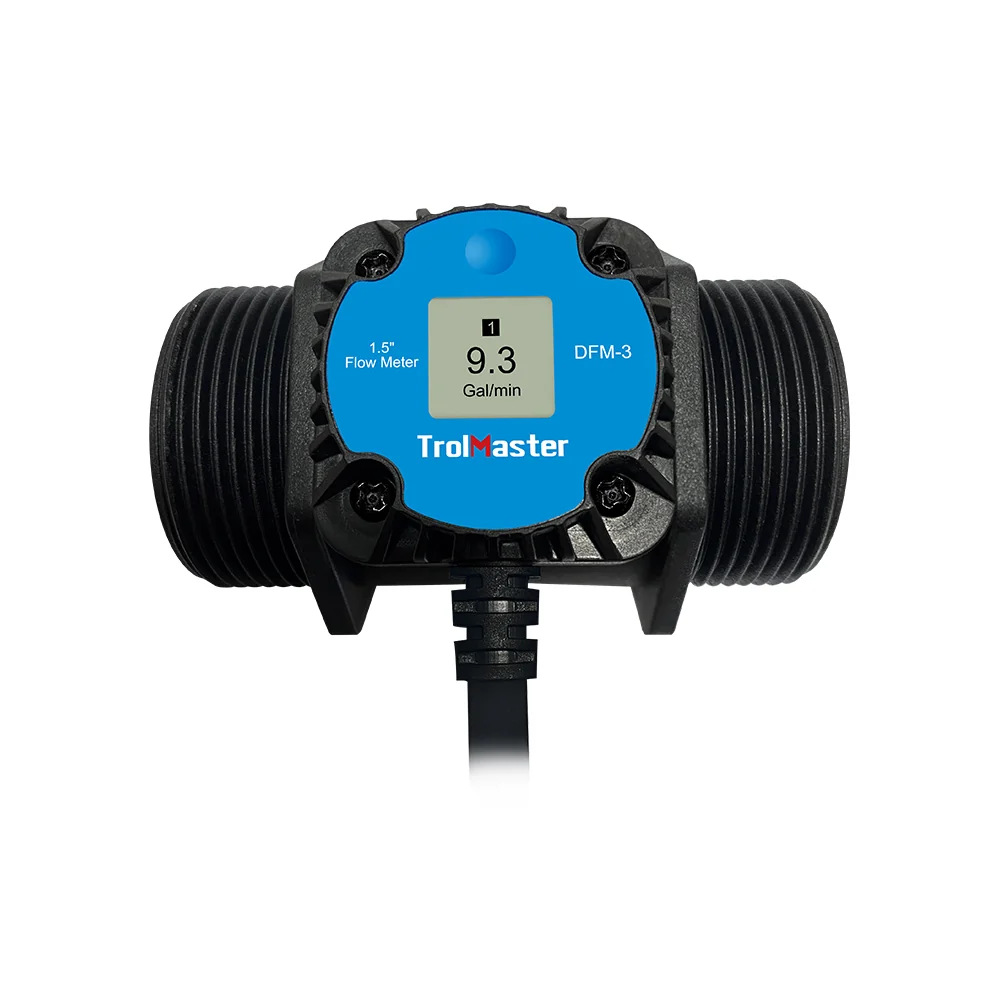

DFM-31.5" (3.81cm) Digital Flow Meter

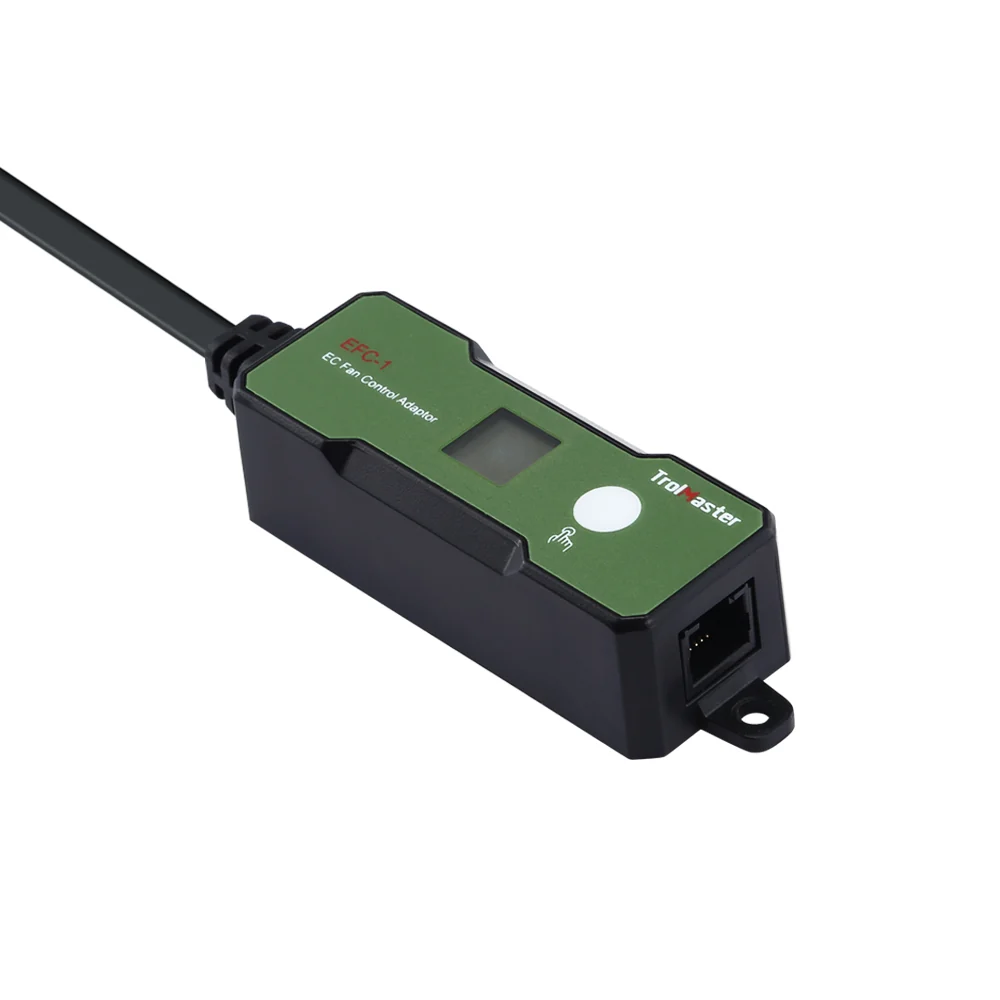

EFC-1EC Fan Control Adapter, for control EC Fan in PWM or 0-10V variable speed

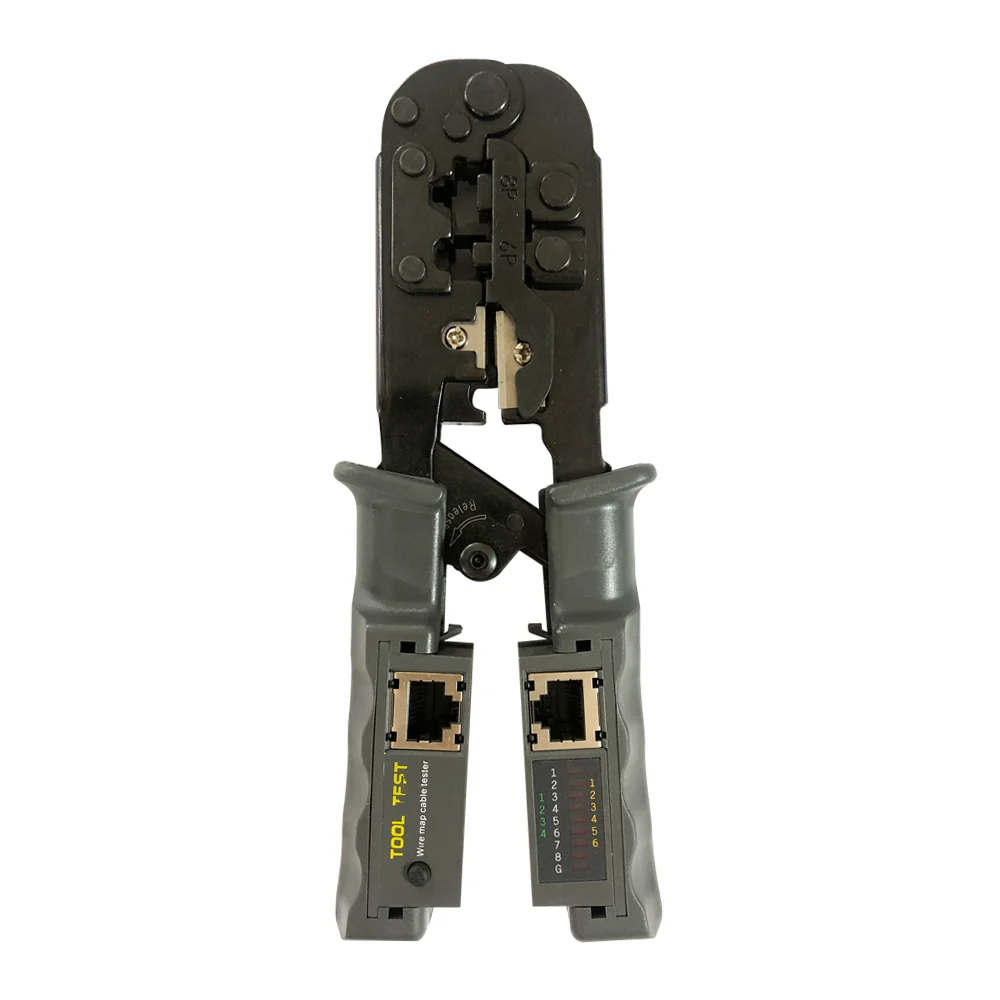

MC-1Multifunction Crimper

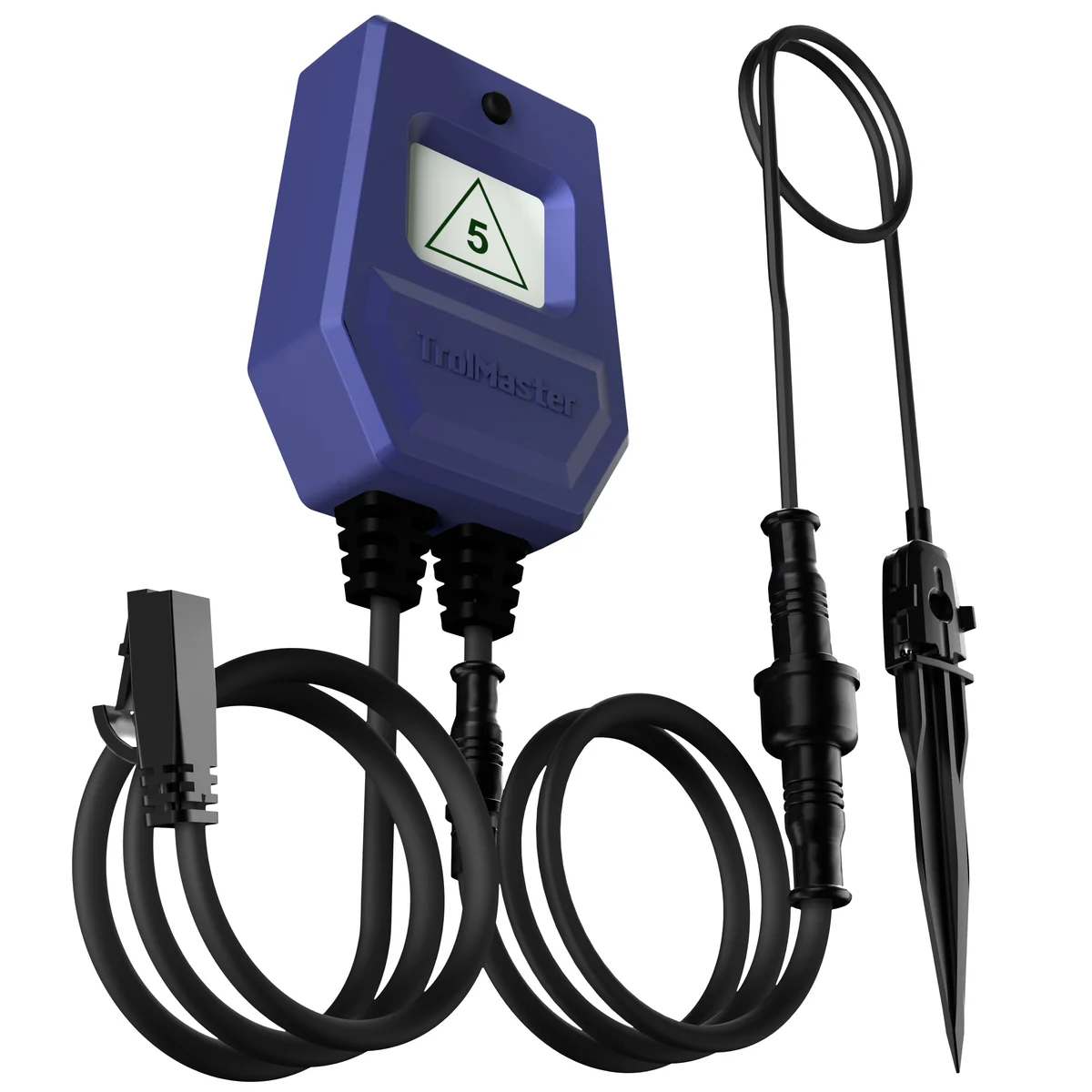

WD-1Water Detector + Touch Spot for watering confirmationPricing isn’t published. Create a Hydro Supply account and your rates appear across the catalogue — order online, track shipments, and reorder in a click.
