Matrix Lighting delivers advanced horticulture lighting solutions engineered for serious growers who demand performance, consistency, and control. Built specifically for commercial cannabis cultivation, Matrix fixtures combine powerful output, optimized spectrum, and high-efficiency design to help operators maximize plant health, yield, and quality from veg through flower.
From LED bars and DE fixtures to spectrum-tunable systems, Matrix is known for dependable build quality, proven thermal management, and real cultivation results—not hype. And with the new Hybrid 1000W, released in March 2026, Matrix is bringing fresh energy to the category with an exciting all-in-one solution that blends the precision of LED technology with the proven punch of HPS, giving growers a powerful new option for uniform light, strong intensity, and next-level performance.
The world's first true HPS+LED hybrid. Combines 560W LED + 40W Far Red + 400W HPS with Liquid Optics cooling and Triple Uniformity Technology.
Datasheet
Unparalleled control and efficiency. Dynamic Spectrum Tuning with Far Red, UV, and Main Spectrum channels — all at constant full power. Direct 1:1 HPS replacement.
Datasheet
The gold standard in HPS lighting. Over 98% reflective aluminum, dimmable from 50-115%, concentrated red spectrum for flowering. Integrates with VEGA LED in checkerboard layouts.
Datasheet
Blue-rich spectrum for vegetative growth. Samsung 301H EVO diodes. Promotes tight internodal spacing, strong roots, and vigorous structure.
Datasheet
Samsung 301H EVO + high-efficiency red diodes. Rich red and blue spectrum for all-stage growth from germination through flowering.
Datasheet
Highest output in the M Series. Samsung 301H EVO diodes with maximum photon delivery for large commercial flower rooms.
Datasheet
Dynamic spectrum tuning with 4 customizable modes. Far Red, UV, and Main Spectrum channels at constant full power. Universal 0-10V compatible. 43% operational savings.
Datasheet
Premium tunable model. Four customizable spectrum options for growth stage optimization. Intelligent Global Control for 160+ lights with app integration.
Datasheet
730nm far-red supplemental bar. Modular add-on for crop steering, flowering control, and End of Day treatments. Daisy chain up to 92 bars.
Datasheet
395nm UV-A supplement for stronger genetics expression — improved structure, richer coloration, louder aromas, denser flower formation.
Datasheet
Outperforms T5 fluorescents. Full spectrum with rich blue light for optimal cloning and propagation. ETL/CE/UL8800 certified.
Linear LED for vertical racks and targeted veg lighting. Shadow-free illumination with 80% red spectrum. 0-10V batch dimming control.
Datasheet
2-channel precision controller. Automate 80-100 fixtures per channel with 7 dimming levels, custom presets, and RJ12 daisy-chain connectivity.

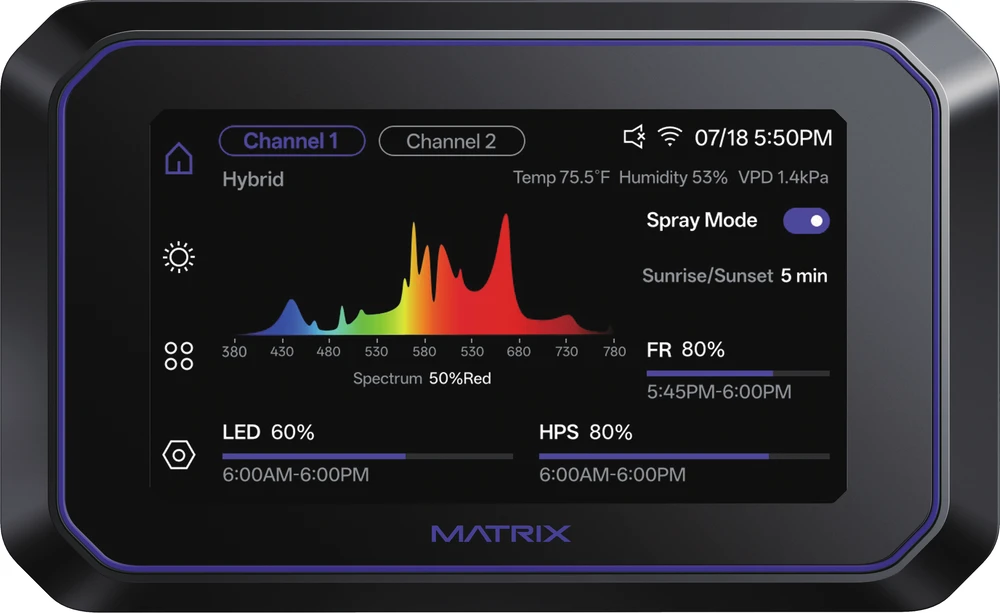

Dual-channel smart controller with a full-color touchscreen — up to 100 fixtures per channel, spectrum & far-red tuning, plus live temp, humidity, VPD & CO₂ monitoring with auto-dim protection.
Matrix is a natively supported protocol on the Growlink digital lightLINK, so you can drive intensity, spectrum, far-red, and UV on Hybrid (3-channel) and VEGA / M Series Dyna (4-channel) fixtures straight from Growlink OS — alongside your climate and irrigation, with sunrise/sunset ramping and high-heat dimming. See the wiring & setup guide →
Sealed LED cooling system for dust protection, precise thermal management, and extended diode lifespan.
Constant power across main spectrum while independently adjusting Far Red, UV, and Main channels.
Control 160+ lights simultaneously with programmable timers, dimming, and app integration.
Industry-leading diodes delivering up to 3.2 μmol/J efficacy with 54,000+ hour lifespan.
Power cords, daisy-chain cables, sensors and replacement lamps. Quote these alongside your fixtures — voltage and cord type depend on your service, so tell us the room and we will spec the run.
| Item | SKU |
|---|---|
| Matrix 120V 10ft right-angle M19 power cord | 10-010704-354 |
| Matrix 120V 10ft straight M19 power cord | 10-010704-019 |
| Matrix 240V 10ft right-angle M19 power cord | 10-010704-284 |
| Matrix 240V 10ft straight M19 power cord | 10-010704-277 |
| Matrix 277V 10ft right-angle M19 power cord | 10-010704-297 |
| Matrix 277V 10ft straight M19 power cord | 10-010704-260 |
| Matrix LTL 10ft 240V Power Cord | 10-010704-295 |
| Matrix LTL 10ft 277V Power Cord | 10-010704-305 |
| Item | SKU |
|---|---|
| 3' Extension Cord for Clone Bars | 10-010704-032 |
| 3' Extension Cord for FR/UV Bars | 10-010704-345 |
| Matrix M12 Daisy Chain/A3 - 10ft | 10-010704-374 |
| Matrix M12 Daisy Chain/A3 - 15ft | 10-010704-375 |
| Matrix M12 Daisy Chain/A4 - 10ft | 10-010704-376 |
| Matrix M12 Daisy Chain/A4 - 15FT | 10-010704-377 |
| Matrix M12 Extension Cable 3pin/C3 - 10ft | 10-010704-408 |
| Matrix M12 Extension Cable 4pin/C4 - 10ft | 10-010704-407 |
| Matrix M12 to RJ11 Cable/B3 - 10ft | 10-010704-378 |
| Matrix M12 to RJ12 Cable/B4 - 10ft | 10-010704-381 |
| matrix M12 to RJ11 cable / B4 | 10-010704-381 |
| Item | SKU |
|---|---|
| Matrix DE HPS 1000W Lamp | 10-010201-024 |
| Matrix DE HPS 400W Lamp | 10-010201-025 |
| Item | SKU |
|---|---|
| Matrix DE Reflector | 10-010508-005 |
| Item | SKU |
|---|---|
| Matrix Dyna Control Adapter | 10-010701-067 |
| Item | SKU |
|---|---|
| Matrix Temperature & Humidity Sensor - RJ12 | 10-010704-385 |
Pricing isn’t published. Create a Hydro Supply account and your rates appear across the catalogue — order online, track shipments, and reorder in a click.
